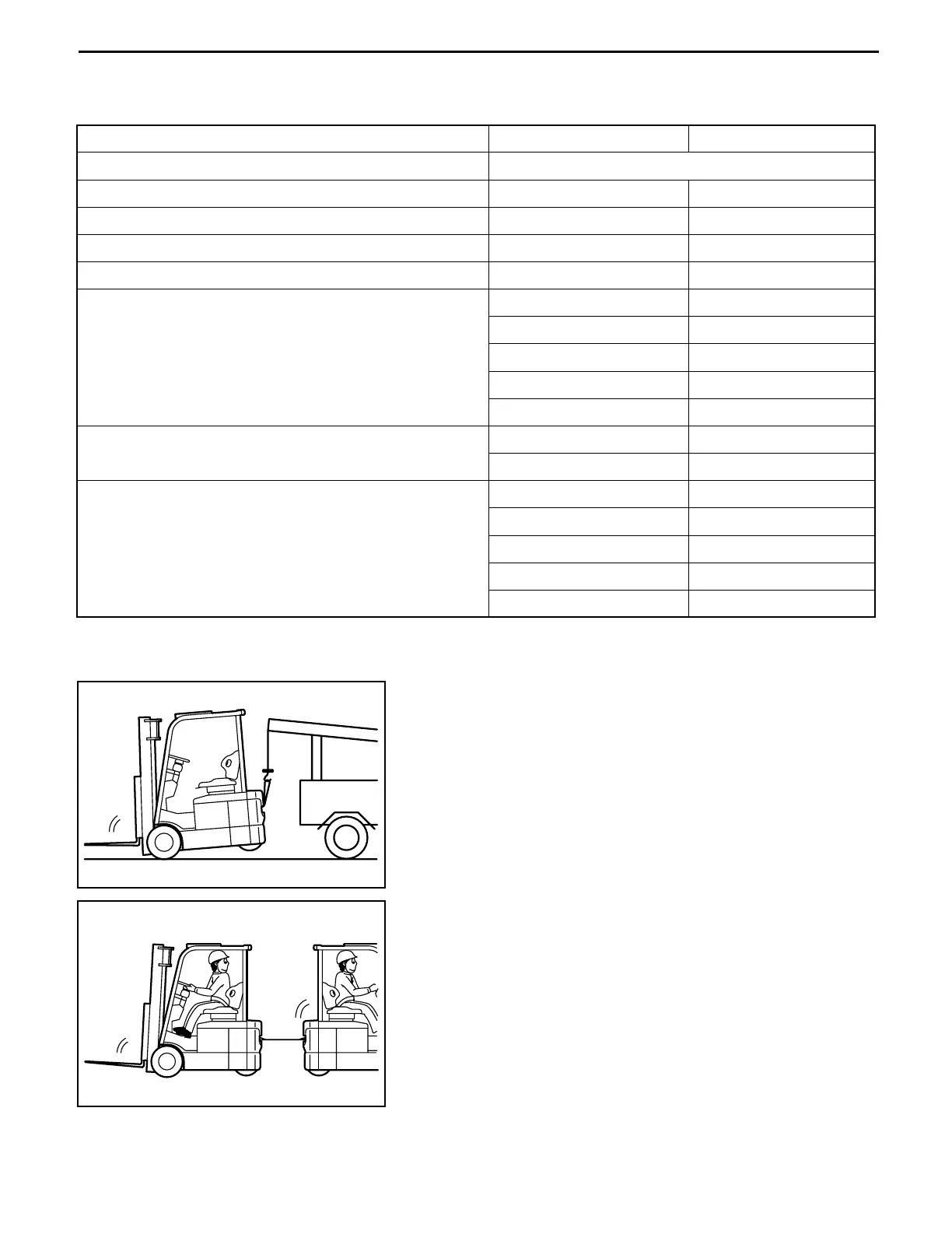

MEMBER WEIGHTS
Unit: kg (lbs)
TOWING THE VEHICLE
Note the cautions below when towing the vehicle.
1. Lift the rear wheels for towing
2. The traveling speed when towing must not exceed the
maximum traveling speed of the forklift.
3. Before starting towing, always set the key switch to OFF
and the direction switch to the neutral position.
4. Before towing, either remove the fork or take action to
prevent the fork from coming into contact with the
ground due to bouncing.
Member Vehicle model Weight
BATTERY ASSY See P1-2
Drive motor ASSY All Models Approx. 37 (82)
Pump motor ASSY All Models Approx. 31 (68)
Front axle ASSY W/ drive motor ASSY All Models Approx. 122 (269)
Rear axle ASSY W/ rear axle cylinder ASSY All Models Approx. 45 (99)
Counterweight
7FBE10 Approx. 405 (893)
7FBE13 Approx. 598 (1319)
7FBE15 Approx. 697 (1537)
7FBE18 Approx. 853 (1881)
7FBE20 Approx. 1040 (2293)
Mast ASSY W/ lift bracket (W/ lift cylinder, L/ fork,
Lifting height 3000mm, V mast)
7FBE10 to 7FBE18 330 (730)
7FBE20 400 (880)
Vehicle weight
7FBE10 2225 (4906)
7FBE13 2425 (5347)
7FBE15 2685 (5920)
7FBE18 2840 (6262)
7FBE20 3155 (6957)
