TP-Link Archer C64 User Manual

43
Chapter 10 NAT Forwarding

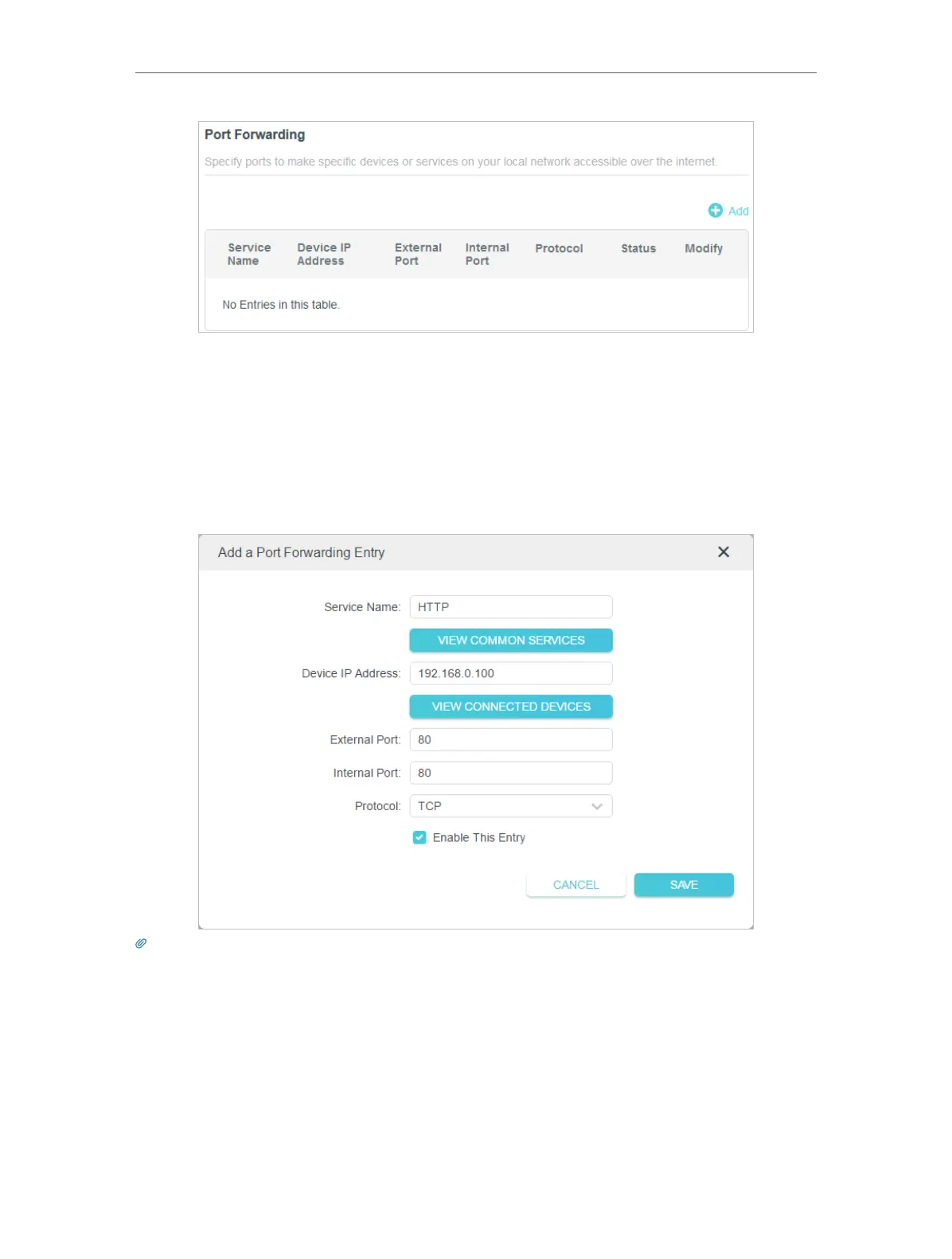

5. Click VIEW COMMON SERVICES and select HTTP. The External Port, Internal Port
and Protocol will be automatically filled in.
6. Click VIEW CONNECTED DEVICES and select your home PC. The Device IP
Address will be automatically filled in. Or enter the PC’s IP address manually in the
Device IP Address field.
7. Click SAVE .
Tips:
• It is recommended to keep the default settings of Internal Port and Protocol if you are not clear about which port and
protocol to use.
• If the service you want to use is not in the common services list, you can enter the corresponding parameters
manually. You should verify the port number that the service needs.
• You can add multiple port forwarding rules if you want to provide several services in a router. Please note that the
External Port should not be overlapped.
Done!
Users on the internet can enter http:// WAN IP (in this example: http:// 218.18.232.154)
to visit your personal website.

TP-Link Archer C64 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Firewall security	SPI
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Supported network protocols	IPv4, IPv6
Networking standards	IEEE 802.1x
Receiver sensitivity	5 GHz: 11a 6Mbps:-95dBm 11a 54Mbps:-77dBm 11ac VHT20 MCS8:-71dBm 11ac VHT40 MCS9:-67dBm 11ac VHT80 MCS9:-63dBm 2.4 GHz: 11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT20 MCS7:-77dBm 11n HT40 MCS7:-74dBm 11ac VHT20 MCS8:-73dBm 11ac VHT40 MCS9:-68dBm
Ethernet LAN interface type	Gigabit Ethernet
Certification	CE, RoHS
Processor frequency	1200 MHz
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Product type	Tabletop router
Product color	Black
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1200 Mbit/s
WLAN data transfer rate (first band)	400 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Transmit power	CE: \u003C20dBm(2.4 GHz), \u003C23dBm(5.15 GHz~5.25 GHz) FCC: \u003C30dBm(2.4 GHz & 5 GHz) dBmW
Antennas quantity	4
Output current	1 A
Output voltage	12 V
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	120 mm
Height	27.9 mm
