TP-Link Archer C64 User Manual

54
Chapter 11 Customize Your Network Settings
network at the same time, I need to configure the static routing.
How can I do that?
1. Change the routers’ LAN IP addresses to two different IP addresses on the same
subnet. Disable Router B’s DHCP function.
2. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
Router A.
3. Go to Advanced > Network > Routing.

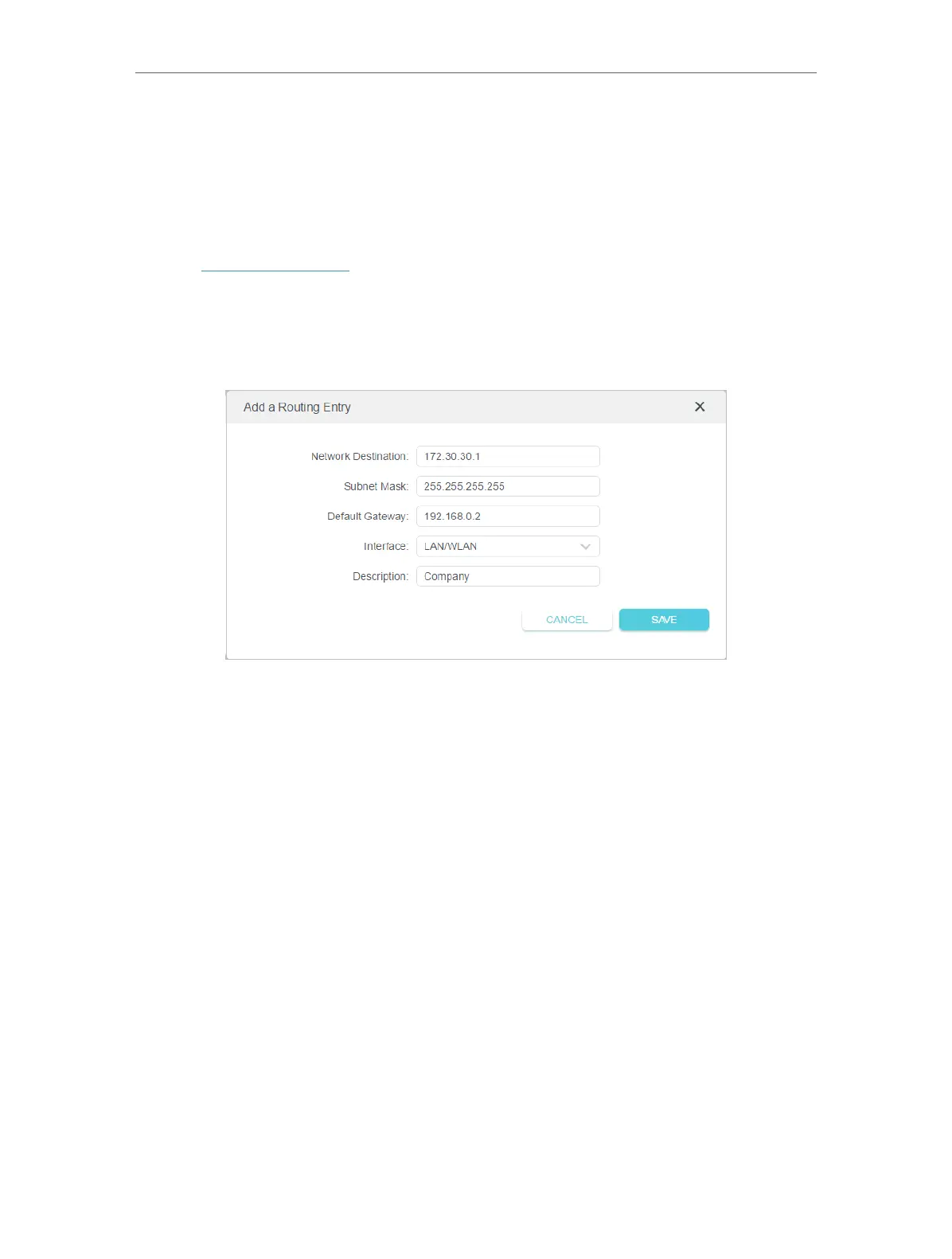

4. Click Add and finish the settings according to the following explanations:
• Network Destination: The destination IP address that you want to assign to a static
route. This IP address cannot be on the same subnet with the WAN IP or LAN IP of
Router A. In the example, the IP address of the company network is the destination IP
address, so here enter 172.30.30.1.
• Subnet Mask: Determines the destination network with the destination IP address.
If the destination is a single IP address, enter 255.255.255.255; otherwise, enter the
subnet mask of the corresponding network IP. In the example, the destination network
is a single IP, so here enter 255.255.255.255.
• Default Gateway: The IP address of the gateway device to which the data packets will
be sent. This IP address must be on the same subnet with the router’s IP which sends
out data. In the example, the data packets will be sent to the LAN port of Router B and
then to the Server, so the default gateway should be 192.168.0.2.
• Interface: Determined by the port (WAN/LAN) that sends out data packets. In the
example, the data are sent to the gateway through the LAN port of Router A, so LAN/
WLAN should be selected.
• Description: Enter a description for this static routing entry.
5. Click SAVE .

TP-Link Archer C64 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Firewall security	SPI
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Supported network protocols	IPv4, IPv6
Networking standards	IEEE 802.1x
Receiver sensitivity	5 GHz: 11a 6Mbps:-95dBm 11a 54Mbps:-77dBm 11ac VHT20 MCS8:-71dBm 11ac VHT40 MCS9:-67dBm 11ac VHT80 MCS9:-63dBm 2.4 GHz: 11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT20 MCS7:-77dBm 11n HT40 MCS7:-74dBm 11ac VHT20 MCS8:-73dBm 11ac VHT40 MCS9:-68dBm
Ethernet LAN interface type	Gigabit Ethernet
Certification	CE, RoHS
Processor frequency	1200 MHz
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Product type	Tabletop router
Product color	Black
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1200 Mbit/s
WLAN data transfer rate (first band)	400 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Transmit power	CE: \u003C20dBm(2.4 GHz), \u003C23dBm(5.15 GHz~5.25 GHz) FCC: \u003C30dBm(2.4 GHz & 5 GHz) dBmW
Antennas quantity	4
Output current	1 A
Output voltage	12 V
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	120 mm
Height	27.9 mm
