TP-Link AV500 User Manual

TL-PA4010P AV500 Powerline Adapter With AC Pass Through
7
2.3 Hardware Connection – Computer
For those computers you wish to be networked by Powerline Adapter, each of the computers must be
properly connected with a Powerline Adapter through an Ethernet (RJ-45) cable.
Following are the steps to properly connect the Powerline Adapter to your computer:
1． Connect one end of the provided Ethernet (RJ-45) cable to the Powerline Adapter’s Ethernet port.
2． Connect the other end of the Ethernet (RJ-45) cable to you computer’s LAN port.
3． Plug the Powerline Adapter into a wall socket next to the computer.
4． Turn on your computer.
5． Check and confirm that the Power LED and Ethernet LED on the Powerline Adapter are ON.

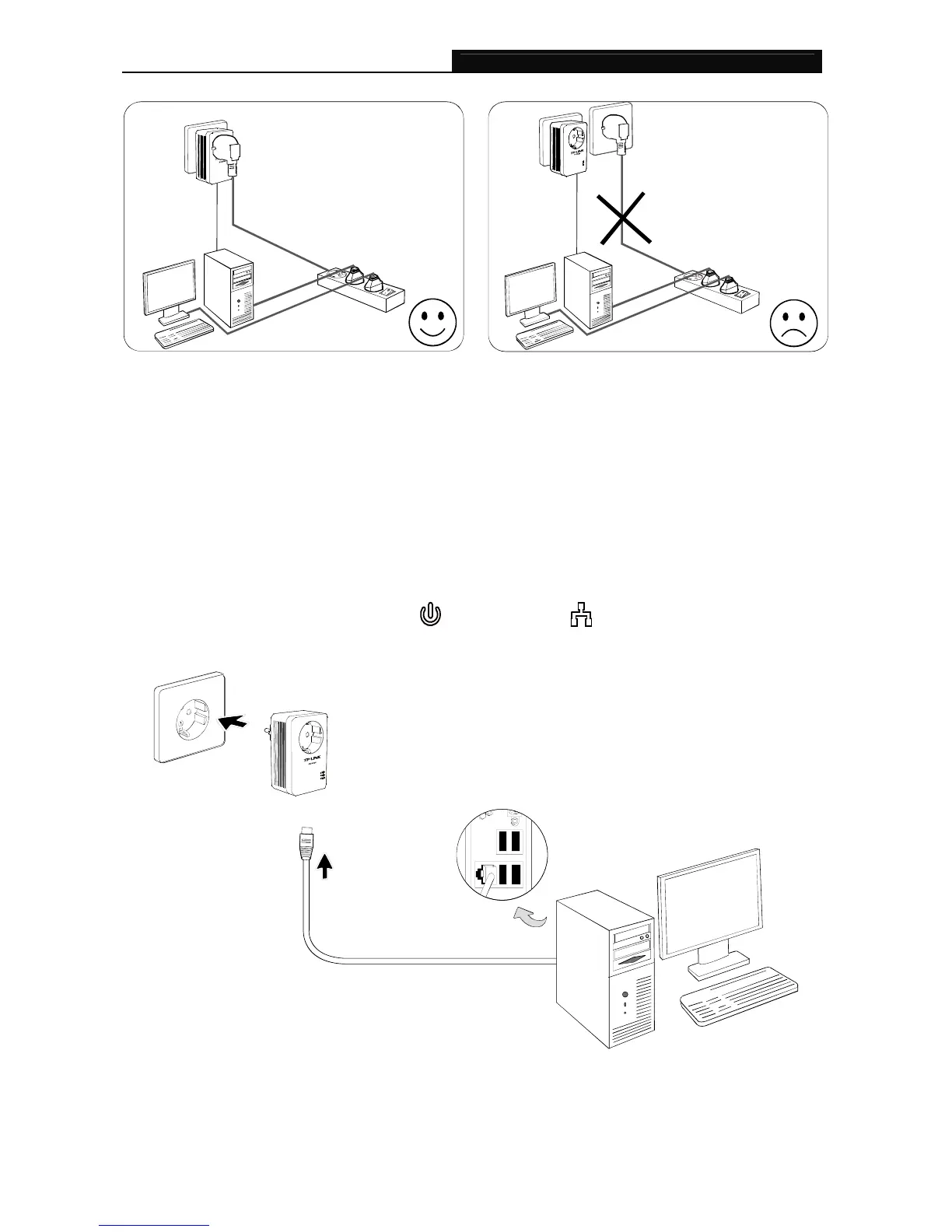

The hardware connection mechanism is shown below:
 Note:
Do not connect the Powerline adapter to any extension lead, power strip, extension cord or surge
protector, as these may degrade the network performance.

TP-Link AV500 Specifications

General

Interface	Ethernet
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Chipset	-
Internal	No
Certification	CE, FCC
Plug and Play	Yes
Product color	Black, White
LED indicators	LAN, Power, Y
Modulation	1024-QAM, 16-QAM, 256-QAM, 64-QAM, 8-QAM, BPSK, OFDM, QPSK
Cabling technology	10/100/1000BaseT(X)
Security algorithms	128-bit AES
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Maximum data transfer rate	500 Mbit/s
Maximum operating distance	300 m
Copper ethernet cabling technology	1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T
Dimensions (WxDxH)	58 x 40 x 105 mm
Networking features	Gigabit Ethernet
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supported data transfer rates	10/100 Mbit/s
Power consumption (typical)	6 W
Compatible operating systems	Windows 2000 Windows XP Windows 2003 Windows Vista Windows 7 Mac Linux
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	40 mm
Width	58 mm
Height	105 mm
