TP-Link TG-3269 User Manual

TG-3269 Gigabit PCI Network Adapter
4
Chapter 2. Installation Guide
2.1 Hardware Installation
To install the adapter, please follow these steps listed below:
1. Turn off your computer and unplug the power cord and all cables.
2. Remove your computer’s case cover.
3. Locate an available PCI slot.
4. Remove the screw that secures the back plate (the small piece of metal that covers the
opening for PCI card on the back panel of your computer), then remove the back plate.
5. Carefully insert the adapter into the PCI slot. Do not touch the metal connector on the
adapter.
6. Secure the adapter to the case using the screw you removed from the back plate.
7. Reinstall your computer’s case cover.
8. Plug in the power cord and other cables, and then turn on your computer.
)Note:
When the hardware has been successfully installed on your computer, you will be prompted
'Found New Hardware Wizard' (as shown in Figure 2-1); please click Ca
ncel, and then follow
the Software Installation steps to install driver for your adapter.

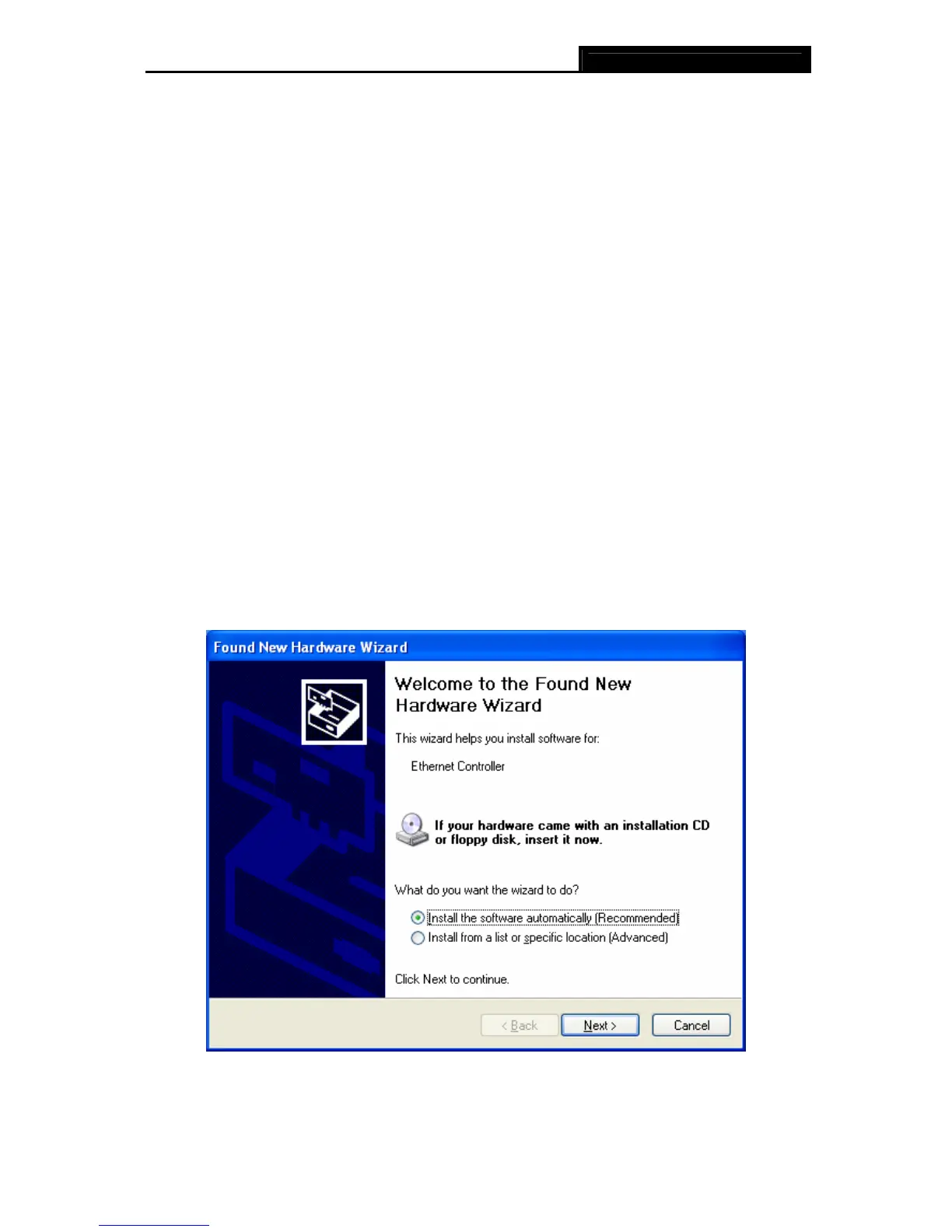

Figure 2-1 Found New Hardware Wizard in Windows XP

TP-Link TG-3269 Specifications

General

Full duplex	Yes
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Interface	Ethernet
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Slot type	32-bit 33/66MHz PCI
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Power management	ACPI, PCI
Chipset	-
Certification	FCC, CE
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 95, Windows 98, Windows ME, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Professional, Windows XP Professional x64
