TP-Link TL-R480T Installation Guide

14
Load Balance Broadband Router


Please connect the WAN port of the Router to the interface provided by ISP via
Ethernet cable.

Connect a LAN port of the Router to the computer by RJ45 cable as the following figure
shown.
RJ45 Port
LAN Port
RJ45 Cable

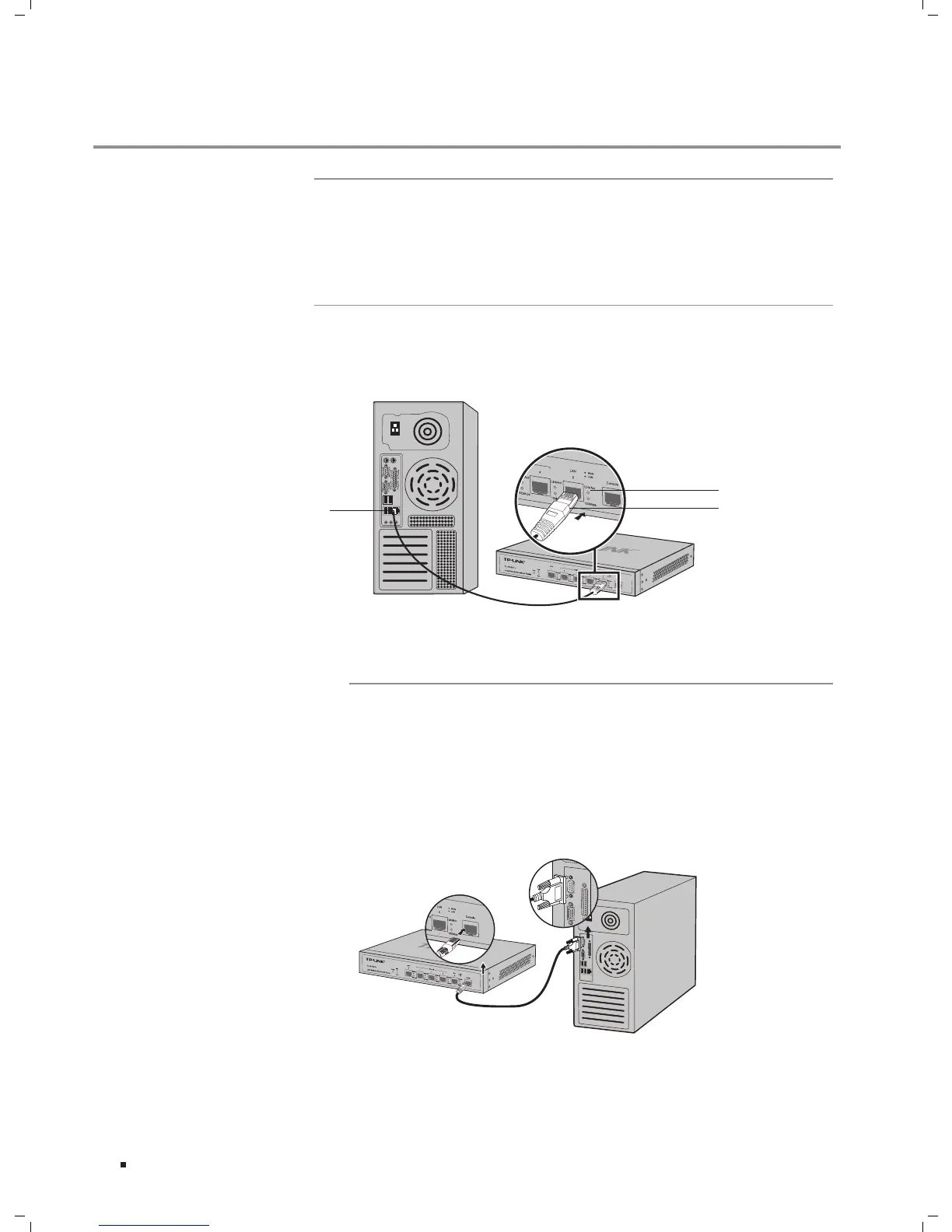

Connecting the LAN PortFigure 4-1

CLI (Command Line Interface) enables you to do some simple operations to the Router,
thus you can load the CLI after connecting the PCs or Terminals to the console port on
the Router via the provided cable. For TL-R480T+, you can check and monitor some
simple system information of the Router.
Connect the console port of the device with your computer by the console cable as the
following figure shown.
Connecting the Console PortFigure 4-2
Connection

TP-Link TL-R480T Specifications

General

Input frequency	50/60 Hz
Dimensions (WxDxH)	294 x 180 x 44 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Dimensions (W x D x H) (imperial)	11.6 x 7.1 x 1.7 \
DHCP client	Yes
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Web-based management	-
RS-232 ports	1
Ethernet LAN (RJ-45) ports	5
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	4 MB
Internal memory	64 MB
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Dual-band	No

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
