For minimum clearance, consult
the certified submittals, which are
available on request from your Trane
Sales Office.
Unit nameplate
The unit nameplate gives the
complete model reference numbers.
The unit power rating is shown, and
power supplies should not deviate by
more than 5 % from the rated power.
Compressor motor amperage is
shown in box I.MAX.
The customer’s electrical installation
must be able to withstand this
current.
Installation instructions
Foundations
No special foundations are required,
provided the supporting surface is
flat and level, and can withstand the
weight or the unit.
Anti-vibration rubber pads
They are supplied as standard with
the machine, and should be placed
between the supporting floor and the
unit to attenuate vibrations.
- 4 pads for the sizes 190 to 300
- 6 pads for the sizes 350 to 800
- Trane does not allow the
installation of spring isolators.
Clearance
Respect recommended clearance
around the unit to allow
maintenance operation to take
place without obstruction and
recommended clearance around
condenser.
CAUTION! Unit operation depends
on the air temperature. Any recycling
of the air fed out by the fans will
increase the air intake temperature
over the condenser fins and can
result in high pressure cut-out.
In this case the standard operating
conditions are modified.
Operation of the unit may be
affected by an increase in air
temperature on the condenser.
When the units are positioned in a
windy area, avoid all the risks of air-
cooled recycling.
See submittals
Handling
Note:
The plates welded at the end of the
bases must not be used for handling.

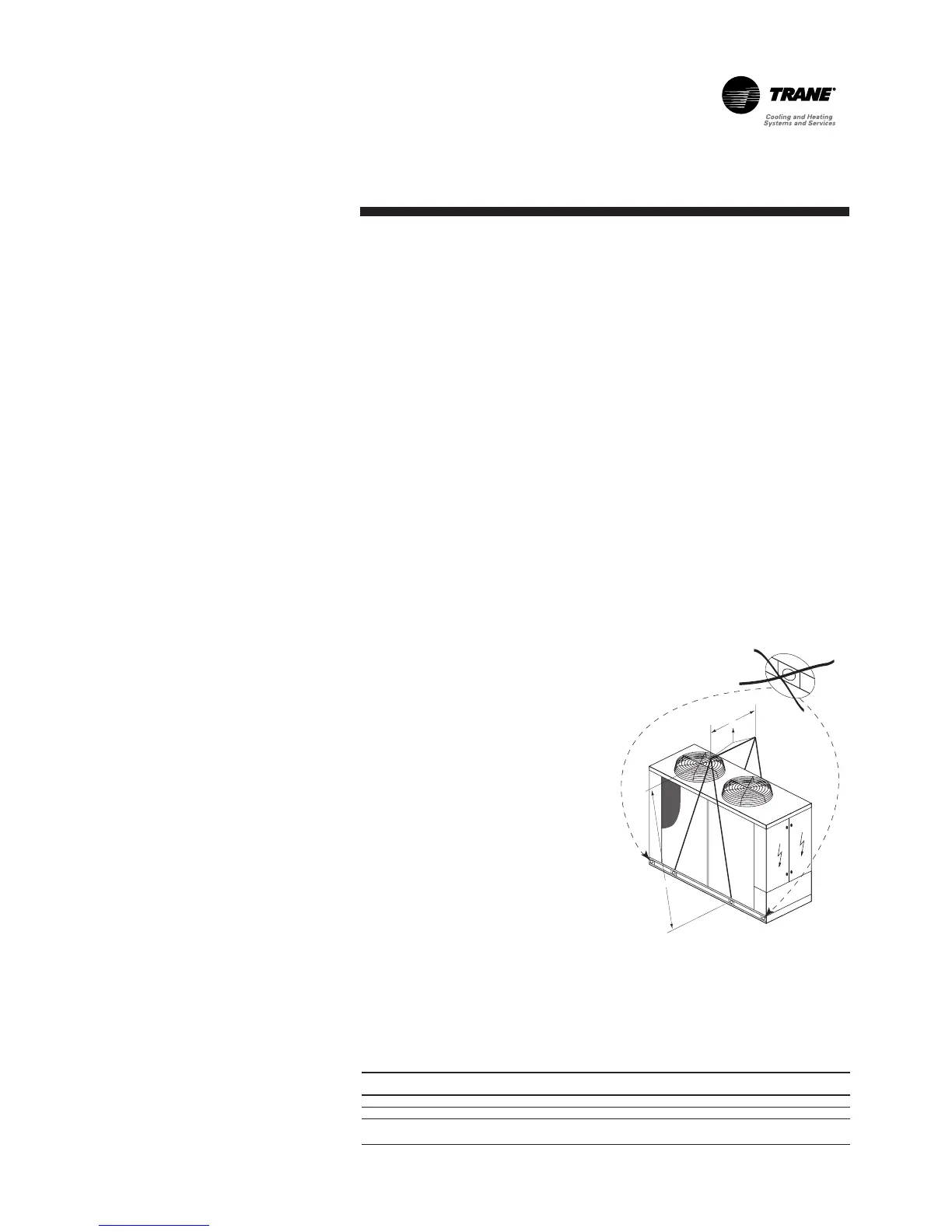

Figure 1 - Handling
