Trane CCRC Series User Manual

CXRC-SVX01J-EN
9

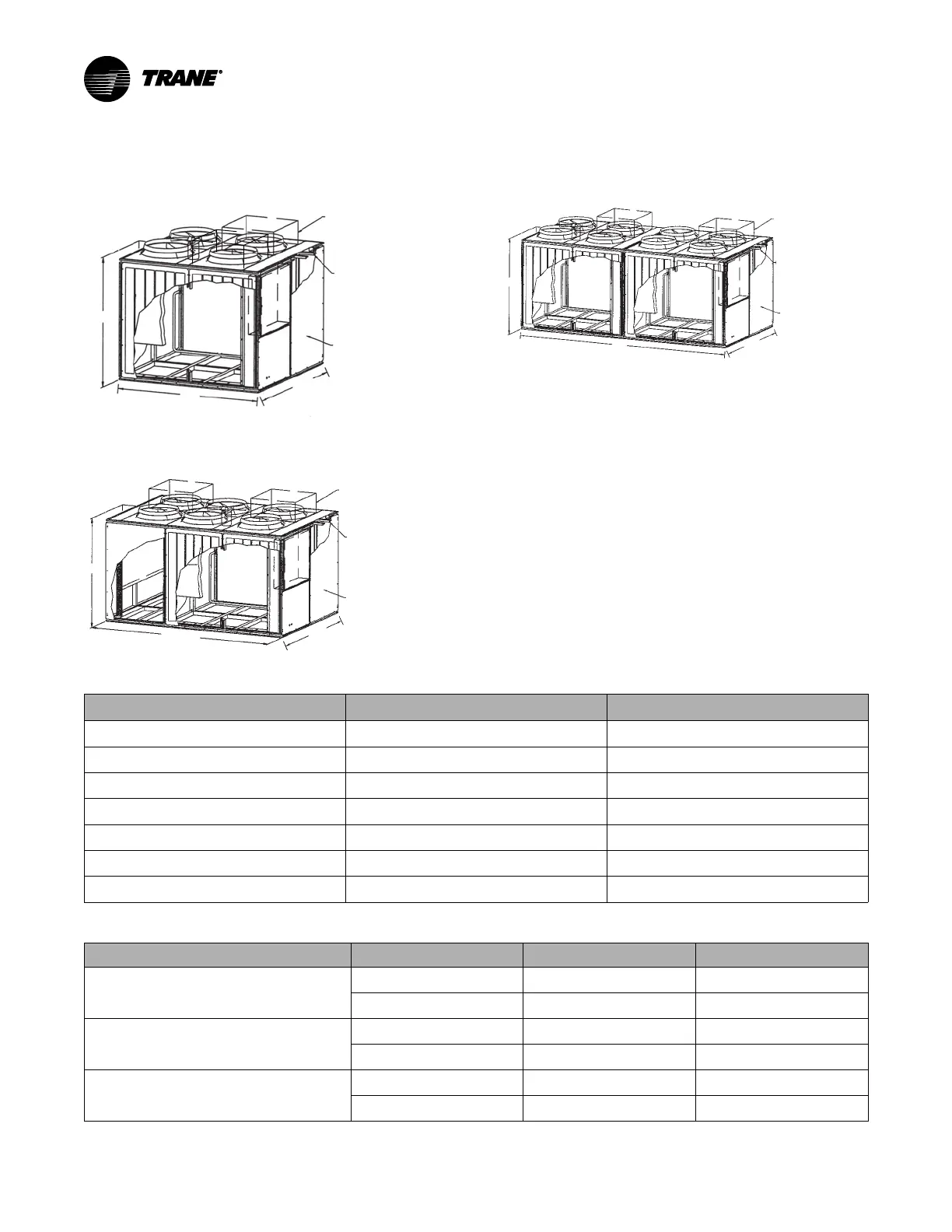

Dimensions and Weights
Figure 2. CCRC/CIRC 20, 29, and 32 Ton
(Optional) Low
Ambient Damper
(One damper per
circuit)
Refrigerant Line
Connections
Frontal View
AC
AB
AA
Figure 3. CCRC/CIRC 35 and 40 Ton
(Optional) Low
Ambient Damper
(One Damper per Circuit)
Refrigerant Line
Connections
Frontal View
AC
AB
AA
Figure 4. CCRC/CIRC 50 and 60 Ton
(Optional) Low
Ambient Damper
(One Damper per Circuit)
Refrigerant Line
Connections
Frontal View
AC
AB
AA
Table 1. CCRC/CIRC Unit Weights
Unit Size
Shipping Weight lbs (kg). Operating Weight lbs.(kg)
CCRC/CIRC 20
2030 (920) 1906 (865)
CCRC/CIRC 29
2084 (945) 1960 (890)
CCRC/CIRC 32
2138 (970) 2014 (915)
CCRC/CIRC 35
3018 (1370) 2833 (1285)
CCRC/CIRC 40
3072 (1395) 2887 (1310)
CCRC/CIRC 50
3995 (1810) 3695 (1675)
CCRC/CIRC 60
4275 (1940) 3975 (1805)
Table 2. CCRC/CIRC Unit Dimensions
Unit Tons AA AB AC
CCRC/CIRC20, 29, 32
70-1/8
7' - 4 7' - 4
(1781) (2235) (2235)
CCRC/CIRC35, 40
70-1/8 10' - 10 3/4
7' - 4
(1781) (3321) (2235)
CCRC/CIRC50, 60
70-1/8
14' - 8 7' - 4
(1781) (4470) (2235)
