Trane Cold Generator CGWR Series User Manual

CG-SVX038A-EN 63
Appendix
Vendor Data Sheet

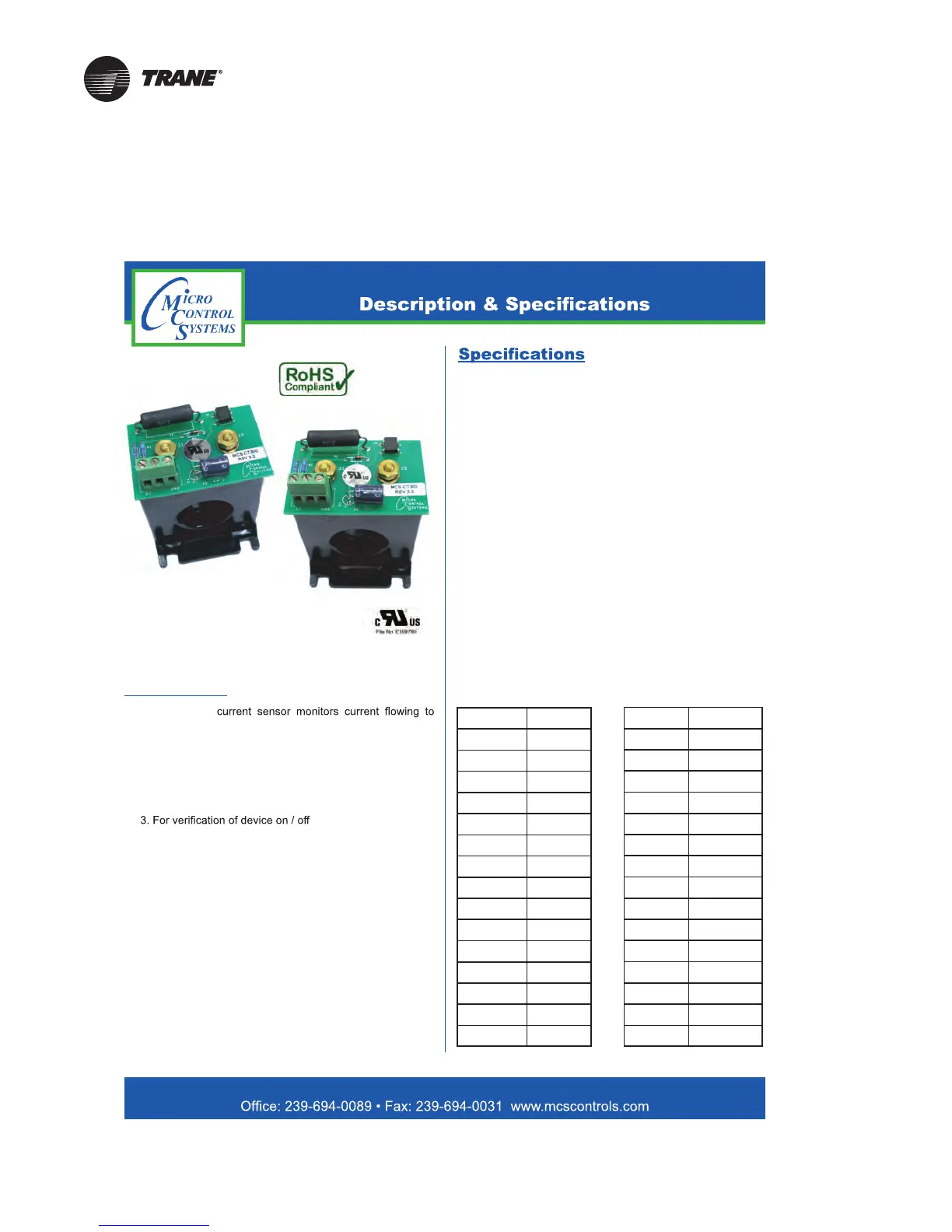

MSC-CT300 Current Transducer Data Sheet
The MCS-MAGNUM-N
For complete temperature chart, refer to the MCS-T100 spec sheet
5580 Enterprise Pkwy., Fort Myers, FL 33905
MCS-CT300
Description
For complete temperature chart, refer to the MCS-T100 spec sheet
5580 Enterprise Pkwy., Fort Myers, FL 33905
Revision 2015-08-07
Part # MCS-CT300
Dimensions:
Height ................................................... 4.00”
Width ....................................................2.38”
Depth .................................................... 1.56”
Wire Hole ..............................................1.00”
Amperage Rating..................................0-300A
Accuracy ...............................................± 3 amps
Sensor Output Voltage .........................0-5vdc
Supply Voltage......................................Induced
Operating Temperature ......................-40°F to +158°F (-40°C to +70°C)
Storage Temperature ..........................-40°F to +158°F (-40°C to +70°C)
The MCS-CT300
electrical equipment. The magnitude of the current is converted
to a linear 0 to 5vdc output signal which can be read as a standard
analog input signal. The signal is used by MCS micro controllers
for the following:
1. For slide valve positioning on screw machines
2. For high amp motor overload protection
4. Used in kw calculations
The MCS-CT300 is a solid-core version, so the conductor runs
through the sensor. No cutting, taping or rerouting is required.
It is accurate, reliable, easy to install and requires no service.
The MCS-CT300 has an accuracy of ± 3 amps in the frequency
range from 50-60Hz. The sensor outputs a 0 to 5vdc signal. The
sensor power is induced from the current being monitored.
On the printed circuit board, a resistor is mounted across the
CT terminals, which eliminates danger from induced current.
A removable three-position terminal block is provided for easy
wiring.
A two-conductor shielded cable must be used. The shield must
be cut at the MCS-CT300 end and tied to ground at the MCS
micro controller terminal block.
Amps Volts dc
10 0.13
20 0.30
30 0.48
40 0.65
50 0.82
60 0.99
70 1.16
80 1.34
90 1.51
100 1.68
110 1.85
120 2.02
130 2.19
140 2.36
150 2.53
Amps Volts dc
160 2.71
170 2.88
180 3.05
190 3.22
200 3.39
210 3.56
220 3.73
230 3.91
240 4.06
250 4.23
260 4.40
270 4.58
280 4.74
290 4.91
300 5.08
