Communicating Display Assembly (CANda)
1. External shut down
(Load Shed)
2. Min. Airow
3. Blower on/o delays
4. Custom Airow
5. PFC (Power Factor
Correction)
1. FRC DFT (Forced Defrost)
2. EEV Test
3. Evacuation
4. Drive Diagnostic Test
5. OD Fan Test

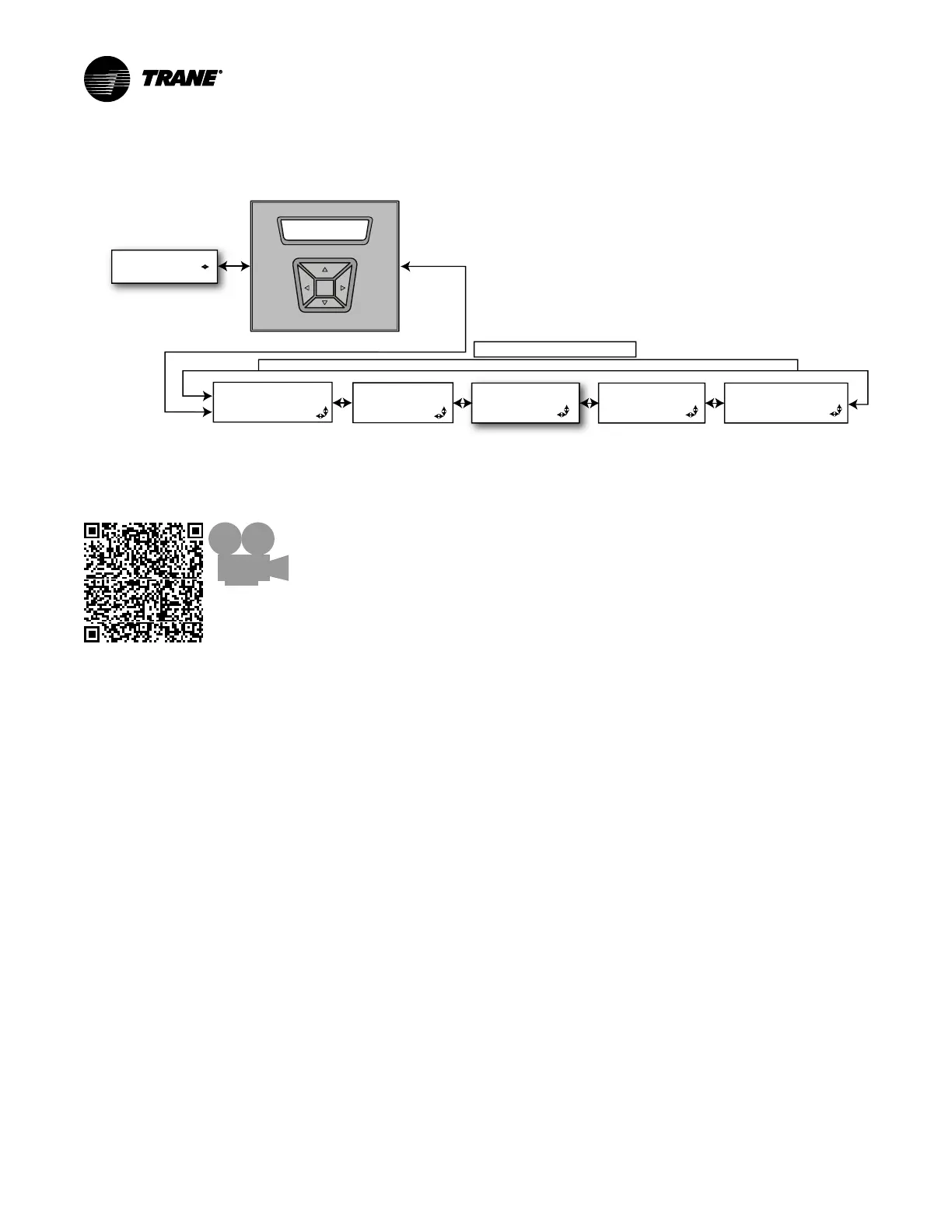

TECHNICIAN MENUS
SYSTEM STATUS
XXXXXXXXXXXXXXXX
NAVIGATION
• To enter and exit Technician Menus, press the Up/Down buttons
simultaneously for 5 seconds.
• To return to the Home Screen, press the Up/Down buttons
simultaneously for 5 seconds.
• To return to the top level of any menu, press the Left/Right buttons
simultaneously for 5 seconds.
• After ve minutes of inactivity in the Technician Menu section, the
Home Screen will be displayed. Pressing the Enter button for
5 seconds will increase this time to 20 minutes.
ALERT HISTORY
MENU
ALERT MENU
CONFIG MENU
CONTROL MENU
MONITOR MENU
The Monitor Menu
displays information
on System status, Drive
stats and the System
Tachometer.
The Alert History menu
displays alerts stored
over time. Note that
clearing Alert History
will also clear Active
Alerts.
The Alert Menu
displays active alerts.
The Conguration
Menu is where System
parameters and
options are set and
reported.
The Control Menu
contains a selection of
unit function tests that
are used to verify
operation.
Scan to see an
overview video
about the CANda
Note: CONFIG MENU is only available in clii mode.
Note: See the Service Facts found in the control box of the outdoor unit for more information.
