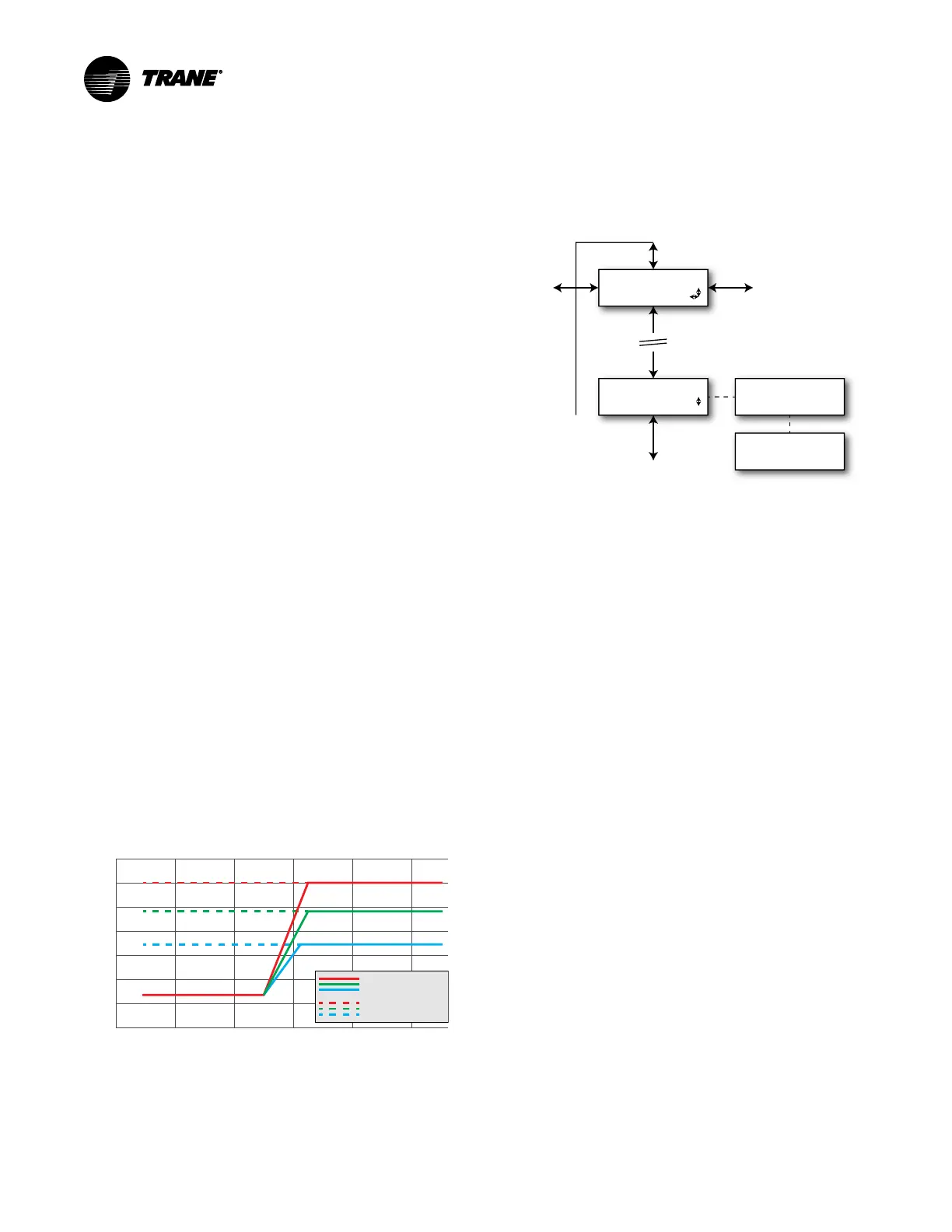

Defrost Control (Heat Pump only)
DDeemmaanndd DDeeffrroosstt
The demand defrost control measures heat pump
outdoor ambient temperature with a sensor located
outside the outdoor coil. A second sensor located on
the outdoor coil is used to measure the coil
temperature. The difference between the ambient and
the colder coil temperature is the difference or delta-T
measurement. This delta-T measurement is
representative of the operating state and relative
capacity of the heat pump system. By measuring the
change in delta-T, we can determine the need for
defrost. The coil sensor also serves to sense outdoor
coil temperature for termination of the defrost cycle.
FFaauulltt IIddeennttiiffiiccaattiioonn
A fault condition is indicated by the CANda connected
to the control board inside the heat pump control box.
DDeeffrroosstt EEnnaabblleedd
Demand Defrost is enabled with the following inputs to
the Integrated Variable Speed Control (IVSC):
• Outdoor ambient temperature sensor (ODS-B)
reporting an outdoor temperature at or below 52° F.
• Coil temperature sensor (CBS) reporting a coil
temperature at or below 35° F.
• Heat/Cool Demand (HCD) from the communicating
comfort control for at least two minutes or more.
DDeeffrroosstt IInniittiiaattiioonn
The calculated temperature difference between the
outdoor temperature sensor and the coil temperature
sensor is called Delta T. Defrost can occur once the
current Delta T exceeds the Delta T initiate value. This
adaptive logic assures a complete defrost for a range of
outdoor temperatures.
65ºF
60ºF
55ºF
50ºF
45ºF
40ºF
35ºF
30ºF
-40ºF -20ºF 0ºF 20ºF 40ºF 60ºF
FACTORY TERMINATION TEMP
AMBIENT TEMPERATURE
TERMINATION TEMPERATURE
MEDIUM TERMINATION TEMP
HIGH TERMINATION TEMP
DEFROST TERMINATION PROFILES
SOFTWARE 1.0/2.0
SOFTWARE 3.0 AND LATER
NNoottee:: A forced Defrost test can be entered through the
850/950/1050 or UX360 thermostats, the outdoor
unit CANda or the Link Diagnostic Mobile App.
CCAANNddaa NNaavviiggaattiioonn ttoo FFoorrcceedd DDeeffrroosstt
Figure 7. CANda Mini Menu
FRC DFT
PRESS ENTER
TEST IN PROGRESS
CTS <value>
TEST COMPLETE
CONTROL MENU
CONFIG
MENU
MONITOR
MENU
NNoottee:: CONFIG MENU only available in clii mode
NNOOTTEESS:: FFoorrcceedd DDeeffrroosstt
1. System must be running with demand from the
thermostat.
2. FRC DFT TEST can be initiated in heat mode only.
DFC TEST can be entered from the CANda or
Thermostat on clii systems or from the CANda,
UX360 User Interface or Diagnostic Mobile App in
Link systems. Indoor AUX heat will energize when
FRC DFT TEST is selected from the Outdoor CANda.
3. Press ENTER to begin forced defrost.
4. Execute Forced Defrost following Forced Defrost
(Defrost terminates on Coil Temperature or
maximum time override of 15 minutes).
5. When test begins, TEST IN PROGRESS displays on
line 1 and Coil Temperature value on line 2.
NNoottee:: Home Screen, under System Status will display
DEFROST.
6. When test is complete, TEST COMPLETE displays
for 10 seconds.
7. If there is a defrost fault condition, test terminates
and sends alert to the alert menu.
8. For more information, refer to the Alert Code Tables
in Service Facts and Technical Service Manual (Pub.
No. 34–4301–01 or newer) documents.
NNoottee:: Screens will update as the test proceeds.
NNoottee:: Entering Forced Defrost from 850/950 or 1050
will not energize the indoor heat in clii mode.
Indoor heat will energize if entered from outdoor
CANda.
NNoottee:: Can enter Forced Defrost from UX360, CANda or
the Diagnostic Mobile App in Link mode.
