Dimensions

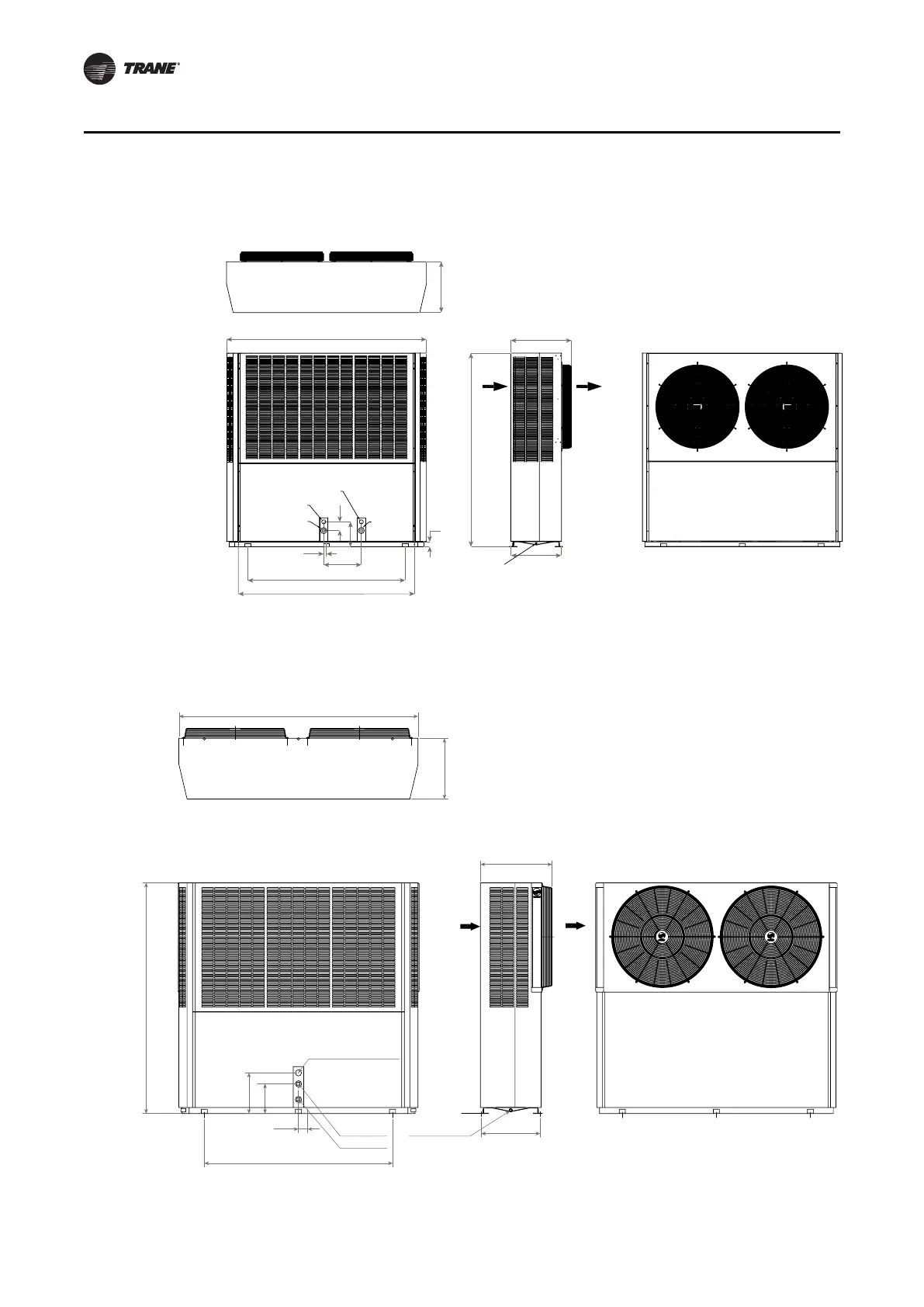

CGAR/K-1505R/2005R (Unit: mm)
500
580
1900
Ø40 connect wire hole
Inlet
Outlet
Drain hole 1/2”
1990
335
245
490
1550
75
TM TM
CGAR-1205R (Unit: mm)
1990
580
1900
500
1736
1550
30
85
245
370
490
50
Drain Hole 1/2"
Ø40 connect wire hole
Ø40 connect wire hole
Inlet RC 1¼"
Outlet RC 1¼"
