Installation - Mechanical

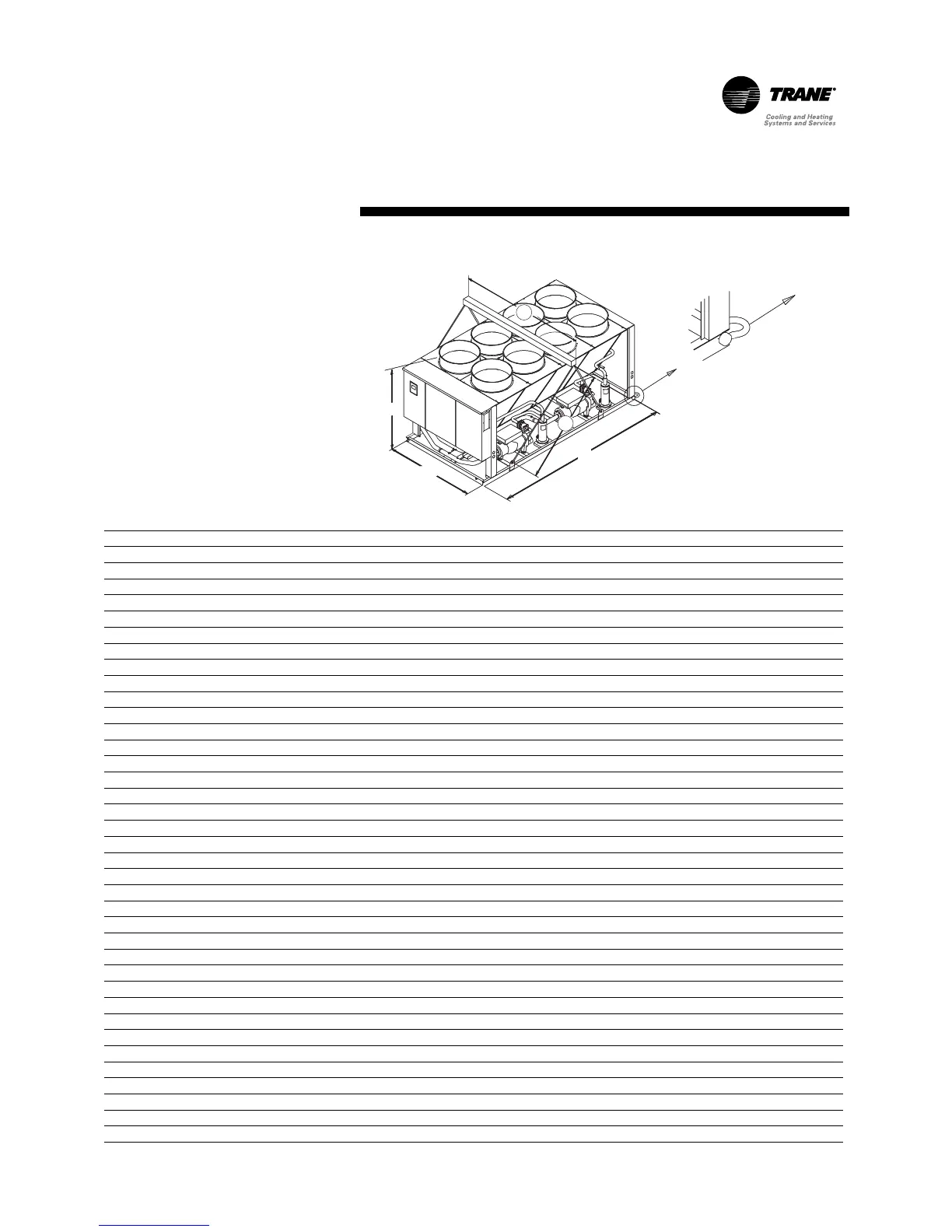

Figure 3 - Rigging the Unit
A
L
H
W
B
Table 25
Note: Size 085 does not exist for Total Heat Recovery option but HE version is available
(1) Maximum weight with all options
Unit Size Lengths (mm) Maximum weight (kg)(1)
A B L H max W Aluminium Copper
Standard
RTAD 085 4000 2400 3507 2215 2260 2740 3070
RTAD 100-115-125 4000 2400 4426 2215 2260 3565 4005
RTAD 145-150 4000 2400 5351 2215 2260 4530 4940
RTAD 165-180 4000 2400 6370 2215 2260 5345 5855
RTAD 085-100 HE 4000 2400 4426 2215 2260 3345 3785
RTAD 115-125 HE 4000 2400 5351 2215 2260 4010 4560
RTAD 145-150 HE 4000 2400 6370 2215 2260 5265 5775
Partial Heat Recovery
RTAD 085 4000 2400 3507 2215 2260 2810 3140
RTAD 100-115-125 4000 2400 4426 2215 2260 3635 4075
RTAD 145-150 4000 2400 5351 2215 2260 4605 5015
RTAD 165-180 4000 2400 6370 2215 2260 5430 5940
RTAD 085-100 HE 4000 2400 4426 2215 2260 3405 3845
RTAD 115-125 HE 4000 2400 5351 2215 2260 4080 4630
RTAD 145-150 HE 4000 2400 6370 2215 2260 5340 5850
Total Heat Recovery
RTAD 100 4000 2400 4426 2215 2260 3260 3540
RTAD 115-125 4000 2400 4426 2215 2260 3820 4260
RTAD 145-150 4000 2400 5351 2215 2260 4855 5265
RTAD 165-180 4000 2400 6370 2215 2260 5680 6190
RTAD 085-100 HE 4000 2400 4426 2215 2260 3580 3845
RTAD 115-125 HE 4000 2400 5351 2215 2260 4320 4870
RTAD 145-150 HE 4000 2400 6370 2215 2260 5580 6090
Free Cooling
RTAD 085 4600 2600 3900 2605 2420 3485 -
RTAD 100-115-125 4600 2600 4850 2605 2420 4920 -
RTAD 145-150 4600 2600 5770 2645 2420 5720 -
RTAD 165-180 4600 2600 6810 2745 2460 6985 -
RTAD 085-100 HE 4600 2600 4850 2605 2420 4540 -
RTAD 115-125 HE 4600 2600 5770 2645 2420 5480 -
RTAD 145-150 HE 4600 2600 6810 2745 2460 6905 -
RTAD 145-150 SE 4000 2400 5351 2215 2260 5265 5675
RTAD 165-180 SE 4000 2400 6370 2215 2260 6145 6655
RTAD 115-125 HE 4000 2400 5351 2215 2260 4740 5150
RTAD 145-150 HE 4000 2400 6370 2215 2260 6145 6655
