Example
Tap #
IdL
STATUS MENU
Err
ACTIVE ERRORS
Ht tp5
Example
Gas Heat
Example
Tap 5
E3.1
Example
Pressure Switch Error
L6F
LAST 6 FAULTS
E3.1 E04
Example
Pressure Switch Error
Example
Open Limit Switch Error
CR1
Control Release #
CR
Example
So!ware Version #
COd
Cooing Off Delay
000
090 180
Example
seconds
ODU
Outdoor Stages
1-1 2-1
HOD
Heat Off Delay
100 060
Example
seconds
ISD
Inter-Stage Delay
600 000
Example
seconds
300 900
CFP
Con$nuous Fan Tap
CF.1
Example
Tap #
COP
Compressor Opera$on
Speed Tap
Example
Tap #
S8X1

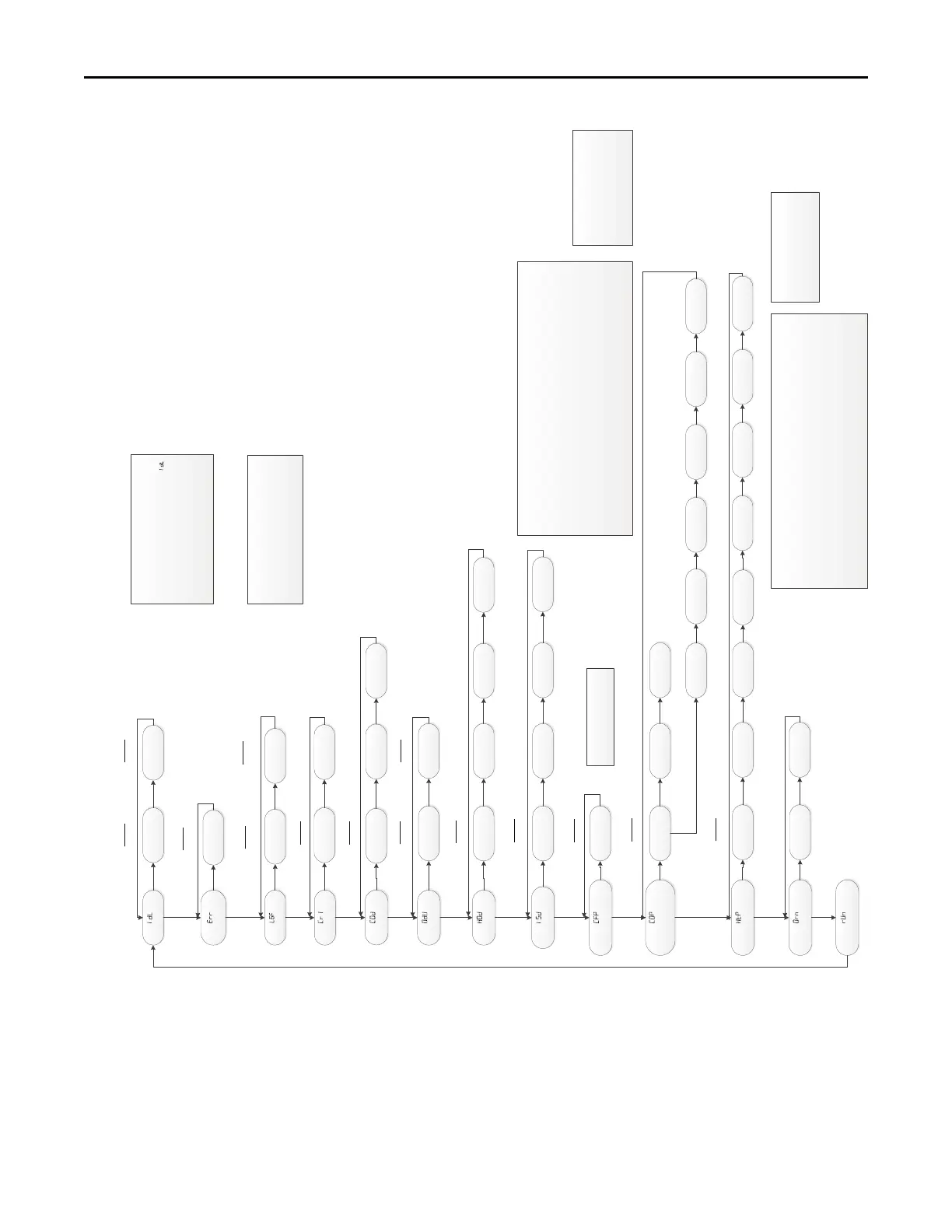

Control System Menu Two Stage OD
140
CLEARING THE LAST6 FAULTS:
To clear the stored faults, scroll to the last 6 faults menu,
enter the menu by scrolling to the right and hold the
“Op$on” key for at least 5 seconds. Release and a set of 3
dashes will be seen 3 $mes. This confirms the faults have
been cleared.
SETTING UP YOUR SYSTEM
:
To change any factory default value, first remove any “call”
from the furnace and allow all fan off delays to finish. (IDL
should be seen on the display)
Scroll to the selected Menu item by momentarily depressing
the “MENU” key and then depress the “OPTION” key to the
desired se&ng. Then momentarily depress the “MENU” key
again to save the change.
180
C1.3 C1.1 C1.2
C2.7 C2.4
HtP
Hea$ng Speed Tap
H1.5 H1.1
001
H1.2
H1.6
H1.3
Example
Single Stage
Example
2 stage 1 compressor
run
Run Test Mode
C2.5 C2.6 C2.8 C2.9
H1_7 H1.8H1.4
Default Airflow Taps
Gas Heat = Tap 5
ODU Menu 2-1
1
st
Stage Coo
lin
g / HP = Tap 3
2
nd
Stage Cooling / HP = Tap 7
ORN
LE
D
Or
ienta$on
UP
dn
SELECTING COOLING / HP FAN SPEEDS for 2-1 ODU:
Airflow can be adjusted while the unit is running.
1st Stage Airflow: Scroll to the COP menu and momentarily push the OPTION key. Tap #3 is the
default 1st stage se&ng for all models. When selec$on is made, momentarily push the MENU key to
save.(change will not be applied un$l 2nd stage airflow tap is saved)
2nd Stage Airflow: A!er 1st stage airflow is selected, the default 2nd stage airflow tap will appear,
C2_7. If this tap is desired, momentarily push the MENU key to save.
Important: If a change is made to either 1st or 2nd stage airflow, both must be saved by pushing the
MENU key. Neither selec$on will be saved if this is not done.
SELECTING GAS HEATING FAN SPEEDS:
Airflow can be adjusted while the unit is running.
Scroll to the HTP menu and momentarily push the OPTION key. Tap #5 is the default se&ng for all
models. When selec$on is made, momentarily push the MENU key to save.
If the temperature rise is too high, increase airflow. If the temperature rise too low, decrease
airflow.
NOTE: Tap 9 is not available for gas hea$ng.
Con$nuous Fan
Con$nuous fan cannot be adjusted
Designated Gas Hea$ng Airflow Taps
S8*1B080M4PSBA (1-6)
S8*1D120M5PSBA (1-8)
