Trane S8V2A040M3PC User Manual

50
S8V2-SVX001-1A-EN

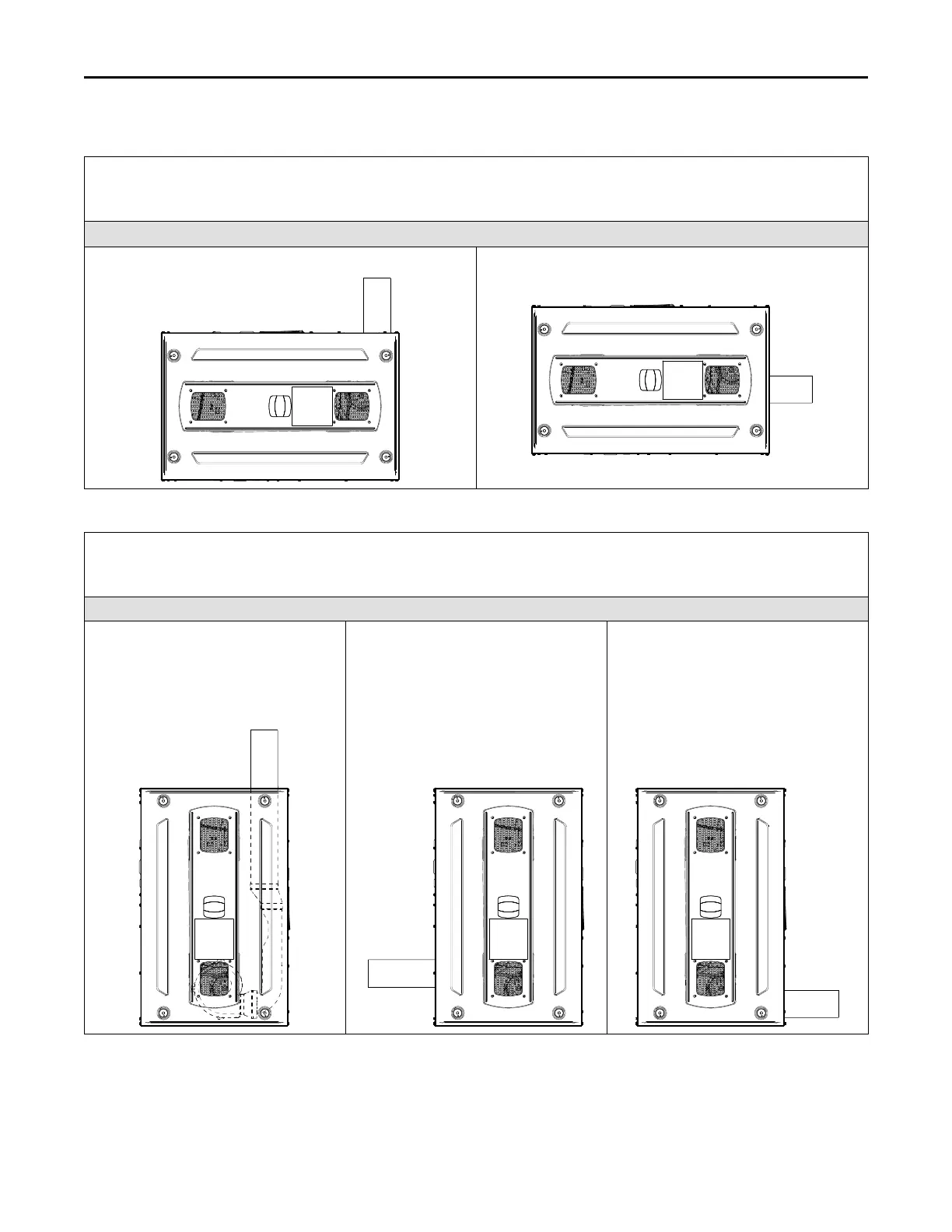

Table 21. Venting Options for Horizontal Right Applications
Refer to the illustrations below to find the approved venting options for horizontal right furnace.
Important: The exhaust must be vented to the outdoors.
Note: 4” Type B double wall vent pipe must be used inside of the furnace cabinet.
Horizontal Right Orientation or Installation
Vented out top.
Vented through right side.
Table 22. Venting Options for Downflow Applications
Refer to the illustrations below to find the approved venting options for downflow furnace models.
Important: The combustion air exhaust must be vented to the outdoors.
Note: 4” Type B double wall vent pipe must be used inside of the furnace cabinet.
Downflow Orientation or Installation
Vented out top.
Note: Requires kit BAYVENT600. Kit used
with B, C, and D cabinets only.
Note: “A” cabinet furnaces must be vented
through the left of right side openings.
Vented through left side. Vented through right side.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
