Trane SCRH - Dimensions and Weights (3 & 5 Tons); Unit Dimensions and Weights (3 & 5 Tons)

PKG-SVX14A-EN 11
dimensions &
weightsInstallation
3 & 5-tons
SCWH/SCRH
SCRH
SCWH
vertical discharge
horizontal discharge
(field converted)

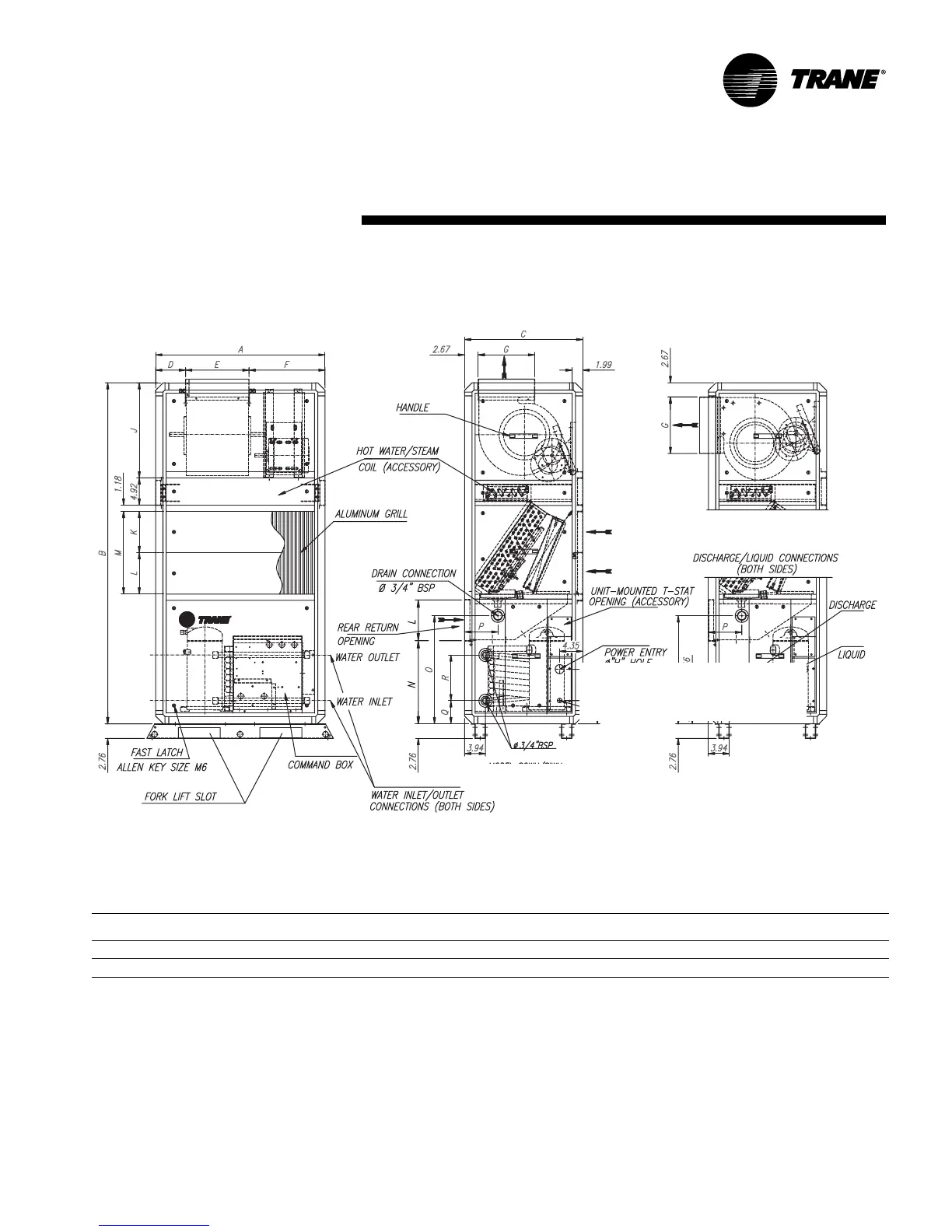

SCWH/SCRH dimensions & weight, in-lbs.
unit shipping operating
size A B C D E F G J K L M N O P Q R S weight weight
3 31.89 64.17 22.24 5.65 11.93 14.31 10.63 18.00 7.80 7.80 15.60 15.63 20.20 6.28 4.33 8.58 4.37 494 459
5 36.41 75.98 24.01 7.73 13.03 15.65 11.61 20.31 12.32 8.66 20.98 18.58 24.20 7.10 5.43 6.38 7.12 592 555
