Low-Voltage Starter Types
Low Voltage—Wye-Delta
Wye-Delta Starters
One of the most common starters in the industry is the wye/star-delta. It is an electromechanical
starter initially set up in a “wye” or “star” configuration, then it transitions to a “delta”
configuration during the starting sequence.To illustrate a typical starting sequence using a generic
(non-Trane) schematic, refer to Figure 7, p. 19 and its “Starting sequence,” p. 19.

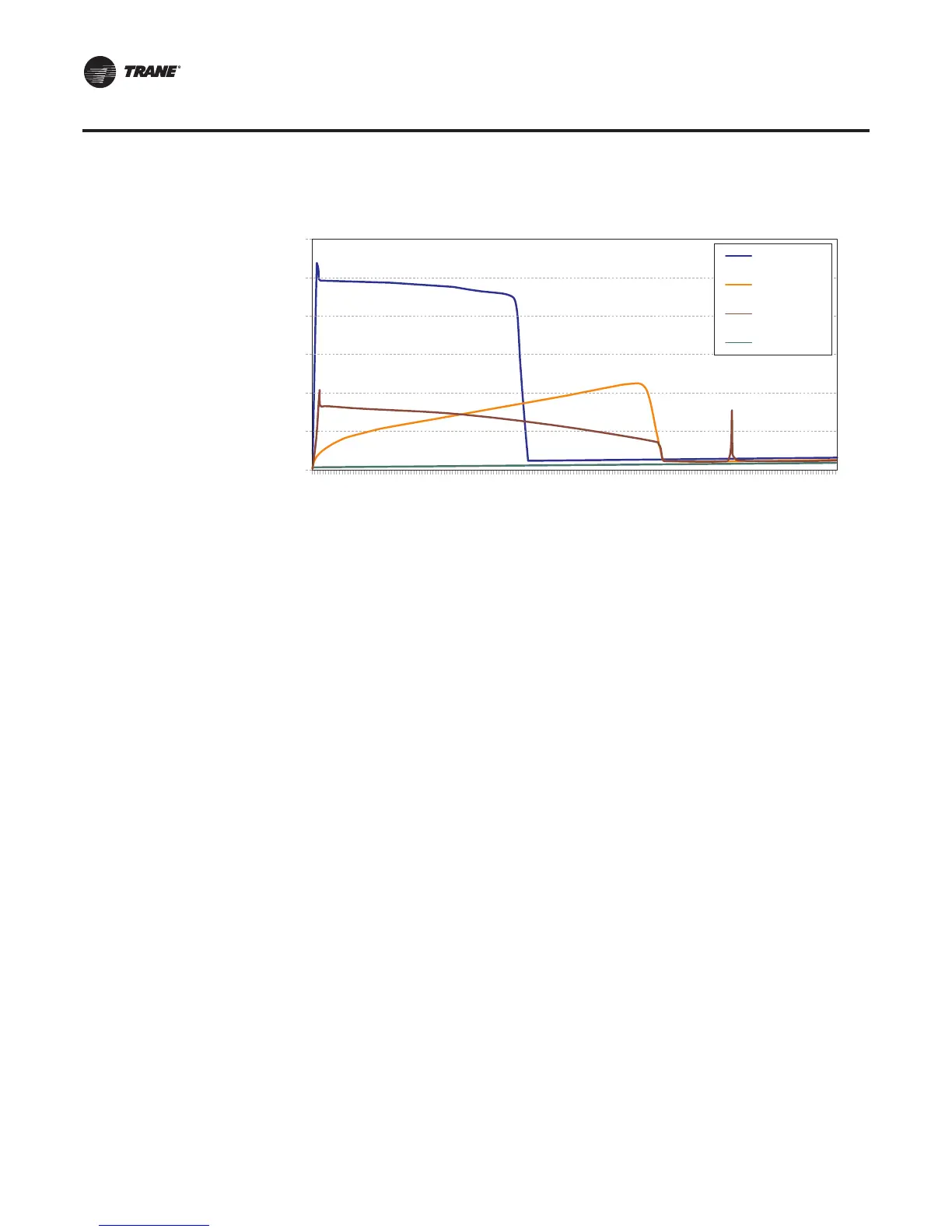

Figure 6. Comparison of low-voltage starting current
X-Line
Solid-State
Wye-Delta
AFD
0
123456789
10
Time (seconds)
0
20
40
60
80
100
120
% LRA
