CTV-PRB004-EN 63
Starter Options
Multiple starter lineups for 10–13.8 kV starters
Side-by-side starter lineups are available for 10–13.8 kV starters. Contact CenTraVac Field Sales
Support for dimensions and availability.
Industrial-Grade Starters
High-fault starters can be selected independently of the Enhanced Electrical Protection Package.
High-fault, remote, solid-state starters (IHRS)
• NEMA 12 960 amps
• Flanged disconnect
• 100,000 amps short-circuit current rating
• SAE HS-1738
• Up to 600 volts
High-fault, remote, wye-delta starters (HRWD)
• NEMA 1,961 to 1,600 amps
• Non-flanged disconnect
• 85,000 amps short-circuit current rating
• Up to 480 volts
Medium-voltage remote starters (2,300–6,600 volts)
• Across-the-line, primary reactor, and autotransformer
• NEMA 12 option
• SAE HS-1738 option
• Flanged disconnect

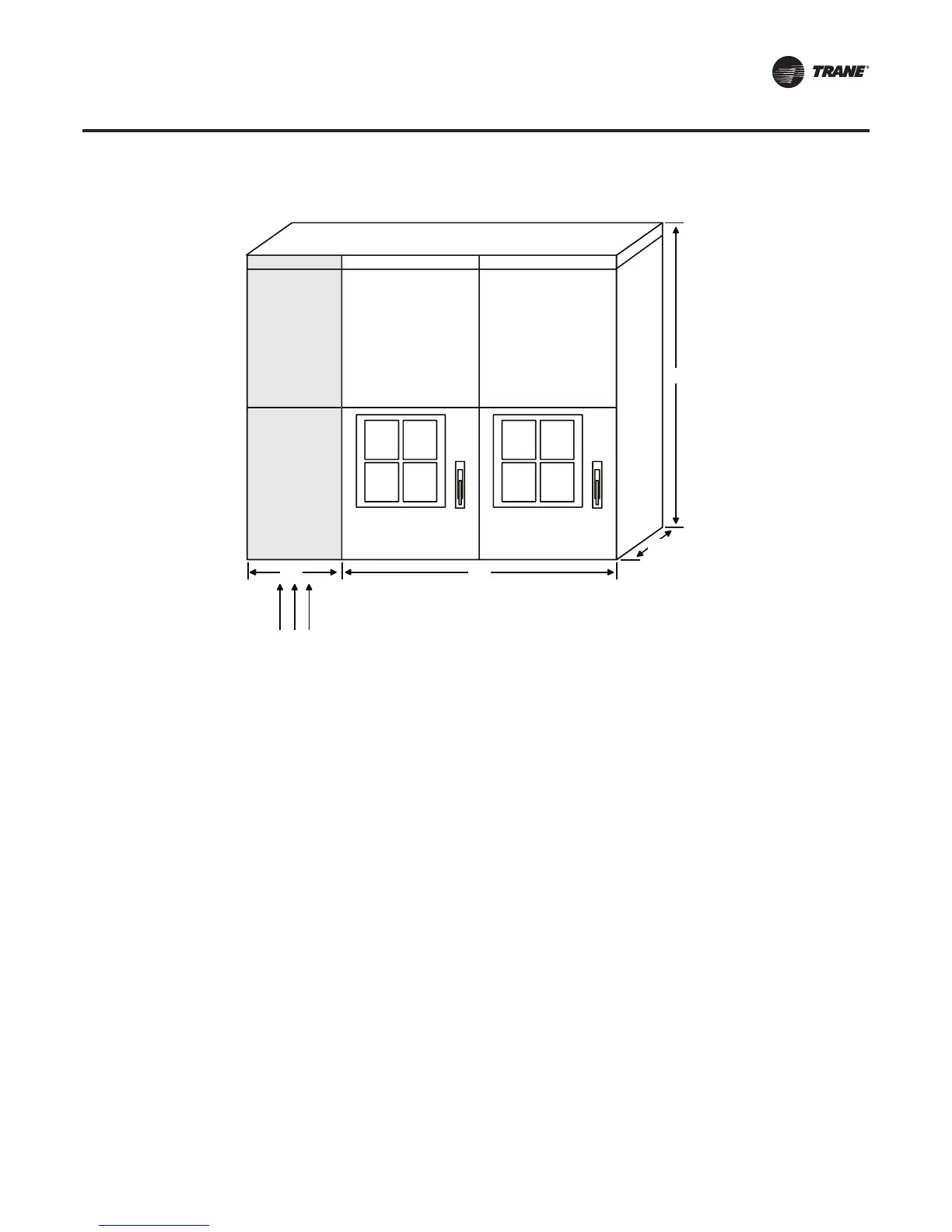

Figure 44. Bottom-entry, multiple, across-the-line starter arrangement (2.3–6.6 kV)
auxiliary
section
main bus
X- Line starterX- Line starter
92"
30"
72"
main bus
24"
incoming line power
CTV-PRB004.book Page 63 Sunday, December 18, 2011 6:39 PM
