Trane TEM4 Series User Manual

18-GF75D1-1C-EN
15

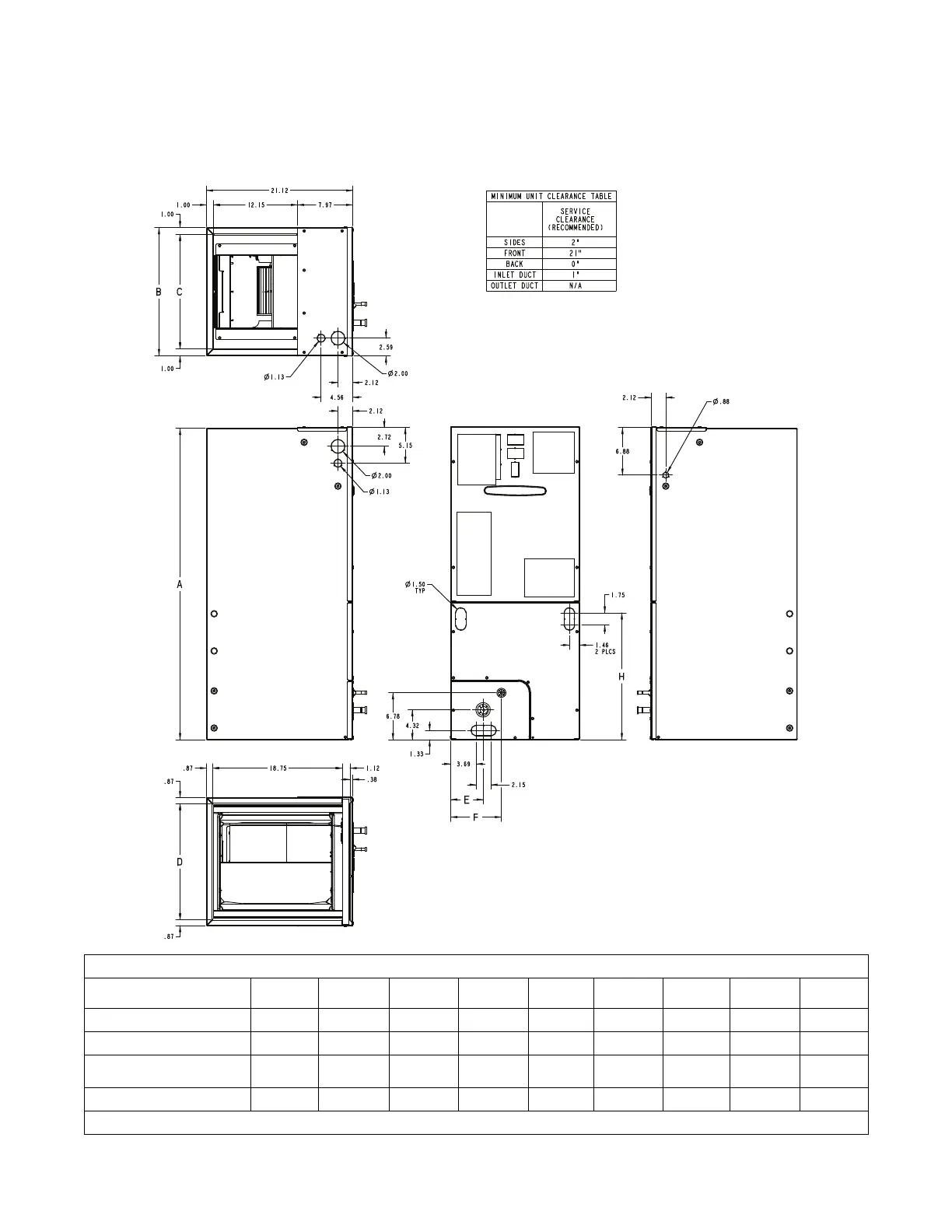

Outline Drawing
NOTE: THIS UNIT IS APPROVED FOR INSTALLATION
CLEARANCES TO COMBUSTIBLE MATERIAL AS
STATED ON THE UNIT RATING NAMEPLATE
PRODUCT DIMENSIONS
Air Handler Model A B C D E F H
Flow
Control
Gas Line
Braze
TEM4B0B24 45.02 18.50 16.50 16.75 4.68 7.33 18.34 TXV
3/4
TEM4A0B31 46.77 18.50 16.50 16.75 4.68 7.33 20.09 TXV
3/4
TEM4B0C37, TEM4A0C42,
43, 48
51.27 23.50 21.50 21.75 7.01 9.66 24.59 TXV
7/8
TEM4A0C49, TEM4B0C60
57.40 23.50 21.50 21.75 4.68 9.66 27.19 TXV
7/8
All dimensions are in inches
