Trane Tracer CH530 User Manual

DynaView Interface
19RLC-SVU05A-E4
Reports Screen
The Reports tab will allow a user to
select from a list of possible reports
headings (i.e. Custom, ASHRAE
Guideline 3, Refrigerant, etc.).
Each report will generate a list of
status items as defined in the
following tables.

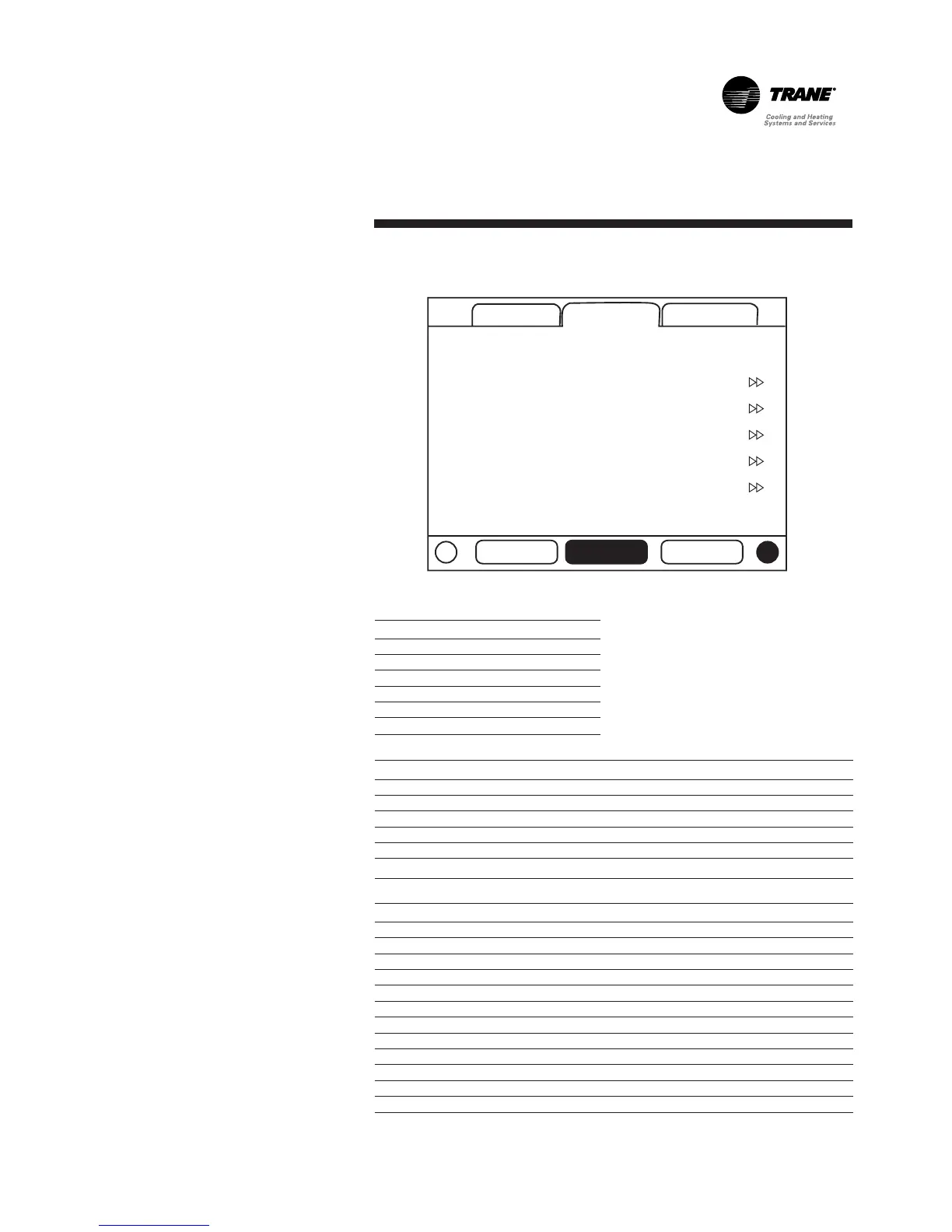

Figure 9 - Reports screen
Table 3- Reports Screen
Report Menu
Description
1. Evaporator
2. Condenser
3. Compressor
4. ASHRAE Chiller Log
5. Historic Diagnostics
Report name: System Evaporator
<| Back System Ckt1 Ckt2
<scroll up/down buttons>
Description Resolution Units Dependencies
1. Evap Entering Water Temperature + XXX.X Temperature
2. Evap Leaving Water Temperature + XXX.X Temperature
3. Evap Water Flow Switch Status (Flow, No Flow) Enum
Report name: Circuit Evaporator
<| Back System Ckt1 Ckt2
<scroll up/down buttons>
Description Resolution Units Dependencies
1. Evap Entering Water Temperature + XXX.X Temperature
2. Evap Leaving Water Temperature + XXX.X Temperature
3. Evap Sat Rfgt Temp + XXX.X Temperature
4. Suction Pressure XXX.X Pressure
5. Evap Approach Temp + XXX.X Temperature
6. Evap Water Flow Switch Status (Flow, No Flow) Enum
7. Expansion Valve Position XXX.X Percent
8. Expansion Valve Position Steps XXXX Steps
9. Evaporator Liquid Level XX.X Height
Main Reports Settings
Auto Stop Alarms
Evaporator
Condenser
Compressor
ASHRAE Chiller Log
Historic Diagnostics

Trane Tracer CH530 Specifications

General

Series	Tracer CH530
Input Voltage	24 VAC
Communication Protocols	BACnet, LonWorks
Compatibility	Trane
Product Type	Chiller controller
Memory	Flash memory for program storage
Dimensions	Varies depending on the specific model and enclosure. (Example: Approximately 250mm x 200mm x 100mm)
Weight	Varies by configuration
