8
4 UNT-PRC002-GB
Technical Data
FWD 08 12 20 30 45
Power supply (V/Ph/Hz) 230/1/50
Capacities
Cooling capacity on water (1) (kW) 5,2 8,3 15 18,8 30,1
Heating capacity on water (2) (kW) 6,3 11,9 18,9 20,9 38,2
Fan motor (type) 2 x direct drive centrifugal
Fan power input (3) (kW) 0,23 0,46 0,65 1,04 1,51
Current amps (3) (A) 1,1 2,2 3,1 4,7 5,5
Start-up amps (A) 3,2 5,5 9,3 14,1 16,5
Air flow
minimum (m
3
/h) 490 980 1400 1800 2700
nominal (m
3
/h) 820 1650 2300 3000 4500
maximum (m
3
/h) 980 1970 2600 3600 5400
Main coil
Water entering/leaving connections (type) ISO R7 rotating female
(Dia) 3/4" 3/4" 1 1/2" 1 1/2" 1 1/2"
Electric heater (accessory for blower only)
Electric power supply (V/Ph/Hz) 230/1/50 230/1/50 or 400/3/50 400/3/50 400/3/50 400/3/50
Heating capacity (kW) 2/4 8 10 12 12
Hot water coil (accessory for blower only)
Heating capacity (4) (kW) 6,3 12 17,4 22,4 34,5
G2 filter (filter box accessory)
Quantity 2 2 2 2 2
Dimensions ( LxWxth) (mm) 386x221x8 486x271x8 586x321x8 586*421*8 586*621*8
G4 filter (filter box accessory)
Quantity - 2 2 2 2
Dimensions ( LxWxth) (mm) - 486x264x48 586x314x48 586*414*48 586*614*48
Condensate pump (accessory) (type) Centrifugal
Water flow - lift height (l/h - mm) 24 - 500
Not available for FWD30 and FWD45
Sound level (L/M/H speed)
Sound pressure level (5) (dB(A)) 36/40/43 38/41/44 46/50/53 47/52/57 47/52/58
Sound power level (5) (dB(A)) 46/50/53 48/51/54 56/60/63 57/62/67 57/62/68
Unit dimensions
Width x Depth (mm) 890 x 600 1090 x 710 1290 x 820 1290 x 970 1290 x 1090
Height (mm) 250 300 350 450 650
Shipped unit dimensions
Width x Depth (mm) 933 x 644 1133 x 754 1333 x 864 1333 x 1008 1333*1133
Height (mm) 260 310 360 460 660
Weight (kg) 32 46 61 76 118
Colour galvanised steel
Recommended fuse size
Unit alone (aM/gI) (A) 8/16 8/16 8/16 8/25 8/25
Unit with electric heater (gI) (A) 16 (2kW),25 (4kW) 40 (230V),3*16 (400V) 3*20 3*25 3*25
(1) Conditions: Water entering/leaving temperature: 7/12 °C, Air inlet temperature 27/19°C DB/WB - Nominal air flow
(2) Conditions: Water entering/leaving temperature: 50/45 °C, Air inlet temperature 20°C DB - Nominal air flow
(3) At high speed with nominal air flow.
(4) Water entering/leaving temperature 90/70 °C, air inlet temperature 20 °C DB, Nominal air flow.
(5) A rectangular glass wool duct 1m50 long is placed on the blower.The measurement is taken in the room containing the blower unit.
Heat exchanger operating limits:
FWD:
*water temperature: max 100° C
*absolute service pressure: min 1 bar/max 11 bars
Accessories - Hot water coil:
*water temperature: min. +2° C/max. 100° C
*absolute service pressure: min 1 bar/max 11 bars
CG-SVU007D-GB
Tracer CH535 module connections Terminals
TRACER CH535 offers customer the possibility to use inputs or outputs in order to:
use an external water setpoint reset using an analog input (option),
use an auxiliary setpoint (option),
connect a remote on/off of the circuit/unit (standard),
connect a remote Cooling/Heating switch (standard),
return a circuit fault (option),
receive unit capacity percent (option).

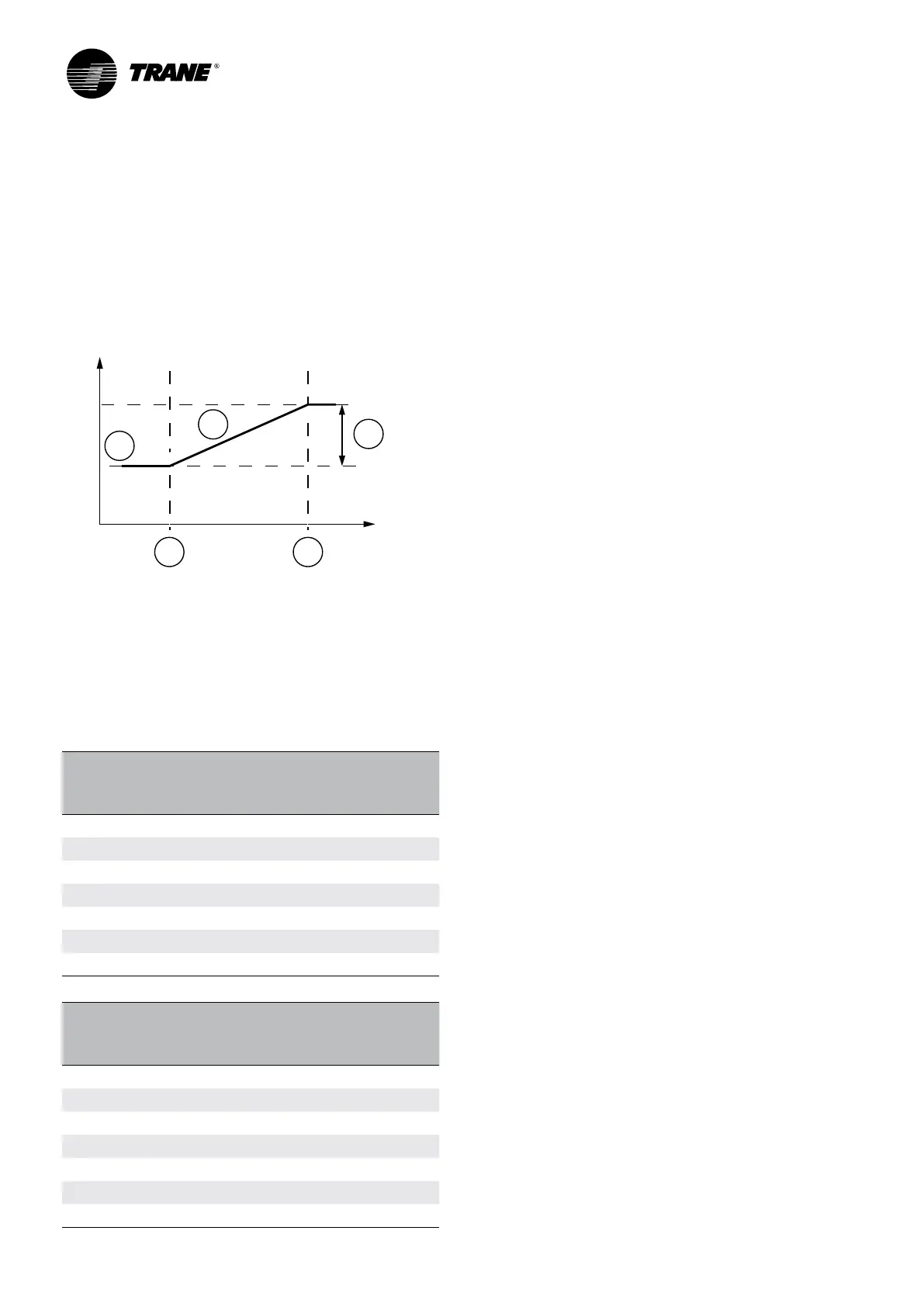

Note: External water setpoint based on an external signal input (0-20mA or 4-20mA), it will be possible to offset the
active setpoint from 0°C to 20°C. This function can be used in conjunction with the automatic setpoint reset function.
5
1
4
2 3
Water setpoint
Ambient
temperature
1 = Leaving water temperature setpoint
2 = Minimum value
3 = Maximum value
4 = Reset = 20°C
5 = Active setpoint
Note: External demand limit setpoint based on an external signal input (0-20mA or 4-20mA), it will define the
number of compressors allowed to start.
Table 3 –
External demand limit setpoint allowances
Nb of CMP allowed
Percent
Current
0-20mA
Simplex
Duo
Simplex
Trio
Duplex
0.0% 0 1 1 1
25.0% 5 1 1 2
33.3% 6.66 1 2 2
50.0% 10 2 2 3
66.7% 13.34 2 3 3
75.0% 15 2 3 4
100.0% 20 2 3 4
Nb of CMP allowed
Percent
Current
4-20mA
Simplex
Duo
Simplex
Trio
Duplex
20.0% 4 1 1 1
40.0% 8 1 1 2
46.7% 9.33 1 2 2
60.0% 12 2 2 3
73.4% 14.67 2 3 3
80.0% 16 2 3 4
100.0% 20 2 3 4
