Installer’s Guide
LIGHTING INSTRUCTIONS
▲
WARNING
!
SAFETY HAZARD
DO NOT attempt to manually light the burner.
Failure to follow this warning could result in property
damage, personal injury or death.
Lighting instructions appear on each unit. Each instal-
lation must be checked out at the time of initial start up
to insure proper operation of all components. Check out
should include putting the unit through one complete cycle
as outlined below.
Turn on the main electrical supply and set the thermostat
above the indicated temperature. The ignitor will auto-
matically heat, then the gas valve is energized to permit
the flow of gas to the burners. After ignition and flame is
established, the flame control module monitors the flame
and supplies power to the gas valve until the thermostat is
satisfied.
See Table 19 & 20 for help in selecting orifices if orifice
change is required. Furnace input rate and temperature
rise should be checked again after changing orifices to con-
firm the proper rate for the altitude.
Installations above 4,000 feet may require a pressure
switch change. If required, use the BAYHALT*** Kit (High
Altitude Accessory Kit) listed in PRODUCT DATA.
TABLE 19
REINSTALLATION OF THE BURNER BOX COVER
Figure 56 shows the correct way to reinstall the burner box
cover if adjustment or replacement of the flame sensor, hot
surface igniter, or main burner orifices have required re-
moval of the cover.
TABLE 20
▲
WARNING
!
CARBON MONOXIDE POISONING HAZARD
Failure to follow the installation instructions for the vent-
ing system being placed into operation could result in
carbon monoxide poisoning or death.
START UP AND ADJUSTMENT
PRELIMINARY INSPECTIONS
With gas and electrical power “OFF”
1. Duct connections are properly sealed
2. Filters are in place
3. Venting is properly assembled
4. Blower door is in place
Flip the switch on main gas valve within the unit to the
“OFF” position. Turn the external gas valve to “ON”. Purge
the air from the gas lines. After purging,
Check all gas connections for leaks with a soapy solution
— DO NOT CHECK WITH AN OPEN FLAME. Allow 5
minutes for any gas that might have escaped to dissipate.
LP Gas being heavier than air may require forced venti-
lation. Flip the switch on the gas valve in the unit to the
“ON” position.

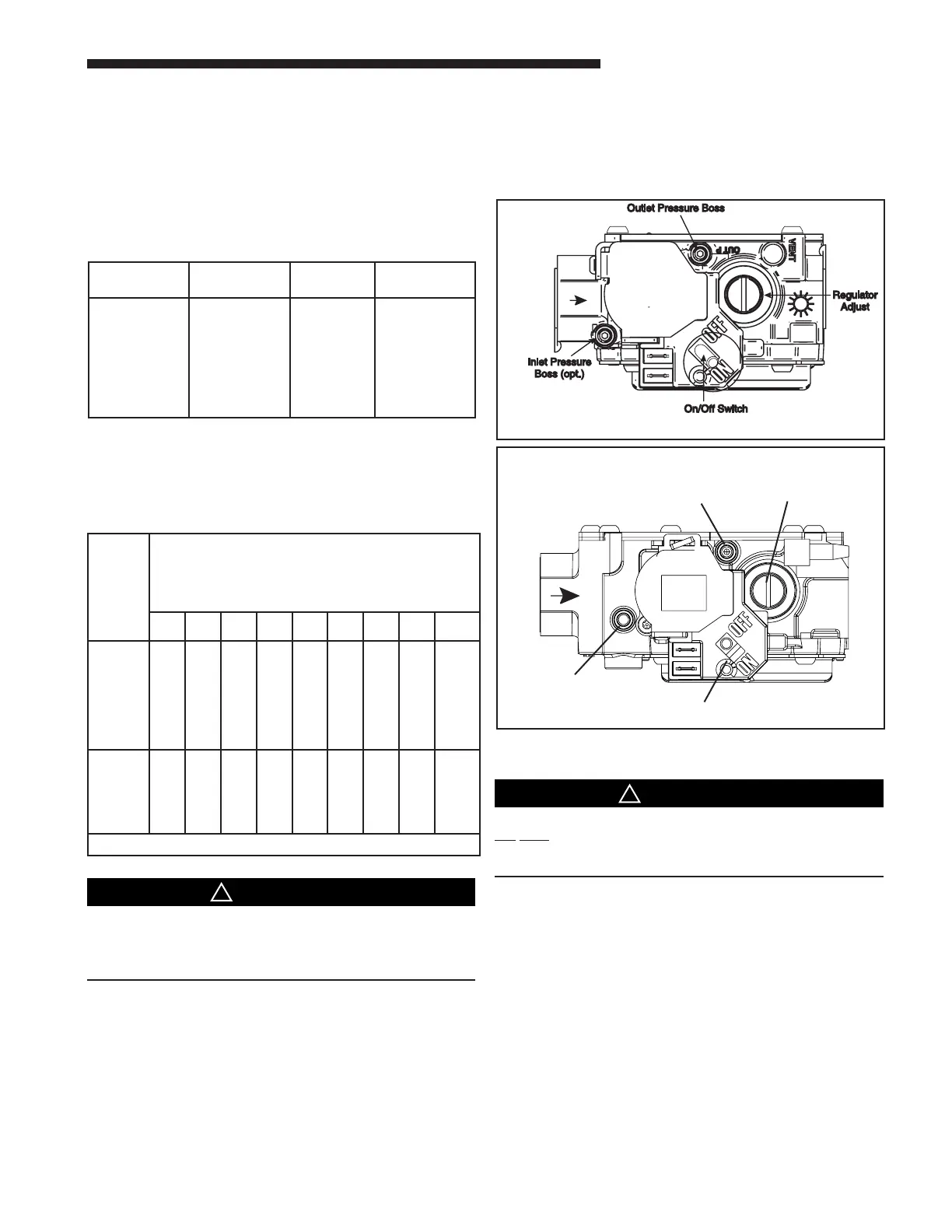

I
White-Rodgers 36G gas valve
White-Rodgers 36J gas valve
Outlet Pressure Boss
Regulator
Adjustment
Inlet Pressure
Boss (opt.)
On/Off Switch
Outlet Pressure Boss
On/Off Switch
Inlet Pressure
Boss (opt.)
Regulator
Adjust
U
PART NUMBERS FOR REPLACEMENT ORIFICES
DRILL
SIZE
PART
NUMBER
DRILL
SIZE
PART
NUMBER
44
45
46
47
48
49
50
ORF00501
ORF00644
ORF00909
ORF00910
ORF01099
ORF00503
ORF00493
54
55
56
57
58
59
ORF00555
ORF00693
ORF00907
ORF00908
ORF01338
ORF01339
Orifice
Twist
Drill
Size If
Installed
At Sea
Level
ALTITUDE ABOVE SEA LEVEL and Orifice Required
At Other Elevations
2000 3000 4000 5000 6000 7000 8000 9000 10000
42
43
44
45
46
47
48
42
44
45
46
47
48
49
43
44
45
47
47
48
49
43
44
45
47
47
49
49
43
45
46
47
48
49
50
44
45
47
48
48
49
50
44
46
47
48
49
50
50
45
47
48
49
49
50
51
46
47
48
49
50
51
51
47
48
50
50
51
52
52
54
55
56
57
58
54
55
56
58
59
55
55
56
59
60
55
55
57
59
60
55
56
57
60
61
55
56
57
60
62
55
56
58
61
62
56
56
59
62
63
56
56
59
63
63
56
57
60
63
64
From National Fuel Gas Code - Table F-4
