Trane TUHMC100ACV4VB User Manual

29
Pub. No. 22-1840-14
Ø 7/8” HOLE WITH PLUG CONDENSATE DRAIN
1-3/4” X 2-13/32” CUTOUT HORIZONTAL DRAIN
Ø 7/8” HOLE WITH PLUG CONDENSATE DRAIN (ALTERNATIVE)
28-1/”4
Ø 1-5/8” HOLE WITH PLUG
22-11/16”
Ø 1-5/8” HOLE WITH PLUG
NOTES: 1. DIAMETER OF VENT PIPE MAY BE LIMITED TO2-1/2"OR3"ONSOMEMODELSATDIFFERENT ALTITUDES. REFER TO THE VENT LENGTH TABLE FOR PROPER APPLICATION.

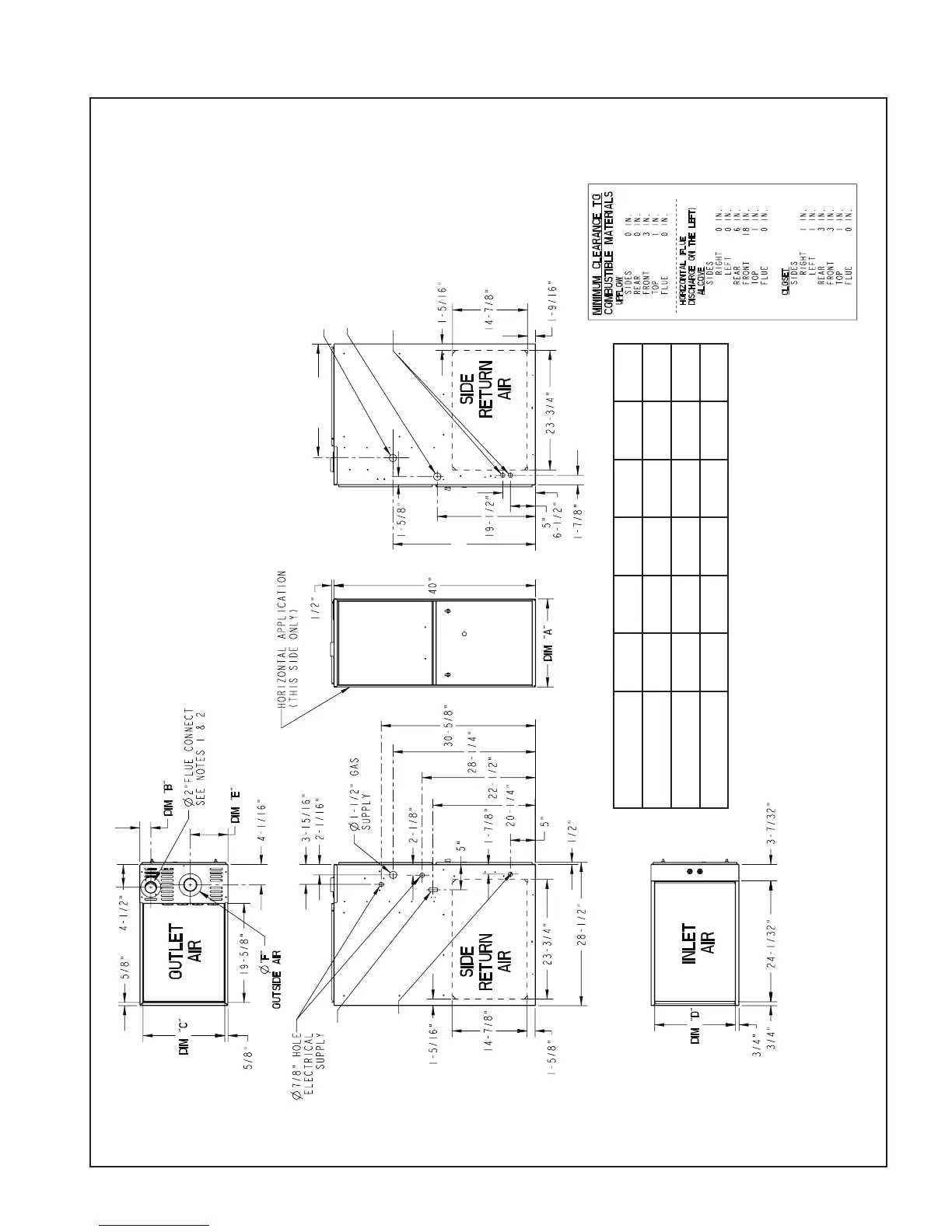

TUHM-ACV Outline Drawing
(ALL DIMENSIONS ARE IN INCHES)
MODEL
(SEE NOTE 1)
DIM "A" DIM "B" DIM "C" DIM "D" DIM "E" DIM "F"
*UHMB060ACV3VB *UHMB080ACV3VB
17-1/2" 2-1/4" 16-1/4" 16" 7-1/2" 2"
*UHMC100AC4VB 21" 2-1/2" 19-3/4" 19-1/2" 9" 3" *UHMD120AC5VB 24-1/2" 2-15/16" 23-1/4" 23" 10" 3"
