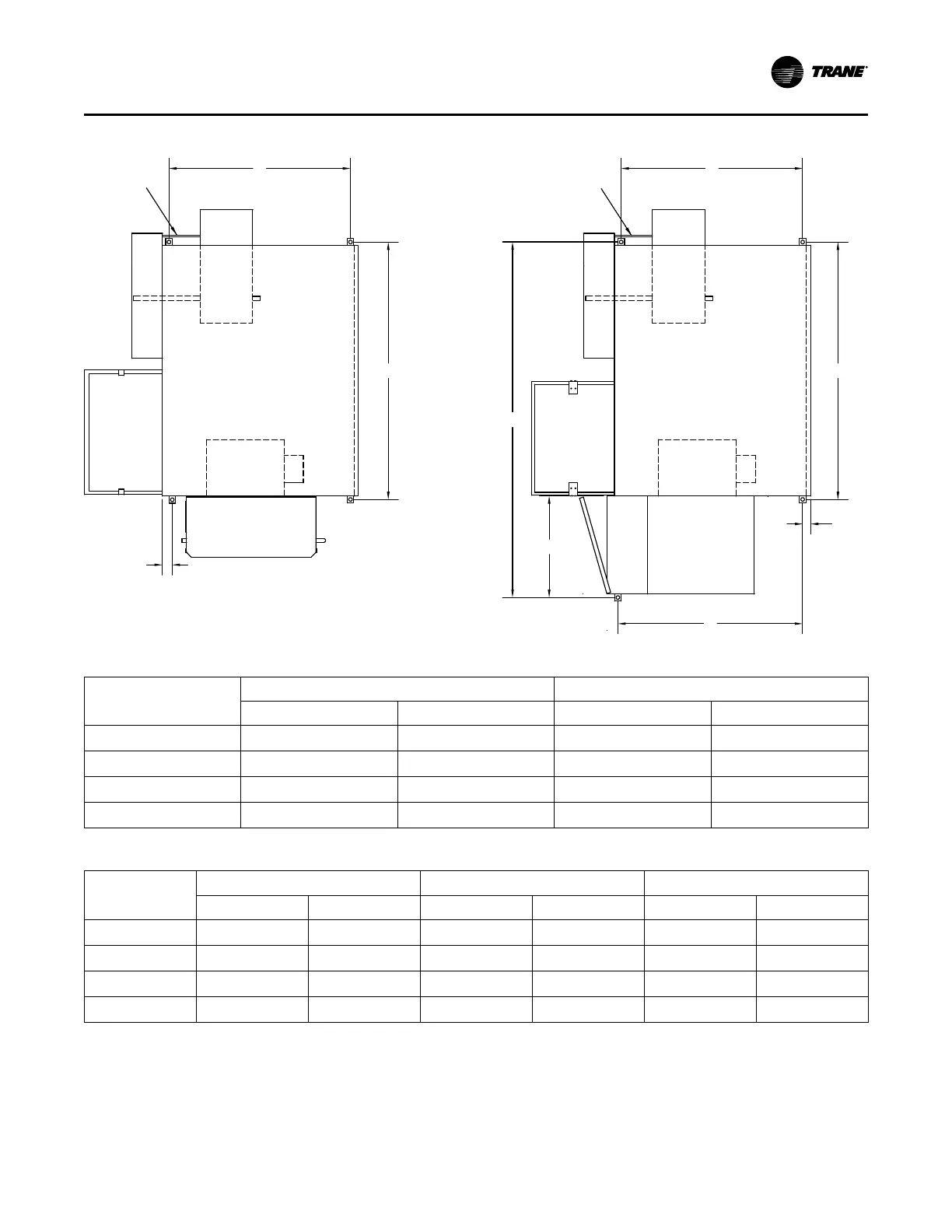

Figure 13. Series hanger bracket locations
Flow Ring
tubing
Flow Ring
tubing
OPTIONAL
SUPPRESSOR
OPTIONAL
SUPPRESSOR
Air
Valve
Air
Valve
Water Coil
Electric Heater
A
B
G
F
1.625”
(41 mm)
A
1.625”
(41 mm)
B
H
Table 3. Series hanger bracket location dimensions
Fan Size
A B
in.
mm
in.
mm
02SQ 18.75 476 41.2 1041
03SQ, 04SQ 20.75 527 41.2 1041
05SQ 26.75 679 41.2 1041
06SQ, 07SQ 27.25 692 41.2 1041
Table 4. Series hanger bracket location dimensions — electric heat only
Fan Size
F G H
in.
mm
in.
mm
in.
mm
02SQ 20.13 511 53.75 1365 19.0 483
03SQ, 04SQ 23.88 606 59.75 1517 19.0 483
05SQ 28.97 736 59.75 1517 19.0 483
06SQ, 07SQ 29.88 759 58.25 1479 17.5 445
