BAS-SVX40B-EN 31
Appendix: Using the Tracer™ TU Service Tool with Wireless Networks

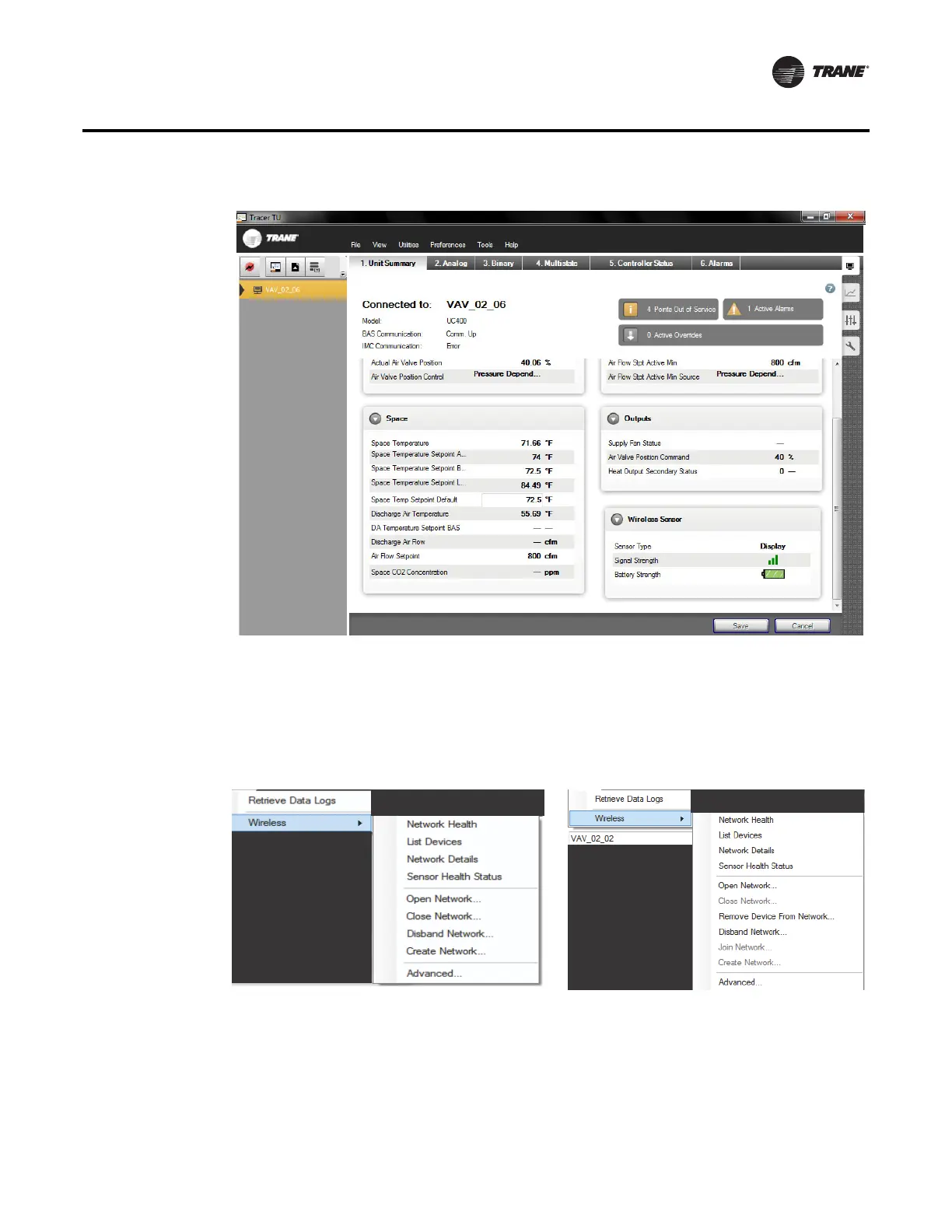

Figure 18. Connected device: Unit Summary screen
Wireless Menu
After connecting to a device, a Wireless menu becomes available for wireless network
management.To access the menu, select Wireless from the Tools menu.
Figure 19. Wireless menu
TheseTools menu options perform the following functions:
Network Health
Displays the Wireless Network Summary Report, shown in Figure 20, which presents unit activity
information including:
• The number of timesTracer SC has attempted to communicate with each device
• The failure rate
Tracer TU attached to Tracer SC
Tracer TU attached to a unit controller
