Trane XB 13 User Manual

12 22-1769-07
Dimensions

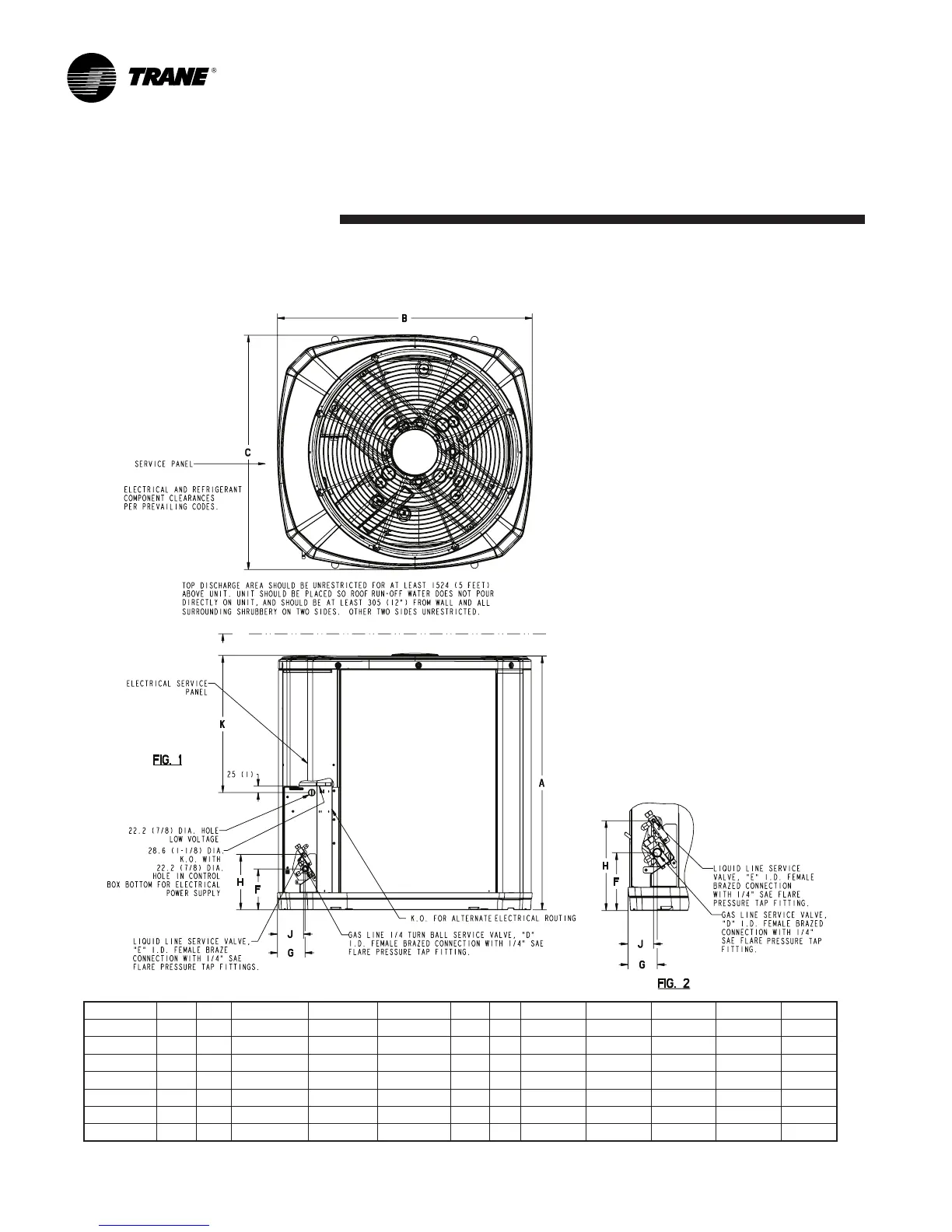

2TTB3 Outline Drawing
NOTE: ALL DIMENSIONS ARE IN MM (INCHES)
FromDwg.21D153074Rev.10
MODELS BASE FIG. A B C D E F G H J K
2TTB3018A 2 2 651(25-5/8) 724(28-1/2) 651(25-5/8) 5/8 1/4 127(5) 57(2-1/4) 181(7-1/8) 44(1-3/4) 457(18)
2TTB3024A 2 2 832(32-3/4) 724(28-1/2) 651(25-5/8) 3/4 5/16 137(5-3/8) 65(2-5/8) 210(8-1/4) 57(2-1/4) 457(18)
2TTB3030A 3 2 832(32-3/4) 829(32-5/8) 756(29-3/4) 3/4 5/16 137(5-3/8) 86(3-3/8) 210(8-1/4) 79(3-1/8) 508(20)
2TTB3036A 3 2 832(32-3/4) 829(32-5/8) 756(29-3/4) 7/8 3/8 137(5-3/8) 86(3-3/8) 210(8-1/4) 79(3-1/8) 508(20)
2TTB3042A 4 1 841(33-1/8) 946(37-1/4) 870(34-1/4) 7/8 3/8 152(6) 98(3-7/8) 219(8-5/8) 86(3-3/8) 508(20)
2TTB3048A 4 1 1045(41-1/8) 946(37-1/4) 870(34-1/4) 1-1/8 3/8 152(6) 98(3-7/8) 219(8-5/8) 86(3-3/8) 508(20)
2TTB3060A 4 1 1045(41-1/8) 946(37-1/4) 870(34-1/4) 1-1/8 3/8 152(6) 98(3-7/8) 219(8-5/8) 86(3-3/8) 508(20)
