Trane XR95 Performance Data Sheet

Trane XR95
18 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Page #16 background image
16 22-1836-07
From Dwg. C341884
Dimensions
1. *UH1D120A9601 AND *UH1B080A9421 REQUIRE 3” DIAMETER VENT PIPE.
*UH1C100A9481 & UH1D100A9601 REQUIRES 2-1/2” OR 3”
DIAMETER VENT PIPE.
2. DIAMETER OF VENT PIPE MAY BE LIMITED TO 2-1/2” OR 3”
ON SOME MODELS AT DIFFERENT ALTITUDES. REFER TO THE
VENT LENGTH TABLE FOR PROPER APPLICATION.

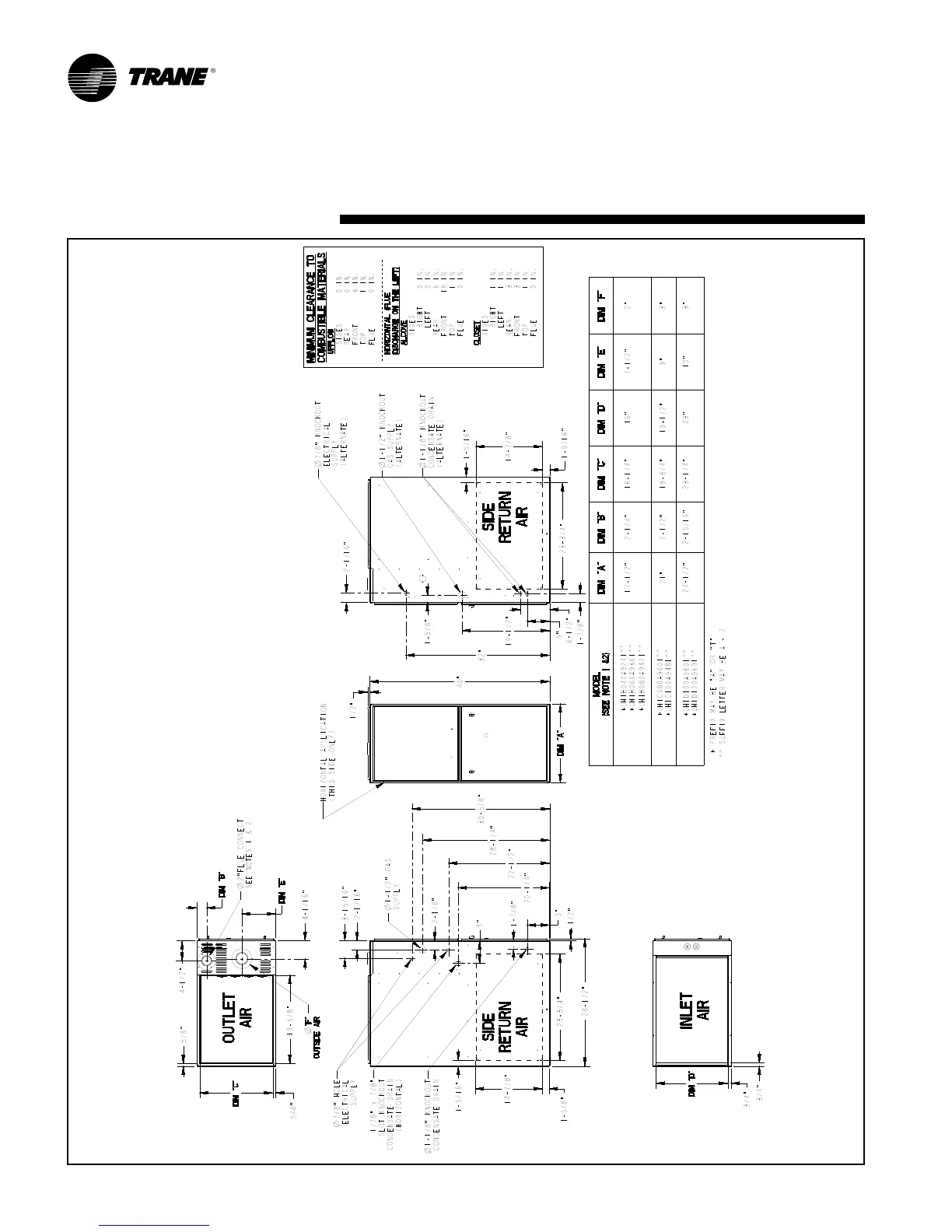

*UH1 OUTLINE DRAWING, UPFLOW / HORIZONTAL
(ALL DIMENSIONS ARE IN INCHES)
