Triumph A9508184 User Manual

13 of 20
Installation of the Upper Mounts
Note:
• For Tiger 800 and Tiger 800XC up to VIN 583614,
the rear rack has been removed during
installation of the pannier third mounts,
therefore continue from step 2.
• For Tiger 800, Tiger 800XC, Tiger 800 XR,
Tiger 800 XR
X, Tiger 800 XCX, Tiger 800 XRT,
Tiger 800 XC
A, Tiger 800 XRX LRH, Tiger XR,
Tiger XRx, Tiger XC and Tiger XCx from
VIN 583615 continue from step 1.

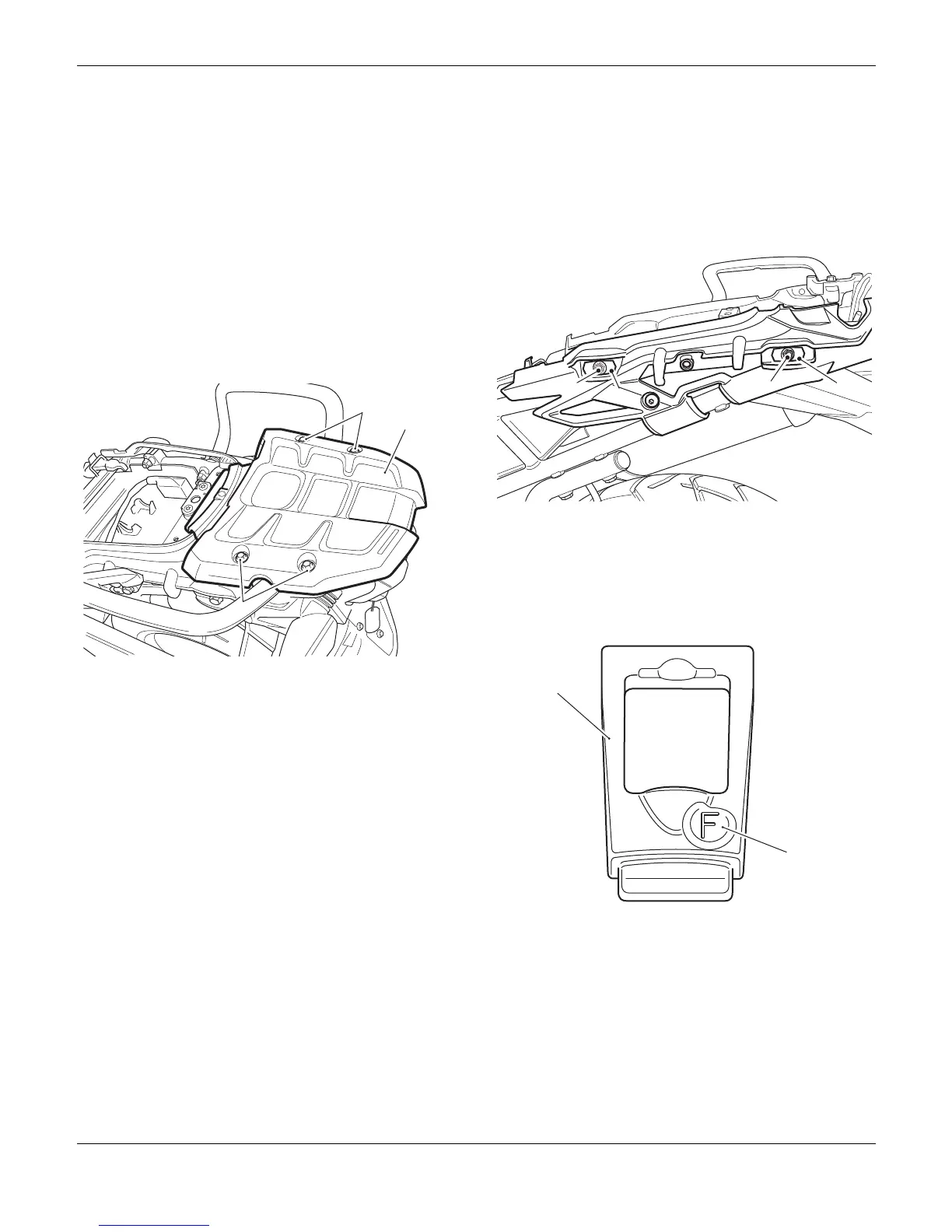

1. Remove the four fixings, retain for reuse and
remove the rear rack moulding.
1. Rear rack
2. Fixings
2. Remove the two nuts and bolts and remove the
two left hand pannier mounting plates.
• Retain the plates for reuse
• Retain the bolts for reuse if the motorcycle is
to be returned to its original condition
• Discard the nuts.
1. Bolts/nuts (nuts not shown)
2. Pannier mounting plates
Note:
• The front upper pannier mounts are identified by
an 'F' on the underside face, as shown.
1. Front upper pannier mount
2. 'F' marking
1
2
2
2
2
1
1
2
1

Triumph A9508184 Specifications

General

Brand	Triumph
Model	A9508184
Category	Motorcycle Accessories
Language	English

Summary

Pannier Third Mount and Cable Installation

Preparation and Component Removal

Motorcycle prep, seat removal, and component disassembly for third mount and cable installation.

Moulding Modification and Cable Routing

Using templates to drill battery tray moulding and routing the pannier cable through the motorcycle.

Securing Mounts and Final Connections

Attaching pannier third mounts, applying protective film, and connecting the cable to the rocker arm.

Upper Pannier Mount Installation

Rear Rack and Mounting Plate Removal

Removing existing components to prepare for fitting the upper pannier mounts.

Attaching Upper Pannier Mounts

Assembling and securing the front and rear upper pannier mounting brackets.

Pannier Cable Adjustment

Preparing for Adjustment

Positioning the motorcycle and accessing the cable adjuster for pannier cable setup.

Setting Cable Tension and Operation

Adjusting pannier cable tension, checking operation, and fitting the cable cover.

Rear Side Reflector Fitting

Reflector Preparation and Application

Cleaning pannier surfaces and applying self-adhesive rear side reflectors.

Pannier Lock Barrel Fitment and Mounting

Lock Barrel Installation

Inserting and securing the lock barrels into the panniers.

Pannier Mounting and Operation

Mounting panniers, securing them, and understanding their lock/unlock mechanism.
