Lock Barrel Fitment
Note:
• Once fitted the lock barrel cannot be removed.
1. Take a lock barrel and key (supplied with the
motorcycle), insert the key into the barrel and
push the barrel into position in the pannier until
it clicks into place.
Note:
• The lock barrel will only fit one way.
2. Check the operation of the lock barrel.
3. Turn the key to the locked position and remove
the key.
4. Fit a lock barrel to the remaining pannier in the
same manner.
Mounting the Panniers
To install each pannier:
Note:
• The same procedure can be followed to remove
and mount the left hand or the right hand
panniers.

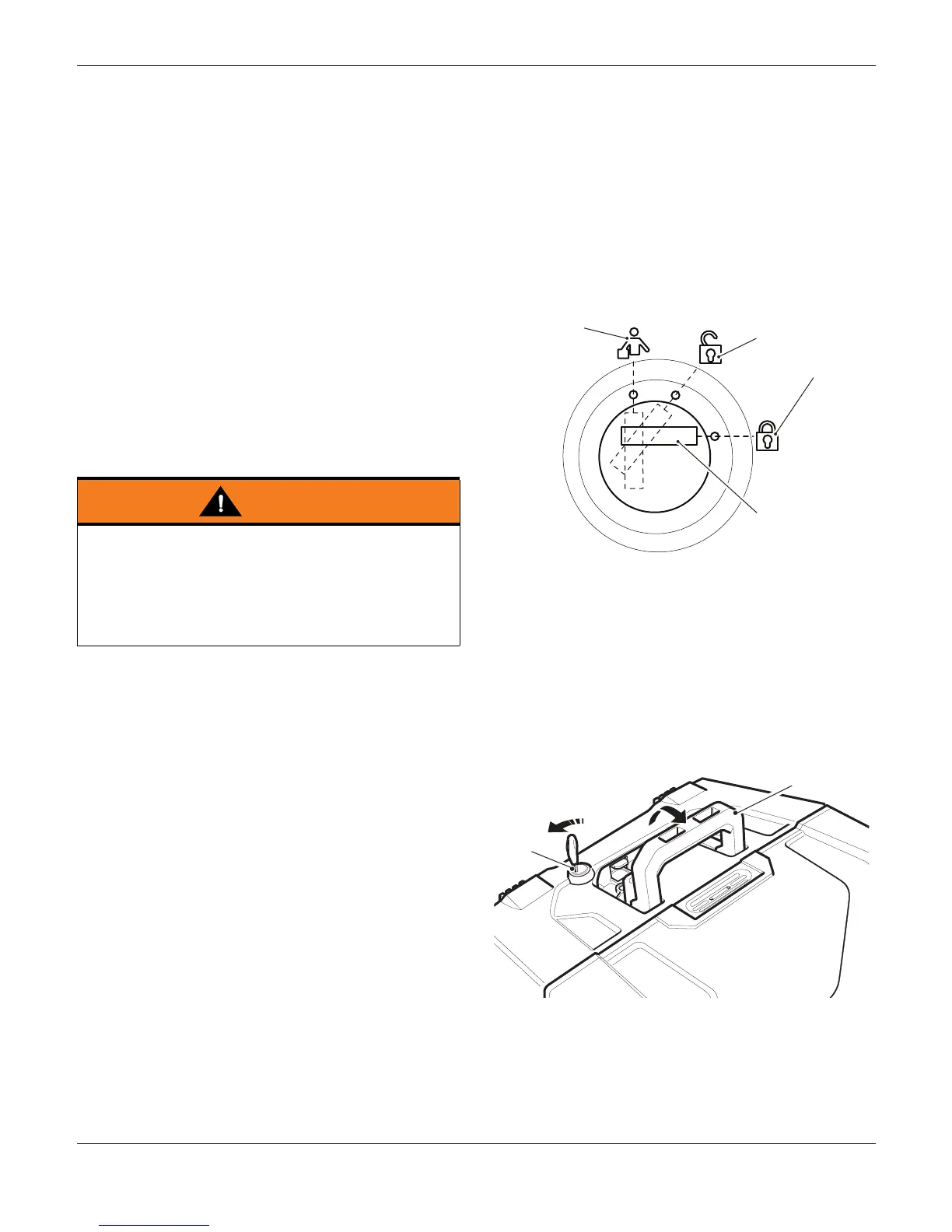

• The pannier is marked in three positions around
the lock barrel. To lock, open or release the
panniers, the key slot must align with the
corresponding symbols around the barrel as
shown.
1. Key slot (shown in the LOCK position)
2. Lock position symbol
3. Unlock position symbol
4. Release position symbol
1. Insert the key into the lock. Turn the key to the
RELEASE position and lift the carrying handle to
its fully raised position.
1. Lock
2. Carrying handle
2. Position the pannier to the motorcycle and
engage the fixed hooks of the pannier with the
pannier mounting points.
Warning
The two panniers fitted to this motorcycle are
designed to be fitted as a pair. Never ride the
motorcycle with only one pannier installed. Riding
the motorcycle with one pannier installed may
cause the motorcycle to become unstable leading to
loss of control and an accident.
2
3
4
1
1
2
4
