5 of 20

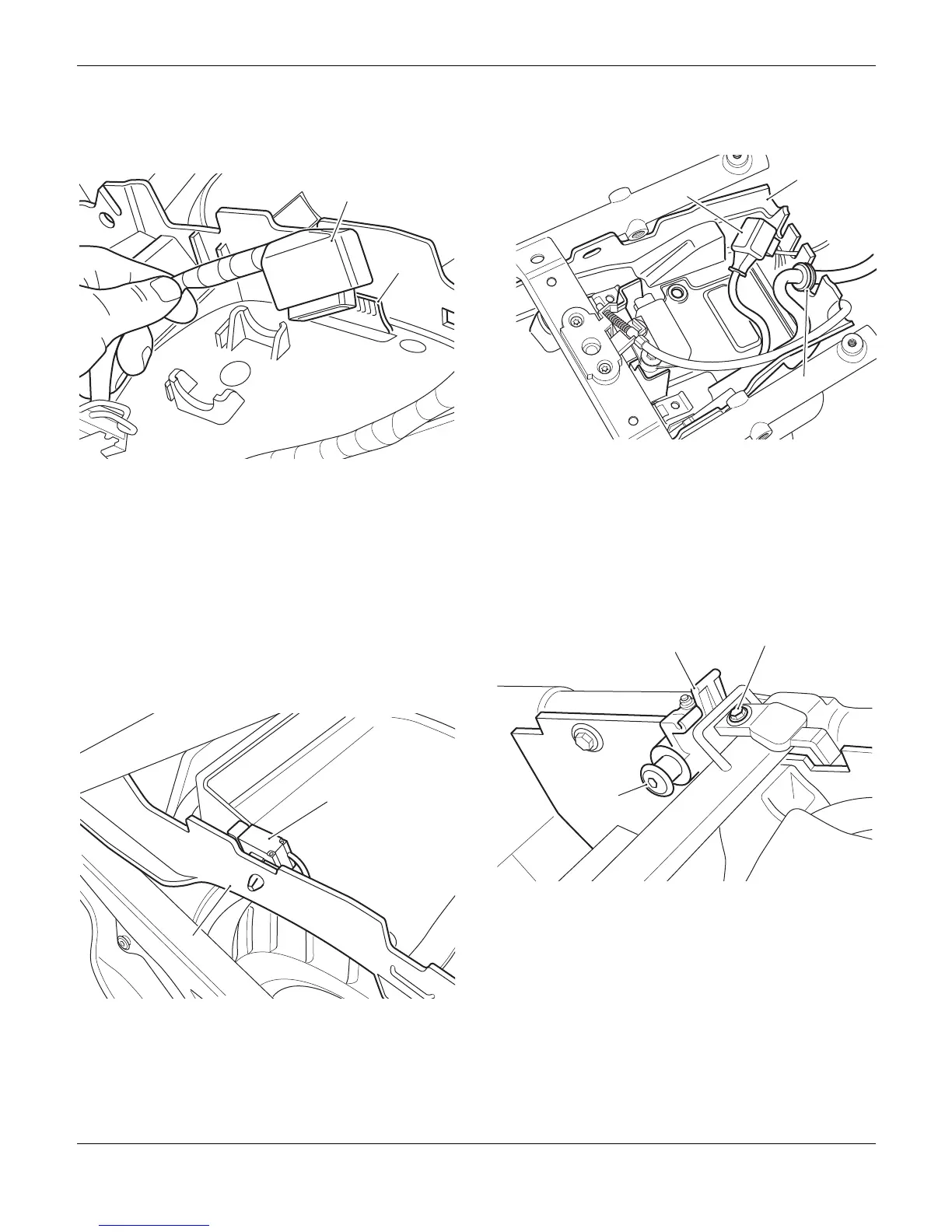

3. Remove the diagnostic socket from its location
on the battery tray moulding. Move the
diagnostic socket and wiring harness away from
the side of the battery tray moulding.
1. Diagnostic socket
2. Location, battery tray moulding
4. Remove the following components, as described
in the Service Manual:
• Battery
•Rear light
• Silencer.
5. Remove the tool kit.
6. Detach the twelve-way alarm connector from the
battery tray moulding and position aside.
1. Battery tray moulding
2. Twelve-way alarm connector
7. Carefully release the relay and wiring harness
grommet from their location at the rear of the
battery tray moulding.
1. Relay
2. Wiring harness grommet
3. Battery tray moulding
8. Remove the shouldered bolts and M6 x 20 mm
screws securing the seat hook mouldings and
remove the seat hook mouldings. Retain the seat
hook mouldings and fixings for reuse.
1. Seat hook moulding (right hand shown)
2. Shouldered bolt (right hand shown)
3. Screw, M6 x 20 mm (right hand shown)
