Instrument Panel Layout
Bonneville T100, Bonneville T120, Bonneville T120 Ace,
Bonneville T120 Diamond, Speed Twin, Thruxton and Thruxton R
2
3
4
5
6
78
9
11
12
13
14
16
18
20
22
10
21
19
17

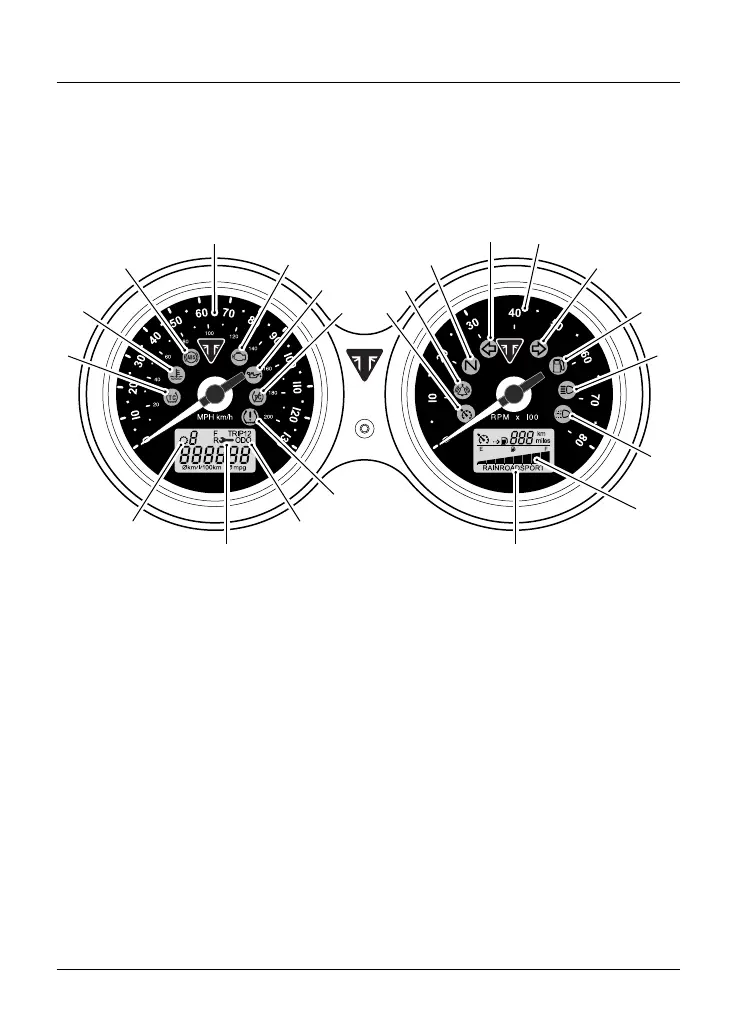

1. Traction Control (TC) indicator light
2. High coolant temperature warning light
3. Anti-lock Brake System (ABS) warning
light
4. Speedometer
5. Engine management Malfunction Indicator
Light (MIL)
6. Low oil pressure warning light
7. Traction Control (TC) disabled warning
light
8. Cruise control indicator light (if equipped)
9. Immobilizer/Alarm indicator light (alarm is
an accessory kit)
10. Neutral indicator light
11. Left hand turn signal light
12. Tachometer
13. Right hand turn signal light
14. Low fuel level indicator light
15. High beam indicator light
16. Daytime Running Lights (DRL) indicator
light (if equipped)
17. Rider mode display (if equipped)
18. Range to empty display
19. Tire pressure warning light (if equipped
with Tire Pressure Monitoring System
(TPMS))
20. Odometer/Trip computer
21. Service interval indicator
22. Gear position indicator
