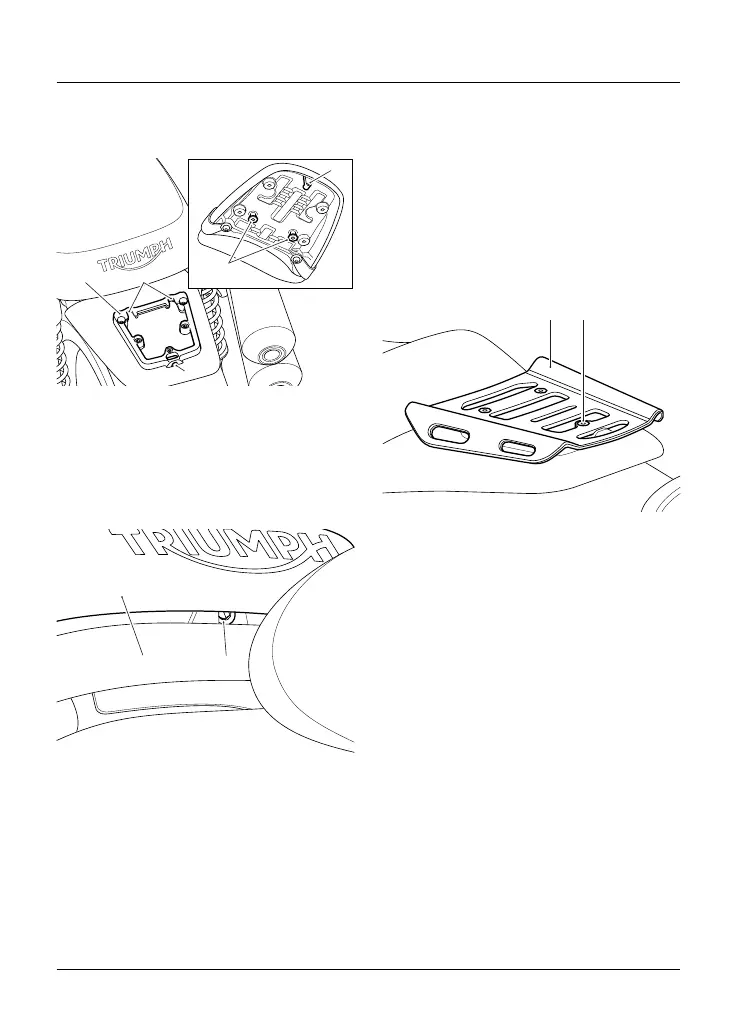

• Gently push the seat forward until
the rear locating lug locates into its
hole on the luggage rack subframe.
5
2
3
1
1. Luggage rack subframe
2. Front locating lugs
3. Front locating lug slots
4. Rear locating lug
5. Rear locating lug hole
• Secure the seat with its fastener
and tighten to 27 lbf in (3 Nm).
2
1
1. Passenger seat
2. Fastener
• Grasp the seat and make sure that
it is securely retained.
Luggage Rack
Street Scrambler Only
Note
If a luggage rack is equipped, the rider’s
seat can be removed without removing
the luggage rack.
Removal
21
1. Luggage rack
2. Screw
To remove the luggage rack:
• Remove the screw securing the
luggage rack to the luggage rack
subframe.
• Lift the luggage rack up from the
back and slide rearwards to remove
it from the luggage rack subframe.
Installation
To install the luggage rack:
• Make sure that the rider’s seat is
correctly installed.
• Align the front locating lugs on the
luggage rack to their locating slots
on the luggage rack subframe.
