Trojan POWER GYM 150 User Manual

9
10309

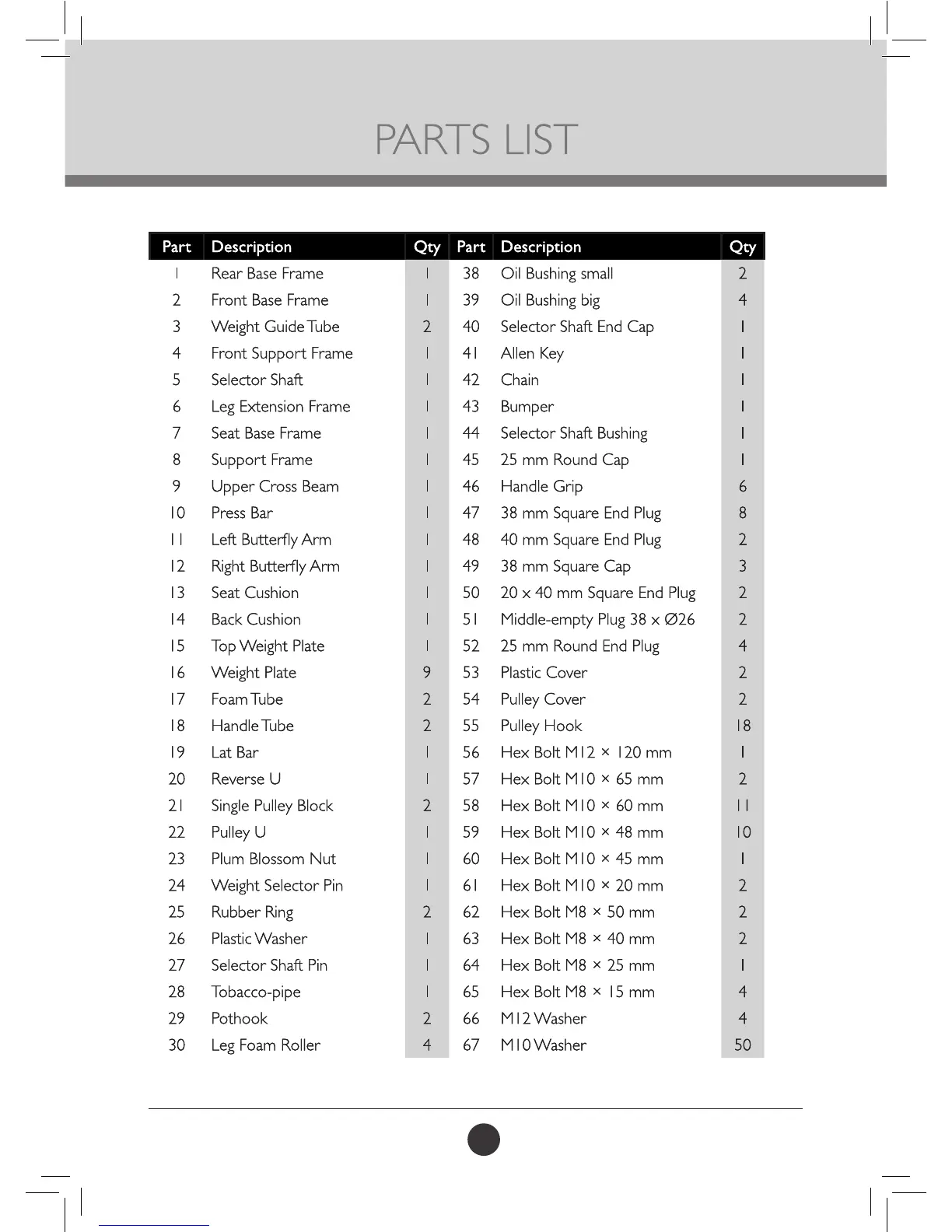

Part Description Qty Part Description Qty
1 Rear Base Frame 1 38 Oil Bushing small 2
2 Front Base Frame 1 39 Oil Bushing big 4
3 Weight Guide Tube 2 40 Selector Shaft End Cap 1
4 Front Support Frame 1 41 Allen Key 1
5 Selector Shaft 1 42 Chain 1
6 Leg Extension Frame 1 43 Bumper 1
7 Seat Base Frame 1 44 Selector Shaft Bushing 1
8 Support Frame 1 45 25 mm Round Cap 1
9 Upper Cross Beam 1 46 Handle Grip 6
10 Press Bar 1 47 38 mm Square End Plug 8
11 Left Buttery Arm 1 48 40 mm Square End Plug 2
12 Right Buttery Arm 1 49 38 mm Square Cap 3
13 Seat Cushion 1 50 20 x 40 mm Square End Plug 2
14 Back Cushion 1 51 Middle-empty Plug 38 x Ø26 2
15 Top Weight Plate 1 52 25 mm Round End Plug 4
16 Weight Plate 9 53 Plastic Cover 2
17 Foam Tube 2 54 Pulley Cover 2
18 Handle Tube 2 55 Pulley Hook 18
19 Lat Bar 1 56 Hex Bolt M12 × 120 mm 1
20 Reverse U 1 57 Hex Bolt M10 × 65 mm 2
21 Single Pulley Block 2 58 Hex Bolt M10 × 60 mm 11
22 Pulley U 1 59 Hex Bolt M10 × 48 mm 10
23 Plum Blossom Nut 1 60 Hex Bolt M10 × 45 mm 1
24 Weight Selector Pin 1 61 Hex Bolt M10 × 20 mm 2
25 Rubber Ring 2 62 Hex Bolt M8 × 50 mm 2
26 Plastic Washer 1 63 Hex Bolt M8 × 40 mm 2
27 Selector Shaft Pin 1 64 Hex Bolt M8 × 25 mm 1
28 Tobacco-pipe 1 65 Hex Bolt M8 × 15 mm 4
29 Pothook 2 66 M12 Washer 4
30 Leg Foam Roller 4 67 M10 Washer 50
