FeaturesandControls
Readthis Operator'sManual and safetyrules beforeoperatingyour pressurewasher.
Comparethe illustrations with your pressure washer, to familiarize yourself with the locations of various controls and
adjustments. Savethis manual for future reference.

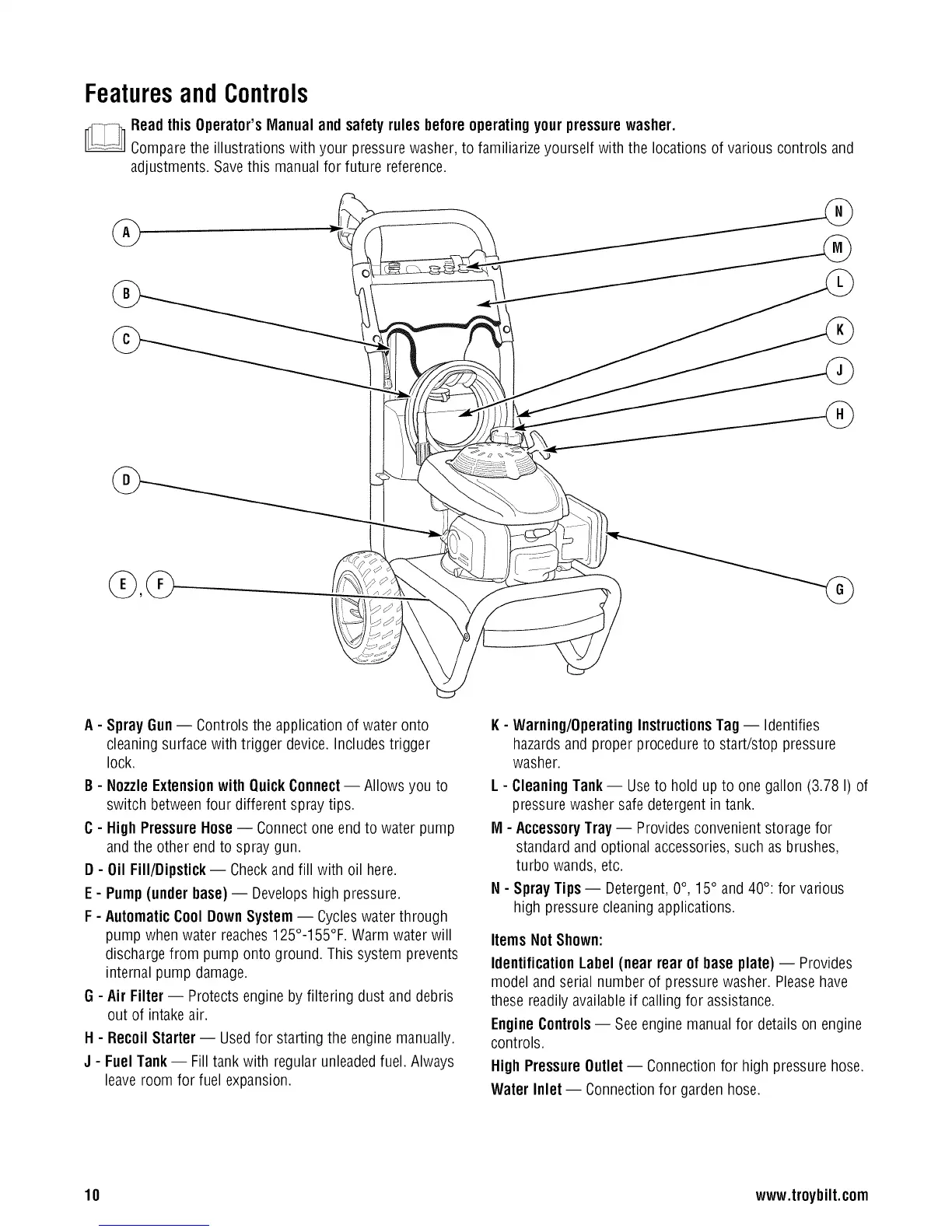

A- Spray Gun-- Controls the application of water onto
cleaning surfacewith trigger device. Includes trigger
lock.
B- Nozzle Extensionwith QuickConnect-- Allows you to
switch betweenfour different spray tips.
C- HighPressureHose-- Connectone end to water pump
and the other end to spray gun.
D - Oil Fill/Dipstick-- Checkand fill with oil here.
E - Pump(under base)-- Develops high pressure.
F - AutomaticCoolDownSystem-- Cycleswater through
pump when water reaches125°-155°F. Warm water will
dischargefrom pump onto ground. This system prevents
internal pump damage.
G - Air Filter-- Protects engine by filtering dust and debris
out of intake air.
H - Recoil Starter-- Usedfor starting the engine manually.
J - FuelTank -- Fill tank with regular unleadedfuel. Always
leaveroom for fuel expansion.
K- Warning/OperatingInstructionsTag-- Identifies
hazardsand proper procedureto start/stop pressure
washer.
L- CleaningTank-- Useto hold up to one gallon (3.78 I) of
pressure washer safe detergent in tank.
M - AccessoryTray -- Provides convenient storage for
standard and optional accessories, such as brushes,
turbo wands, etc.
N - SprayTips -- Detergent,0°, 15° and 40°: for various
high pressure cleaning applications.
Items Not Shown:
IdentificationLabel (near rear of base plate) -- Provides
model and serial numberof pressure washer. Pleasehave
these readily availableif calling for assistance.
Engine Controls-- Seeengine manual for details on engine
controls.
High PressureOutlet-- Connectionfor high pressure hose.
Water Inlet -- Connectionfor garden hose.
