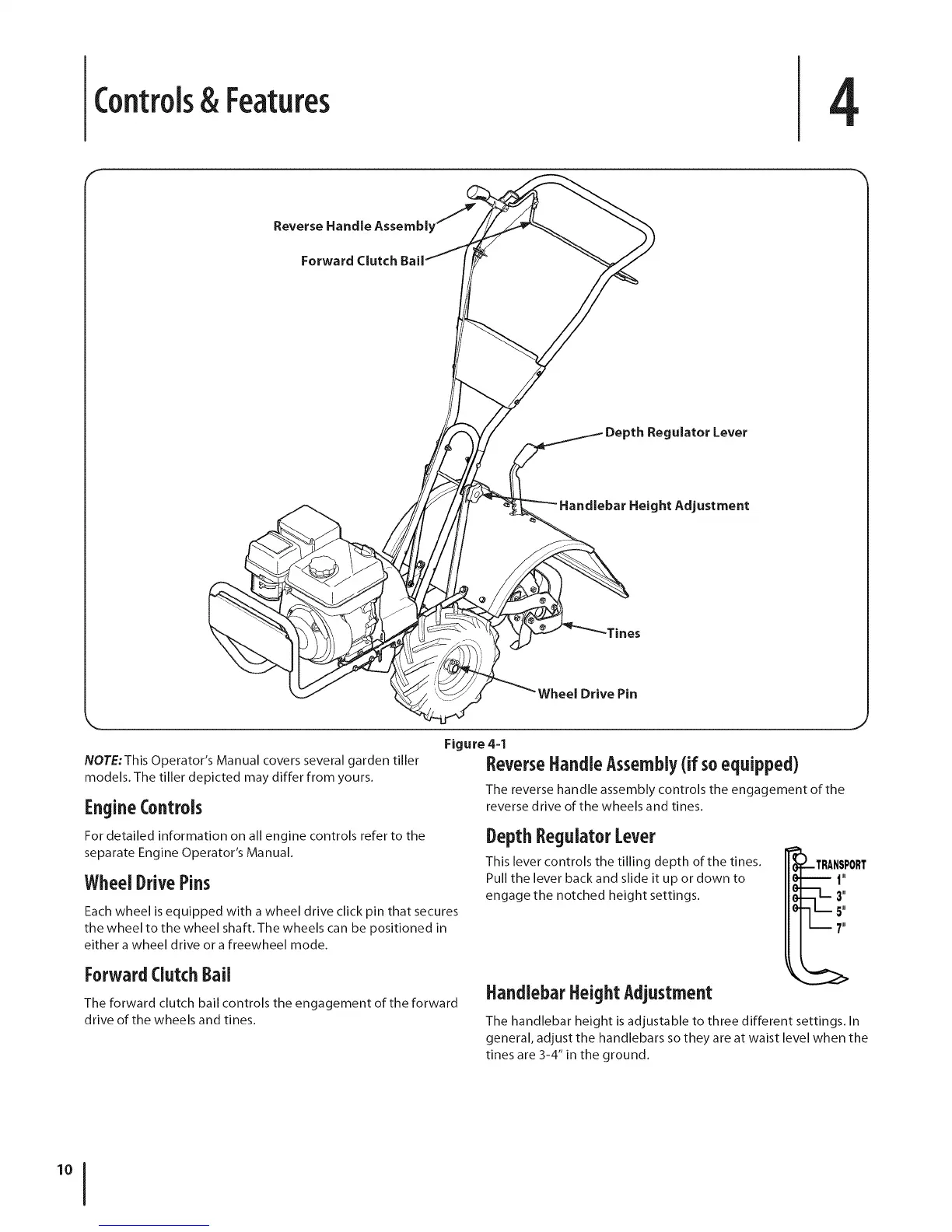

Controls& Features
4
Reverse Handle Assembb
Forward Clutch
ulator Lever
ight Adjustment
Tines
Drive Pin
NOTE:This Operator's Manual covers several garden tiller
models. The tiller depicted may differ from yours.
EngineControLs
Figure 4=1
ReverseHandleAssembly(i[ soequipped)
The reverse handle assembly controls the engagement of the
reverse drive of the wheels and tines.
For detailed information on all engine controls refer to the
separate Engine Operator's Manual.
WheelDrive Pins
Each wheel is equipped with a wheel drive click pin that secures
the wheel to the wheel shaft. The wheels can be positioned in
either a wheel drive or a freewheel mode.
ForwardClutch Bail
The forward clutch bail controls the engagement of the forward
drive of the wheels and tines.
Depth Regulator Lever
This lever controls the tilling depth of the tines.
Pull the lever back and slide it up or down to
engage the notched height settings.
Handlebar Height Adjustment
The handlebar height is adjustable to three different settings. In
general, adjust the handlebars so they are at waist level when the
tines are 3-4" in the ground.
