9Section 3 — ASSembly & Set-Up
Clutch Cable Adjustment
Before operating the tiller the adjustment of the forward clutch
cables must be checked.
 Disconnect and ground the spark plug wire against the
engine.
2. Adjust the forward clutch cable by loosening the hex nut.


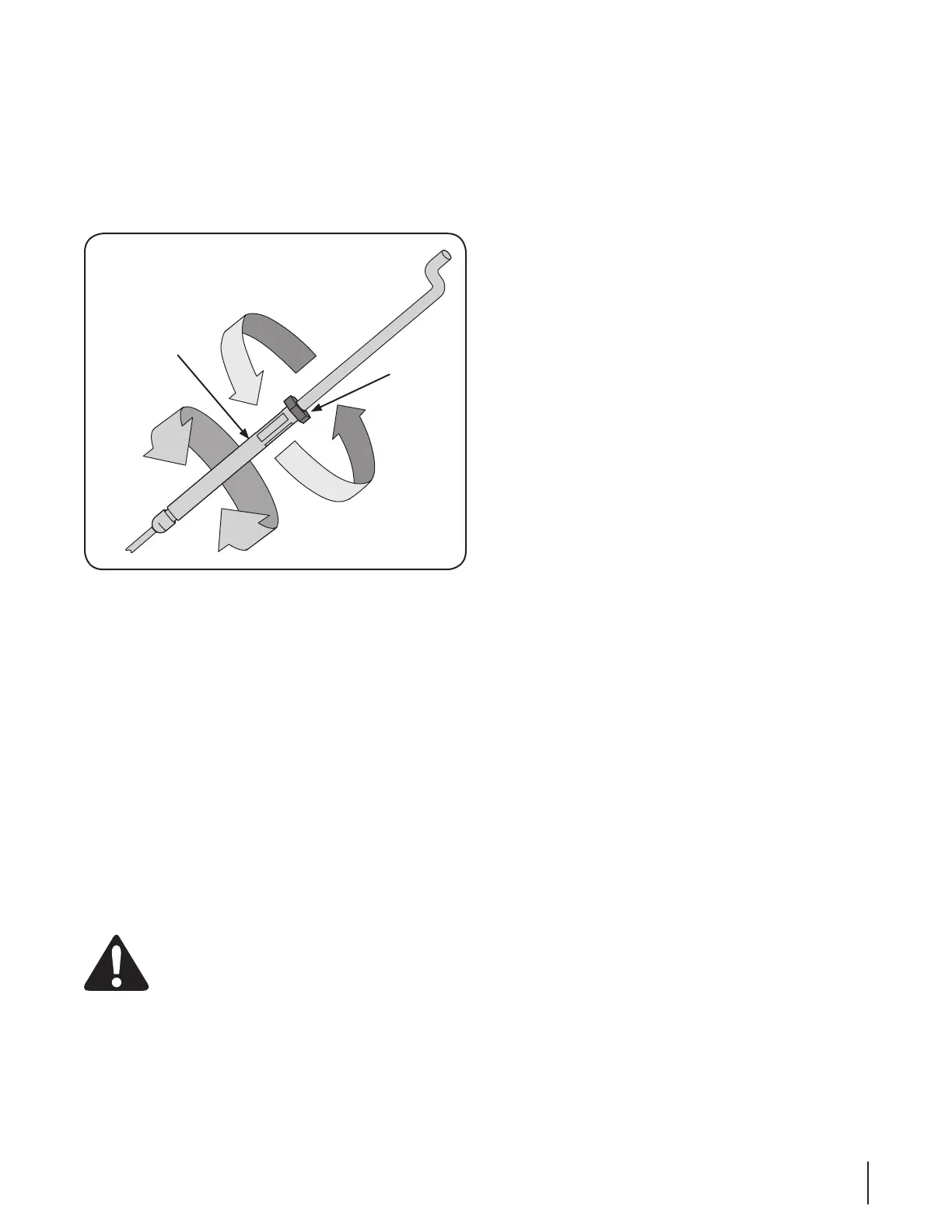

Hex Nut
Cable Collar
Figure 1-8
3. Turn the cable collar section one or two turns to increase or

 
5. With the forward engagement handle in the neutral —
released — position, pull the starter rope several times. The
tines should not turn.
 If they turn adjust the forward clutch cable to release
tension using the previous steps in this section.
7. Check again for correct tension on the cable.
8. After tilling, if the tines stop moving, re-adjust the cables.
Set-Up
Gas & Oil Fill-Up
Service the Engine with gasoline and oil as instructed in the

the instructions carefully.
WARNING! Use extreme care when handling
gasoline. Gasoline is extremely flammable and the
vapors are explosive. Never fuel the machine
indoors or while the engine is hot or running.
