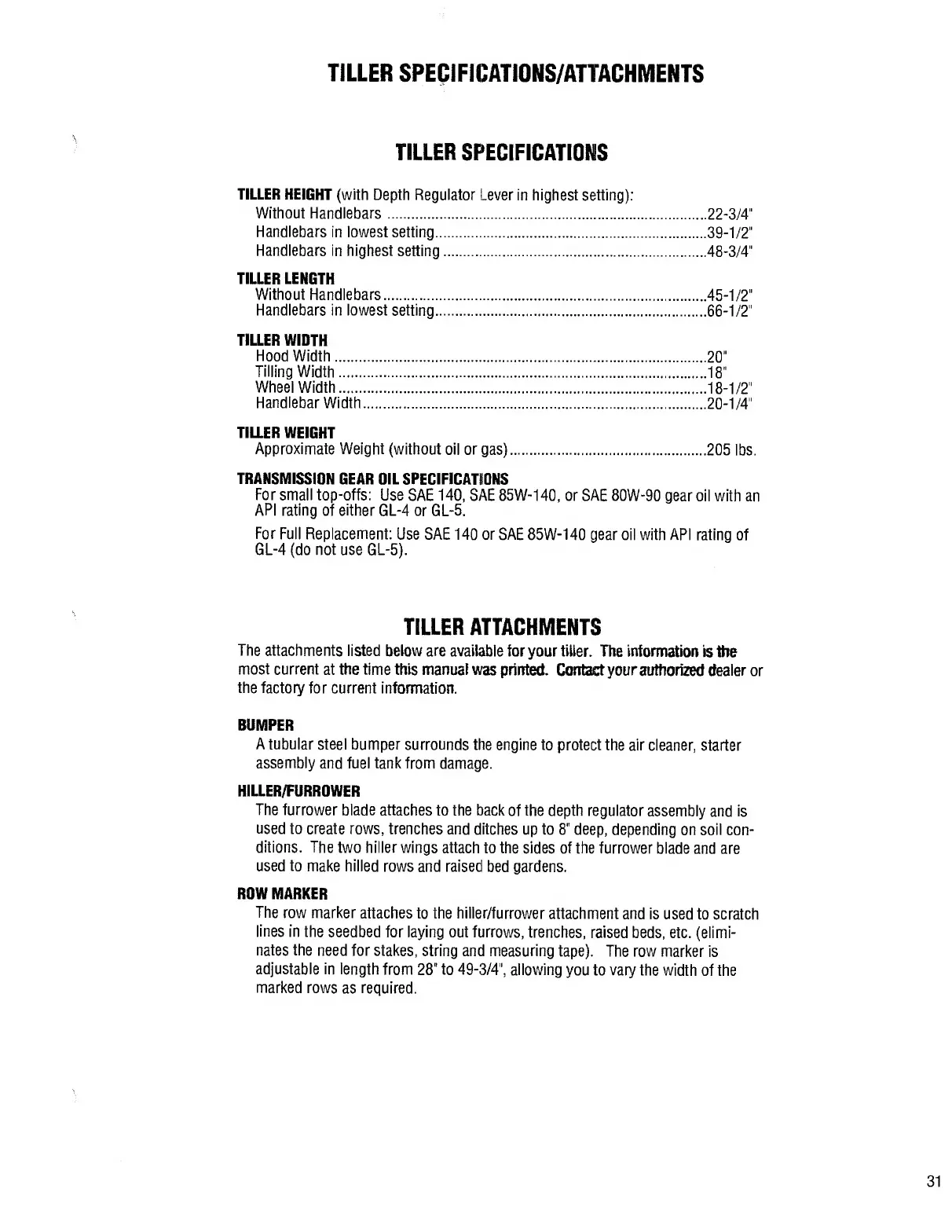

TILLER SPECIFICATIONS/ATTACHMENTS
TILLER SPECIFICATIONS
TILLER HEIGHT (with Depth Regulator Lever in highest setting):
Without Handlebars.22-3/4”
Handlebars in lowest setting.39-1/2"
Handlebars in highest setting.48-3/4”
TILLER LENGTH
Without Handlebars.45-1/2”
Handlebars in lowest setting.66-1/2”
TILLER WIDTH
Hood Width.20”
Tilling Width.18“
Wheel Width.18-1/2"
Handlebar Width.20-1/4"
TILLER WEIGHT
Approximate Weight (without oil or gas).205 lbs.
TRANSMISSION GEAR OIL SPECIFICATIONS
For small top-offs: Use SAE 140, SAE 85W-140, or SAE 80W-90 gear oil with an
API rating of either GL-4 or GL-5.
For Full Replacement: Use SAE 140 or SAE 85W-140 gear oil with API rating of
GL-4 (do not use GL-5).
TILLER ATTACHMENTS
The attachments listed below are available for your tiller. The information is the
most current at the time this manual was printed. Contact your authorized dealer or
the factory for current information.
BUMPER
A tubular steel bumper surrounds the engine to protect the air cleaner, starter
assembly and fuel tank from damage.
HILLER/FURROWER
The furrower blade attaches to the back of the depth regulator assembly and is
used to create rows, trenches and ditches up to 8" deep, depending on soil con¬
ditions. The two hiller wings attach to the sides of the furrower blade and are
used to make hilled rows and raised bed gardens.
ROW MARKER
The row marker attaches to the hiller/furrower attachment and is used to scratch
lines in the seedbed for laying out furrows, trenches, raised beds, etc. (elimi¬
nates the need for stakes, string and measuring tape). The row marker is
adjustable in length from 28" to 49-3/4", allowing you to vary the width of the
marked rows as required.
