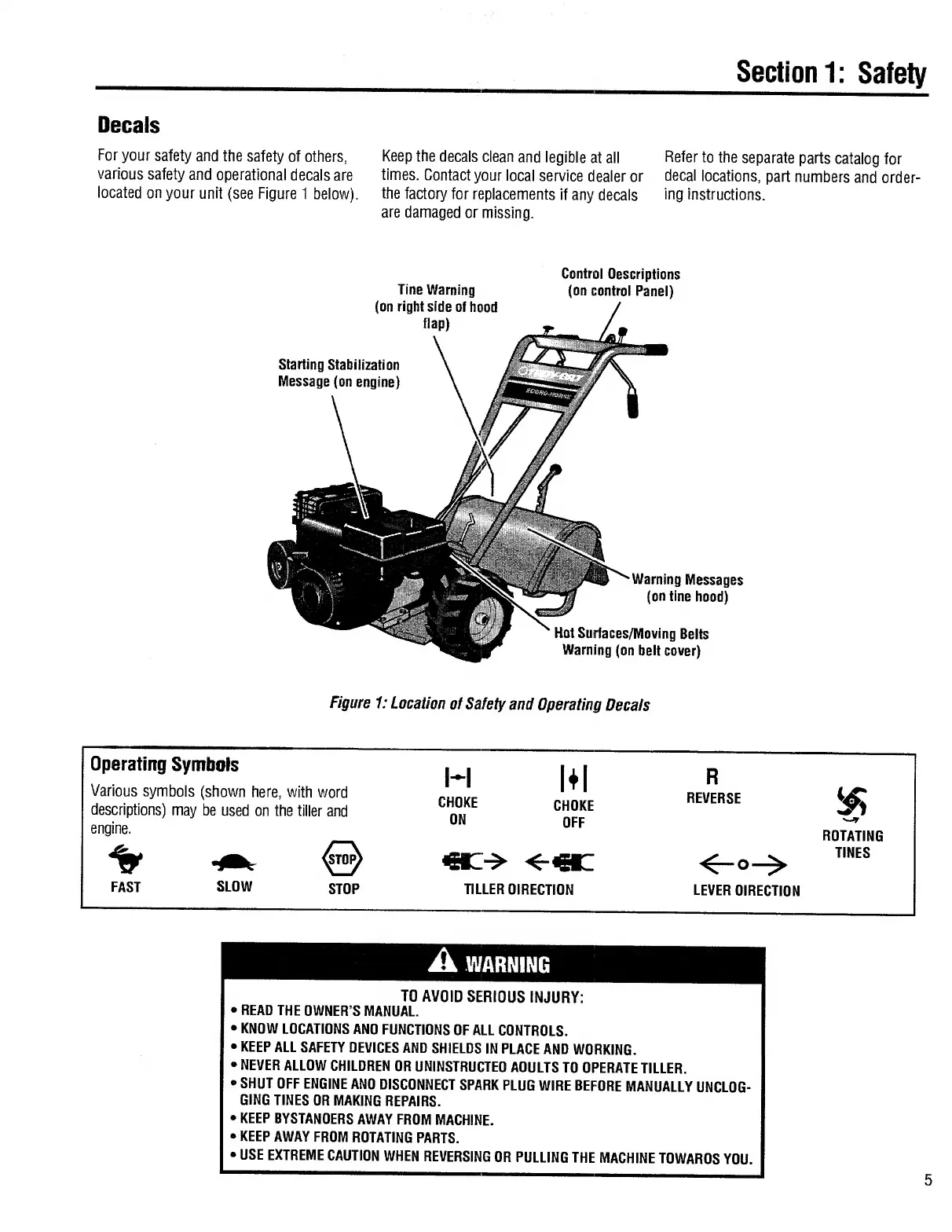

Section 1: Safety
Decals
For your safety and the safety of others,
various safety and operational decals are
located on your unit (see Figure 1 below).
Keep the decals clean and legible at all
times. Contact your local service dealer or
the factory for replacements if any decals
are damaged or missing.
Refer to the separate parts catalog for
decal locations, part numbers and order¬
ing instructions.
Starting Stabilization
Message (on engine)
Warning Messages
(on tine hood)
Hot Surfaces/Moving Belts
Warning (on belt cover)
Tine Warning
(on right side of hood
flap)
Control Descriptions
(on control Panel)
Figure 1: Location of Safety and Operating Decals
Operating Symbols
H
CHOKE
ON
U|
R
Various symbols (shown here, with word
descriptions) may be used on the tiller and
1 ' 1
CHOKE
OFF
REVERSE
5*
—*
engine.
ROTATING
% ^
TINES
FAST SLOW STOP
TILLER DIRECTION
LEVER DIRECTION
A WARNING
TO AVOID SERIOUS INJURY:
• READ THE OWNER’S MANUAL.
• KNOW LOCATIONS AND FUNCTIONS OF ALL CONTROLS.
• KEEP ALL SAFETY DEVICES AND SHIELDS IN PLACE AND WORKING.
• NEVER ALLOW CHILDREN OR UNINSTRUCTED ADULTS TO OPERATE TILLER.
• SHUT OFF ENGINE AND DISCONNECT SPARK PLUG WIRE BEFORE MANUALLY UNCLOG¬
GING TINES OR MAKING REPAIRS.
« KEEP BYSTANDERS AWAY FROM MACHINE.
• KEEP AWAY FROM ROTATING PARTS.
• USE EXTREME CAUTION WHEN REVERSING OR PULLING THE MACHINE TOWARDS YOU.
5
