Troy-Bilt TB270 ES User Manual

Assembly & Set-Up
3
9
Contents of Carton
  
  
Assembly
NOTE: This unit is shipped without gasoline or oil in the engine.
Fill up with gasoline and oil as instructed in the accompanying

Handle
Remove any packing material which may be between 
upper and lower handles.

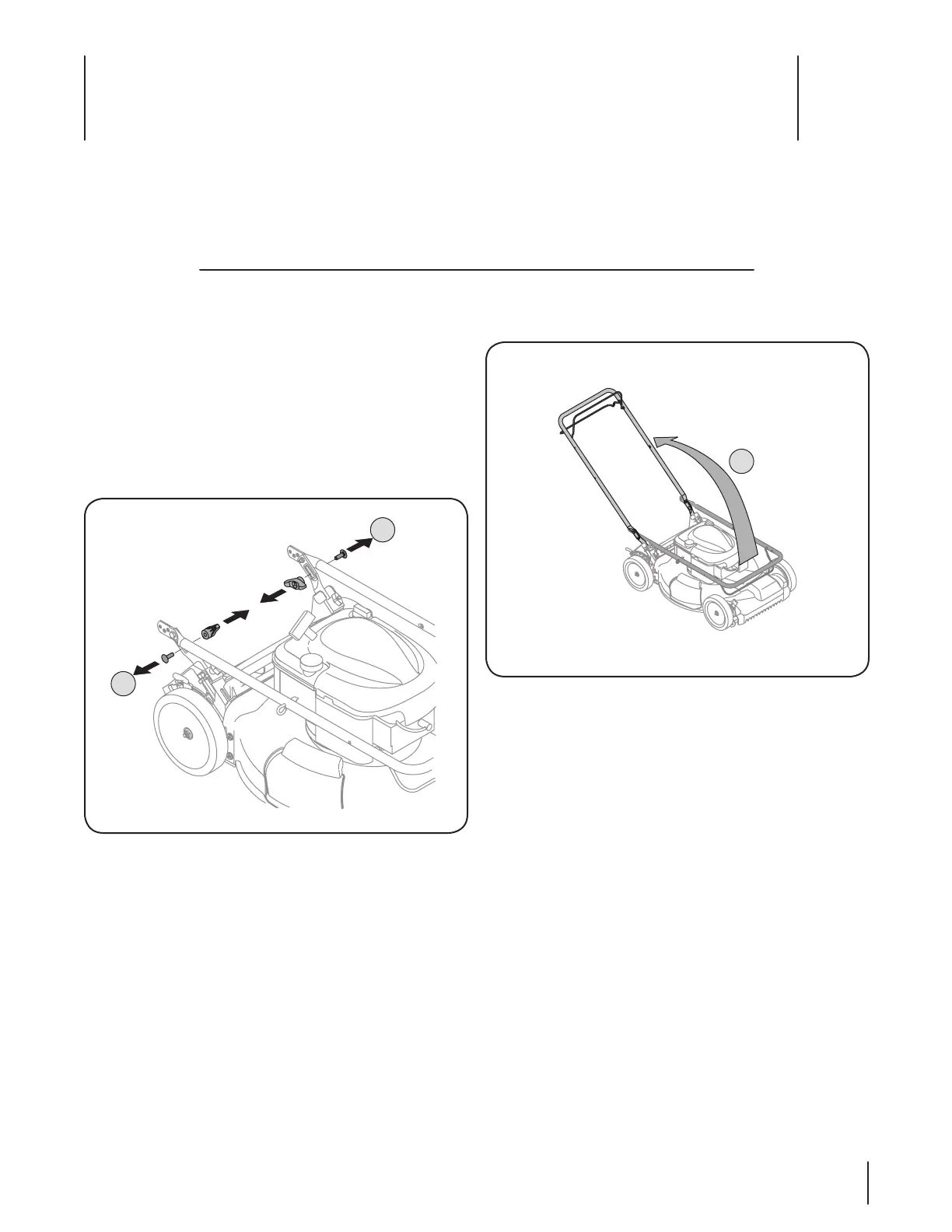

Remove wing nuts and carriage bolts from handle as a.

hex head screws.

b.
upper handle up as shown in Fig. 3-2. Do not crimp
cable while lifting the handle up.

A
A
B

Troy-Bilt TB270 ES Specifications

General

Engine Type	4-Cycle
Engine Brand	Briggs & Stratton
Engine Displacement	140 cc
Cutting Width	21 inches
Deck Material	Steel
Drive System	Self-Propelled
Mulch Capable	Yes
Side Discharge	Yes
Bagging Capable	Yes
Bag Capacity	1.9 bushels
Wheel Size (Front)	8 inches
Cutting Height	1.25-3.75 inches
Drive Type	Rear Wheel Drive
Wheel Size (Rear)	11 inches
Cutting Height Adjustment	Single-lever
