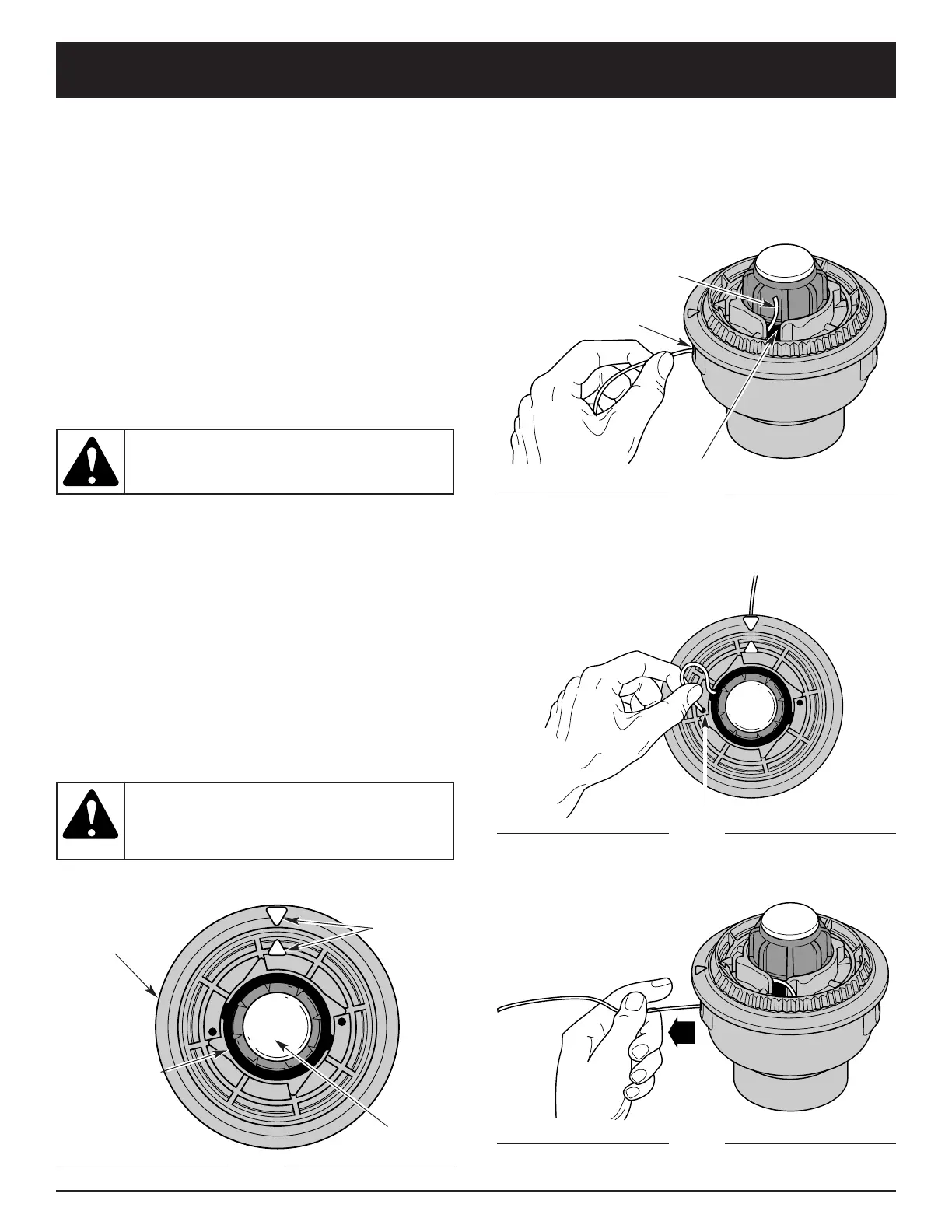

MAINTENANCE AND REPAIR INSTRUCTIONS
Line Locking Hole
Trimming Line
Line Loading Hole
Eyelet
5. Insert the line into the locking hole (Fig. 16). Do not
push the line more than 1/2 inch (12.7 mm) into the
line locking hole. When inserted correctly the line
will form a small loop (Fig. 16).
3. Pull old line out of the line loading and line locking
holes (Fig. 15 and 16).
4. Insert a piece of trimming line into one of the two
eyelets in the outer spool. Push it up through the line
loading hole in the inner reel (Fig. 15). Do not bend
the line when inserting it into the eyelet.
Fig. 15
Fig. 16
6. Pull the line from the outer spool until the line is tight
against the inner reel (Fig. 17).
Fig. 17
Top View Of The SpeedSpool
®
Arrows
WARNING: Always use the correct line
length when installing trimming line on the
unit. The line may not release properly if the
line is too long.
SERVICING DOUBLE INSULATED UNITS
This unit is double-insulated. In a double-insulated unit,
two systems of insulation are provided instead of
grounding. There is no grounding provided and no
means of grounding should be added to this unit.
Extreme care and knowledge of the system is required
when servicing a double-insulated unit. Service should
be performed by qualified service personnel only.
Replacement parts for a double-insulated unit must be
identical to the parts they replace. Refer any repair to an
authorized service dealer. A double-insulated unit is
marked with the words “double insulation” or “double
insulated.”
LINE INSTALLATION FOR THE SPEEDSPOOL
®
Always use a genuine factory 0.080 inch (2.03 mm)
replacement line. Lines other than those specified may
make the unit overheat or fail.
There are two methods to replace the SpeedSpool
®
trimming line:
• Wind the inner reel with new line
• Install a pre-wound inner reel
Winding the Inner Reel With New Line
NOTE: It Is unnecessary to remove the bump knob to
install a new trimming line.
1. Cut two pieces of 0.080 inch (2.03 mm) trimming
line, 10 feet (3 m) long.
2. Hold the outer spool and turn the inner reel
counterclockwise to line up the arrows on the outer
spool and inner reel (Fig. 14).
Outer Spool
Inner Reel
Fig. 14
WARNING: Never use metal-reinforced line,
wire, chain or rope. These can break off and
become dangerous projectiles.
Bump Knob
To Next Page
