18
18
PEX-1000 Series
Print
Engine Service Manual

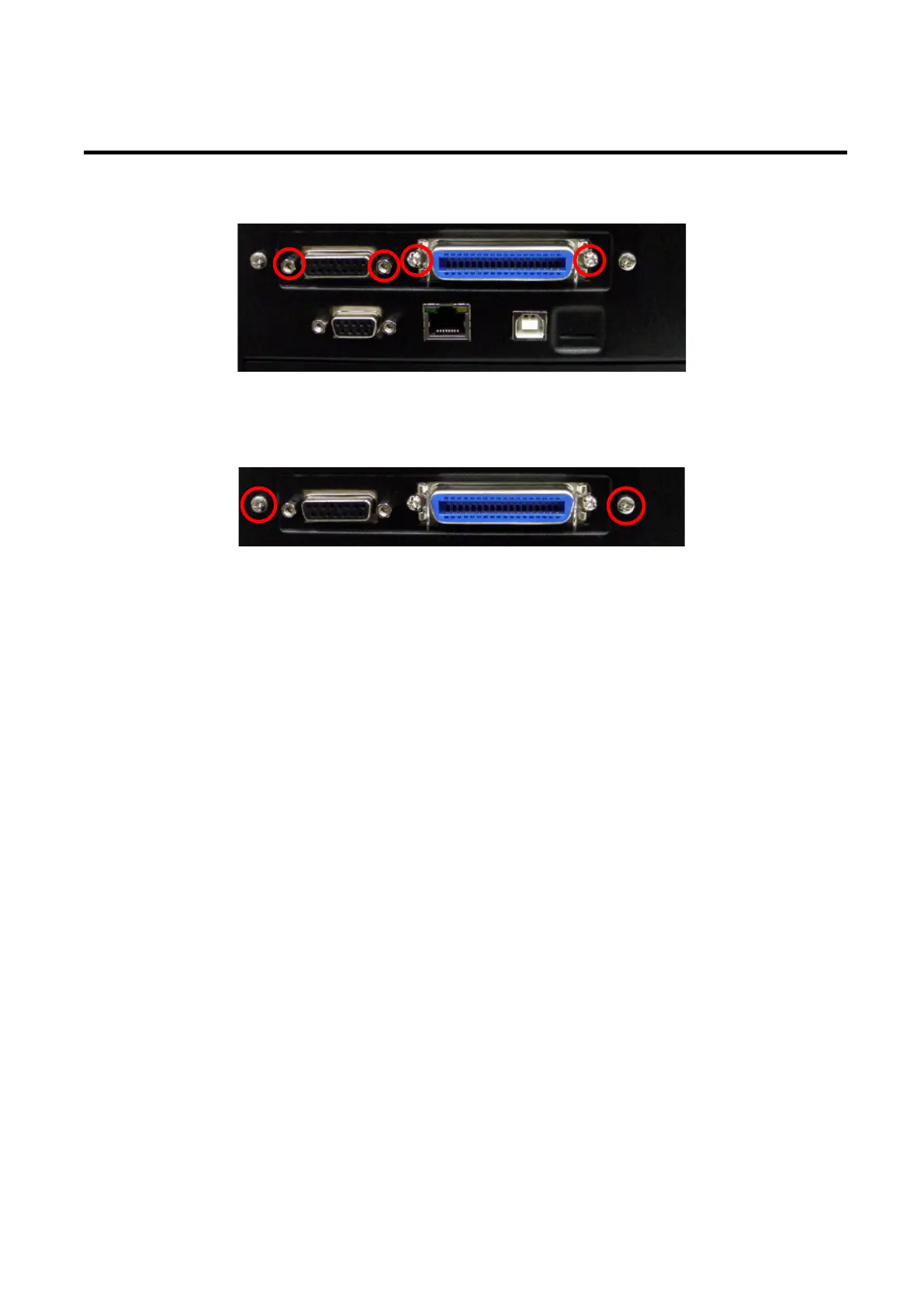

5. Remove four screws on the cover as shown to loosen the GPIO and parallel ports.
Note:
Remove two screws to replace multi-interface plate if necessary.
6. Remove/Replace the multi-interface board.
7. Reassemble the parts in the reverse procedures.
