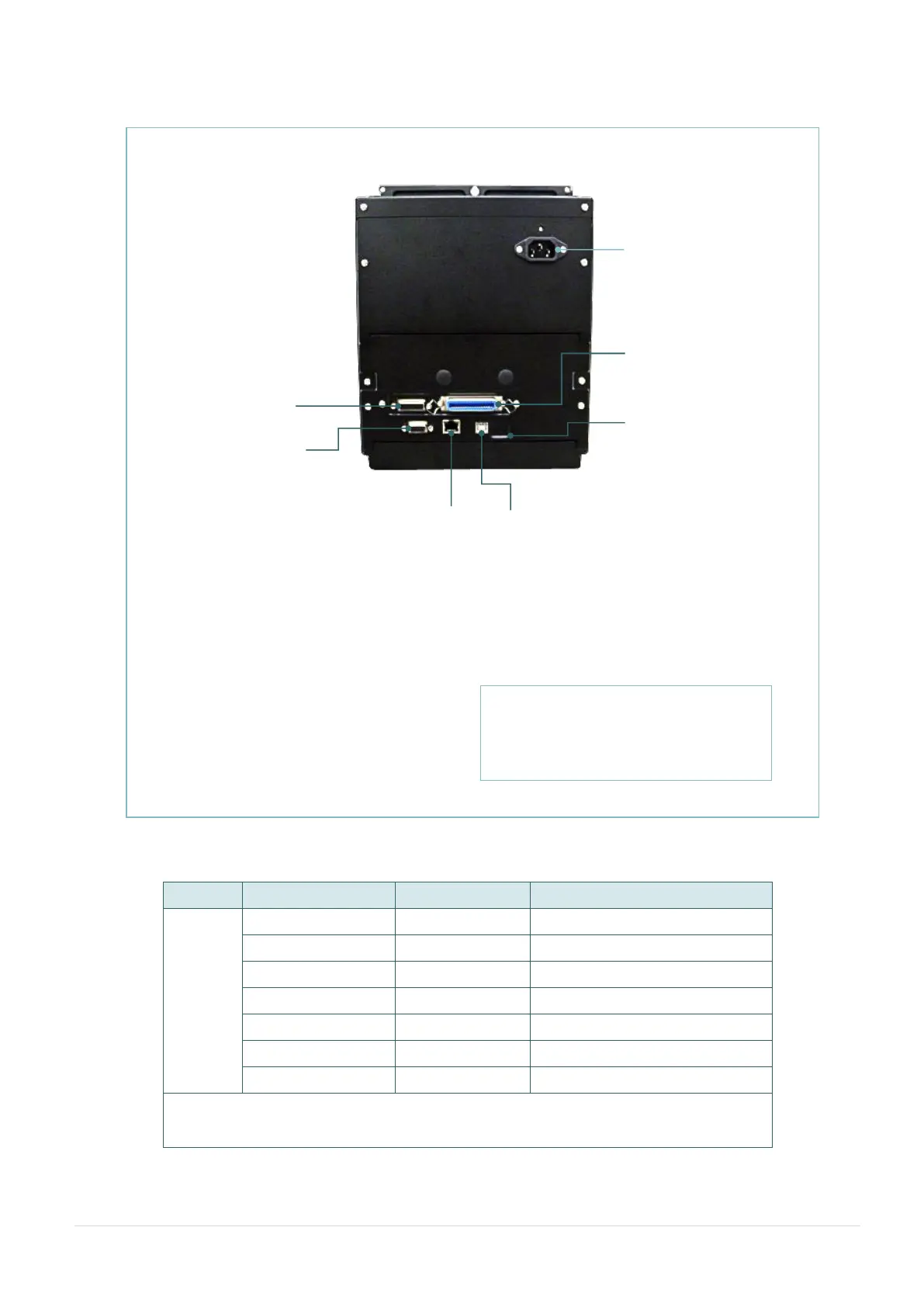

2.4.3 Rear View
* Recommended SD card specification
Type
SD card spec
SD card capacity
Approved SD card manufacturer
Micro SD
V2.0 Class 4
4G
Transcend
V2.0 Class 4
8G
Transcend
V3.0 Class 10 UHS-I
16G
Transcend
V3.0 Class 10 UHS-I
32G
Transcend
V3.0 Class 10
16G
Kingston
V2.0 Class 4
16G
Scandisk
V3.0 Class 10 UHS-I
16G
Scandisk
- The DOS FAT file system is supported for the SD card.
- Folders/files stored in the SD card should be in the 8.3 filename format.
- The miniSD/microSD card to SD card slot adapter is required.
1. GPIO interface (Applicator interface with DB15F connector +5V I/O)
2. RS-232C interface
3. Ethernet interface
4. USB interface
5. Power cord socket
6. Centronics interface
7. * Micro SD card socket
1
3
2
4
US
B
inte
rfa
ce
7
US
B
int
erf
ac
e
6
5
Note:
The interface picture here is for
reference only. Please refer to the
product specification for the interfaces
availability.
