TA210/ TA310/ TA200/ TA300
Bar Code Printer Service Manual
15

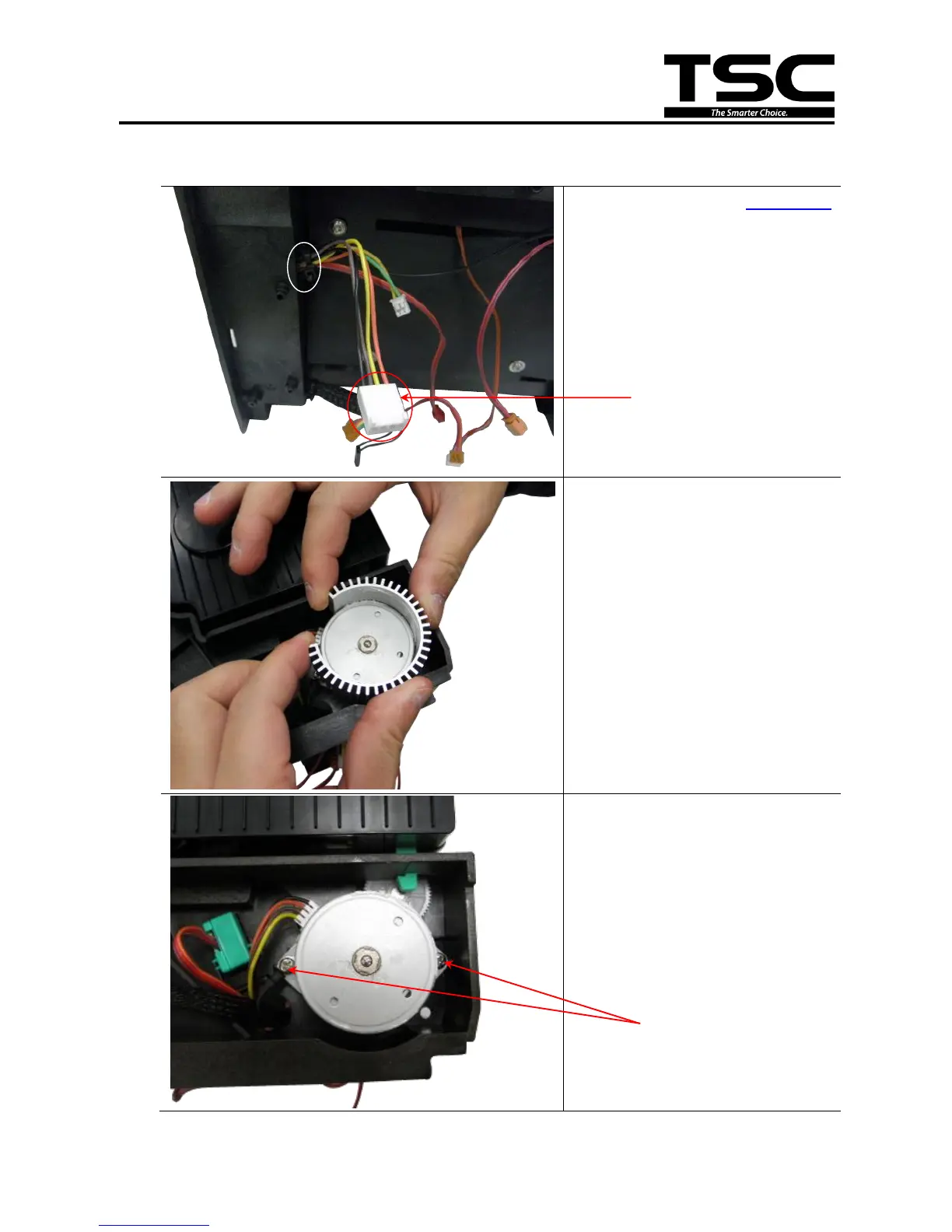

3.5 Replacing the Stepping Motor
1. Please refer to the section 3.2
to remove the main board.
2. Release the cable tie for
stepping motor connector.
3. Remove the cooling fin.
4. Remove the two screws on
the stepping motor.
5. Remove/Replace the stepping
motor.
6. Reassemble the parts in the
reverse procedure.
Stepping motor
connector
Cable tie
Screws
