25
4.
1 Mechanism Fine
Adjustment to
A
v
oid
Ribbon Wri
nkles
Ribbon wrinkle
is related to the media width, thickness, print head pressure balance, ribbon film characteristics, print darkness
setting…etc. In case the ribbon wri
n
kle happens, please follow
th
e instructions below to adj
ust
the printer p
arts.
A
d
justable Printer Parts

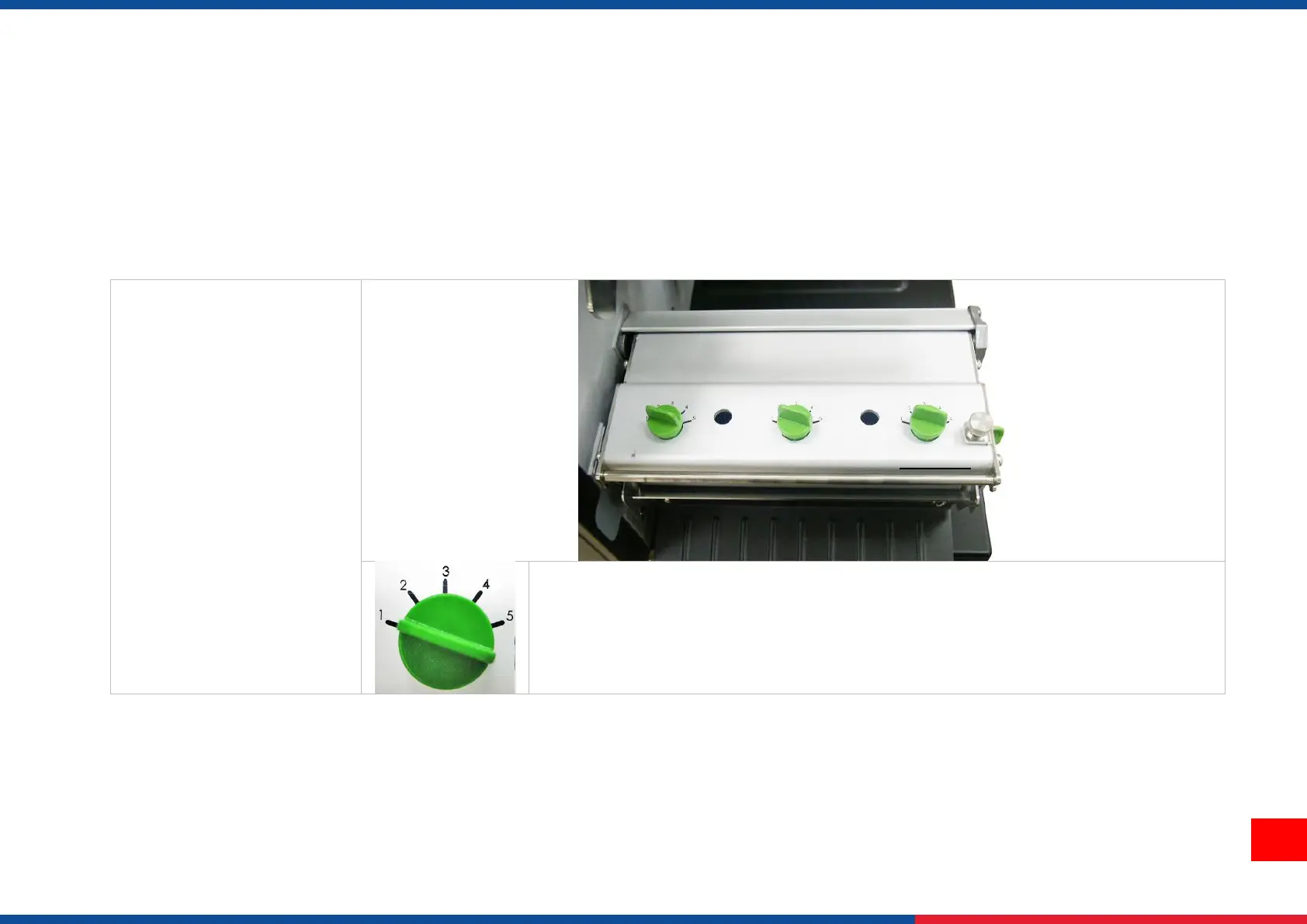

There are 5 levels of print head pressure adjustment knob settings. The lowest
pressure index is 1 and the highest pressure index is 5.
29
31
Table of Contents
Table of Contents
3
Introduction
6
Product Specification
7
Printer Optional Features
9
General Specification
10
Print Specification
10
Ribbon Specification
11
Media Specification
11
Operation Overview
12
Unpacking and Inspection
12
Printer Overview
13
Front View
13
Interior View
14
Rear View
15
Operator Control
16
LED Indication and Keypads
17
Touch Screen Manipulation
18
Setup
19
Setting up the Printer
19
Loading the Ribbon
20
Loading the Media
22
Loading the Media in Fan-Fold / External Mode (Option)
25
Loading the Media in Cutter Mode (Option)
26
Loading the Media in Peel-Off Mode (Option)
27
Knob Adjustment
29
Mechanism Fine Adjustment to Avoid Ribbon Wrinkles
30
TSC Console
34
Start TSC Console
34
Setup Ethernet Interface
36
Set Wifi and Add to TSC Console Interface
38
Initialize the Printer Wifi Setting
41
Printer Function
42
Setting Post-Print Action
43
LCD Menu Function
44
Enter the Menu
44
Menu Overview
45
Tspl
46
Zpl2
48
Sensor
51
Interface
52
Serial Comm
53
Ehernet
54
File Manager
55
Diagnostic
56
Advanced
57
Service
58
Troubleshooting
59
Maintenance
62
Angency Compliance and Approvals
64
Revise History
