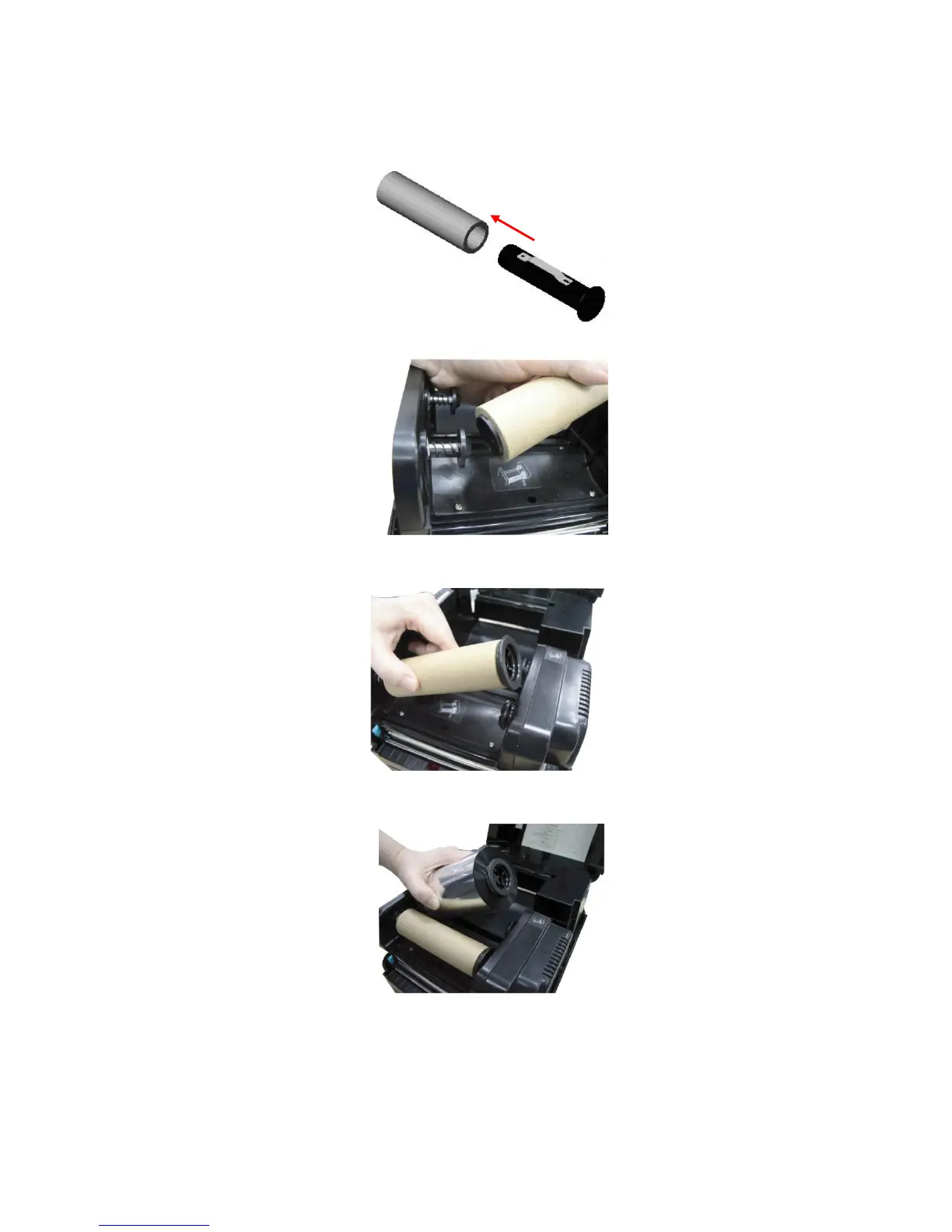

3.4 Ribbon Loading Instructions
1. Place an empty paper core on the ribbon rewind spindle.
2. Insert the left side first. Mount the ribbon rewind paper core on the front hubs.
3. Please be noted that the bigger hub side with 4 ribs must be installed toward
the right side of ribbon mechanism.
4. Install a ribbon on the ribbon supply spindle. Mount the ribbon supply spindle
on the rear hubs.
5. Insert the left side first. Please be noted that the bigger hub side with 4 ribs
must be installed toward the right side of ribbon mechanism.
