TSC XP-DT425B Series User Manual

3.5 External Label Roll Mount Installation (Option)

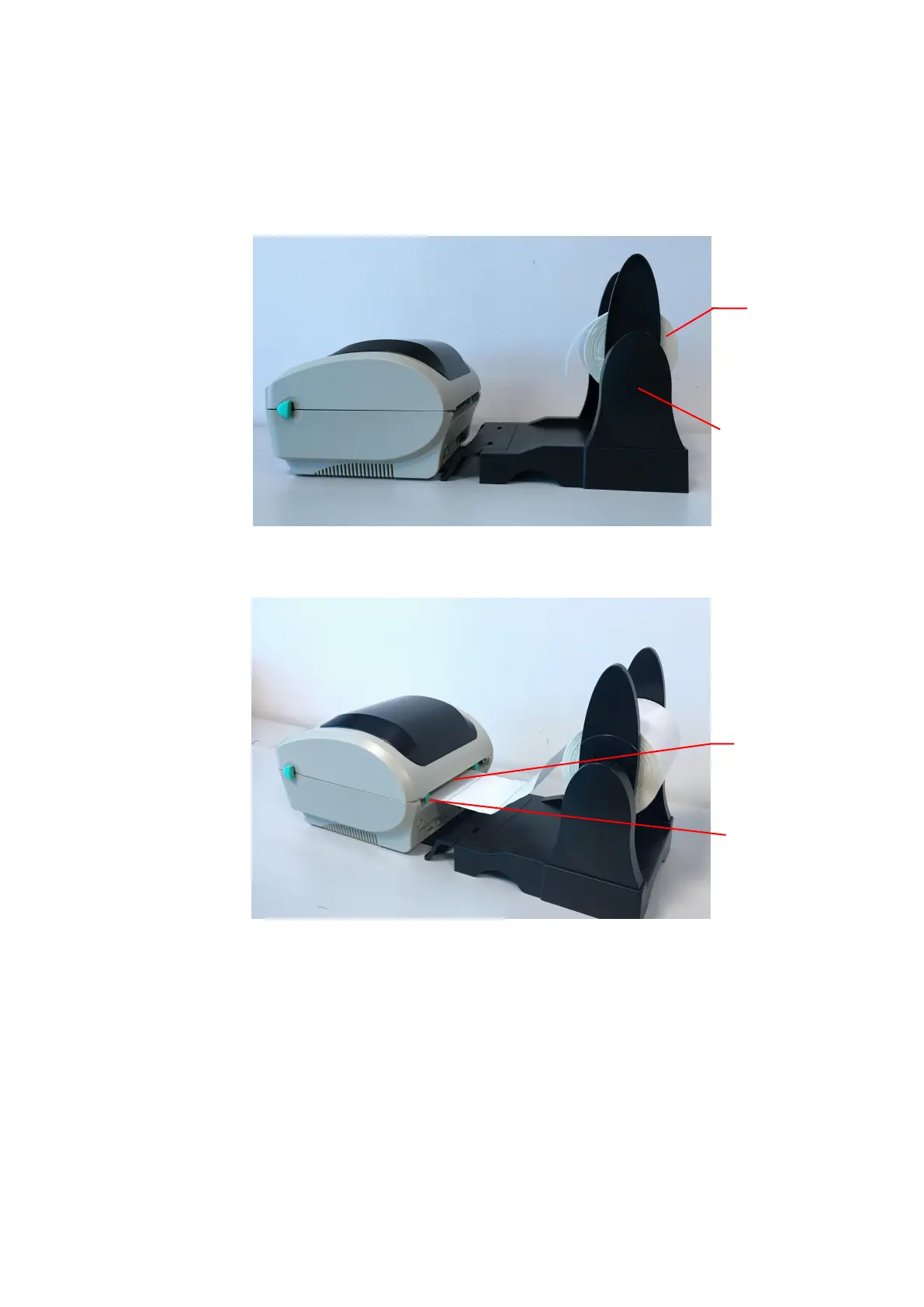

1. Attach an external label roll mount on the bottom of the printer.
2. Install a roll of label on the external label roll mount.
Label
External Label
Roll Mount
3. Feed the label to the external label feed opening through the rear label guide.
External Label
Feed Opening
Rear Label Guide
4. Open the printer top cover by pulling the top cover open levers.
5. Thread the label, printing side face up, through the label guide and place it on top the
platen.
6. Adjust the label guides by finger to fit the edge of the label backing.
7. Close the printer top cover.
14
