Stacking HhC 3240 Ovens
Follow all instructions in the Installation Manual (part number HHC-6651), included with each oven.
Stacking HhC 2020 Ovens
WARNING: DO NOT use this appliance without the legs installed. When stacking, the legs must be installed on the bottom oven only.
WARNING: Make sure all HhC 2020 ovens are unplugged before stacking.
WARNING: DO NOT stack ovens more than 3 high.
WARNING: DO NOT attempt to lift the oven with fewer than 2 people.
1. Remove the legs from the oven(s) that are going to be stacked on top.
2. Stack the top oven on the bottom oven. If stacking three ovens, stack only the middle oven at this point.

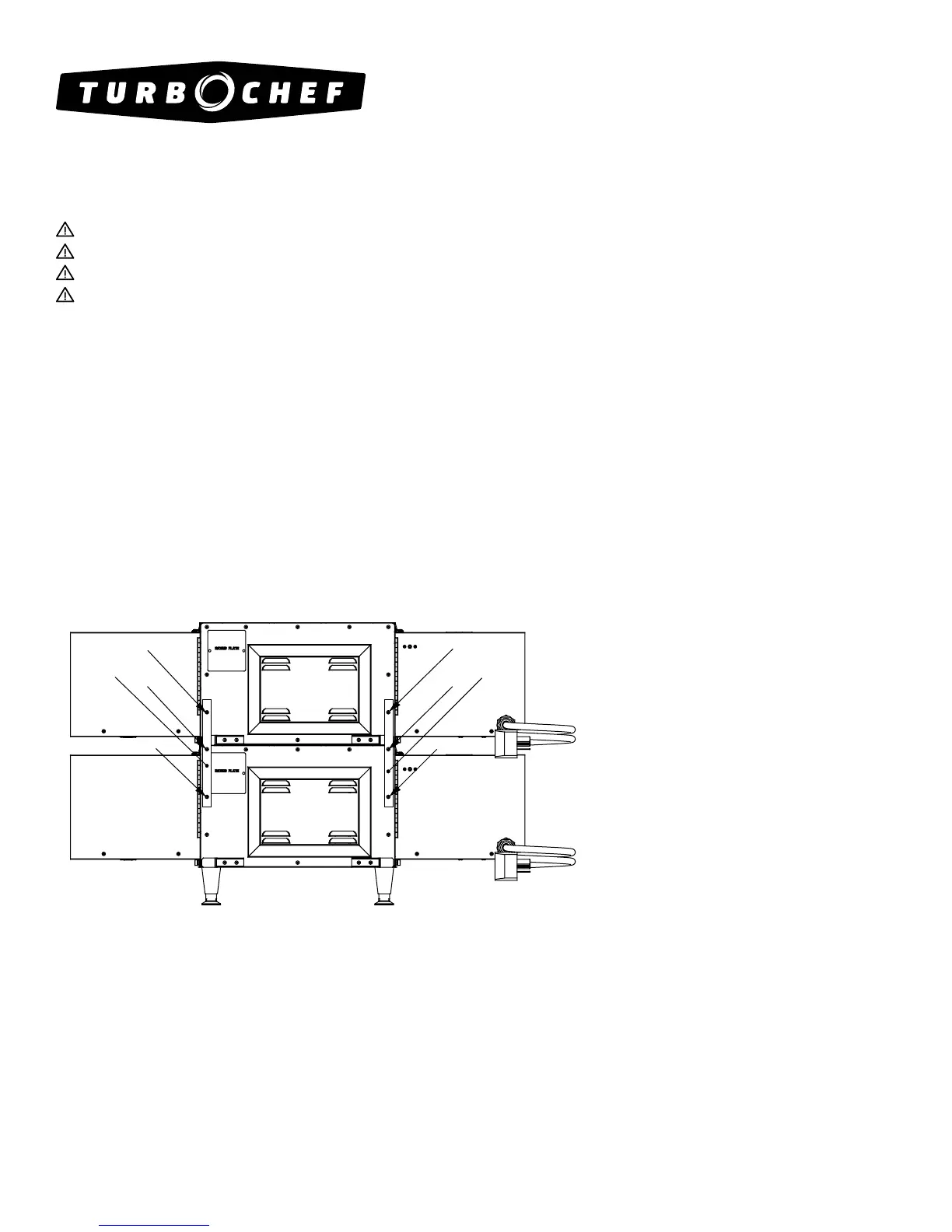

3. Remove the screws marked A and B in the below gure.
4. Align each bracket with the holes in the bottom oven and reinstall the screws marked A in the below gure.
5. Align each bracket with the holes in the top oven and reinstall the screws marked B in the below gure.
6. If stacking three ovens, repeat steps 2-5 above to stack the top oven to the middle oven.
7. Ensure each stacked oven is secured to the oven beneath it via two stacking brackets – one on each side.
A
A
B
A
A
B
Bracket
Bracket
