3-49
Section 3 - Service and Repair

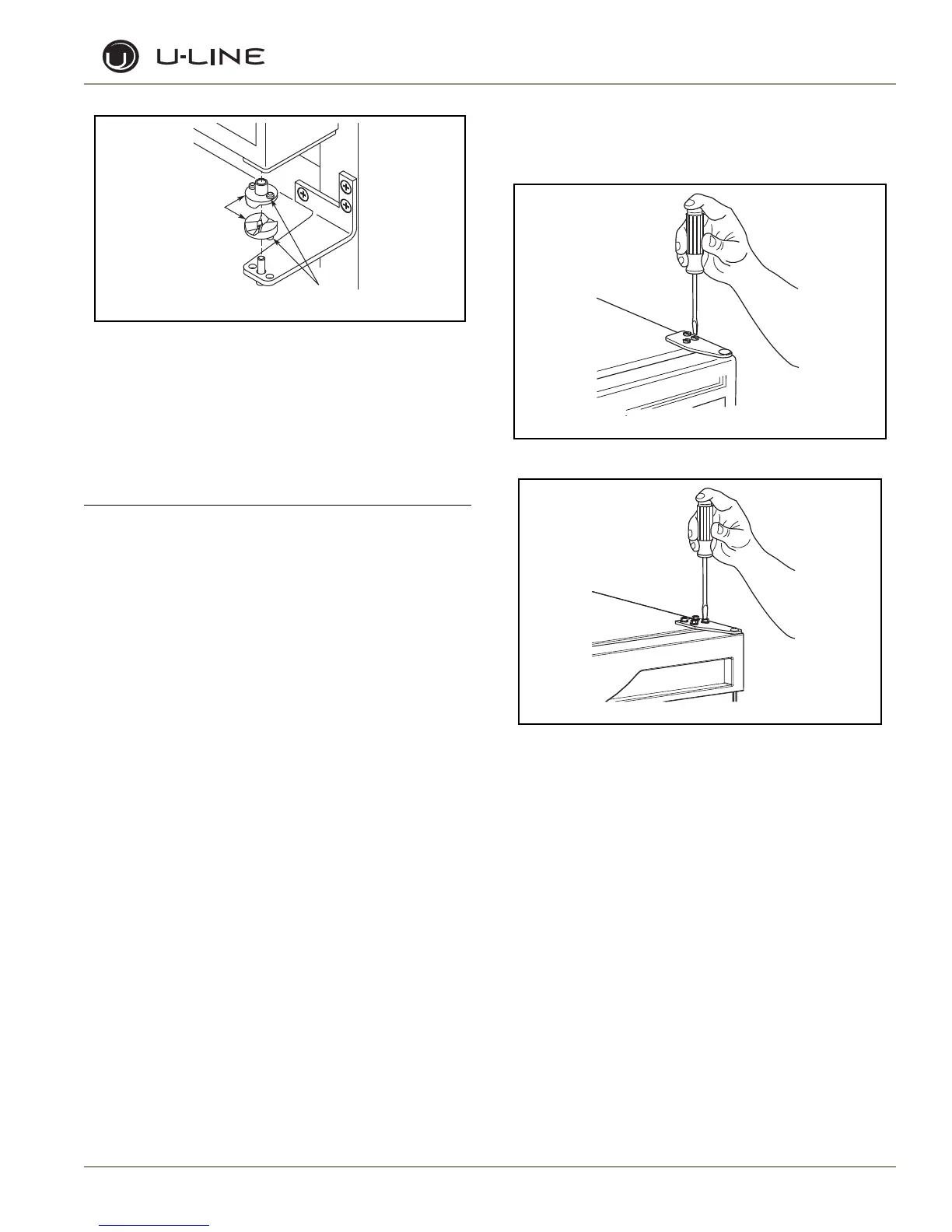

Figure 41
8. Mount the door, install top hinge pivot pin.
Door Alignment - Origins Models
The unit’s door is aligned at the factory before shipment. However,
its alignment could have been disturbed during shipment or during
door panel installation.
Properly aligned, the door’s gasket should be firmly in
contact with the cabinet all the way around the door (no
gaps).
CHECKING DOOR ALIGNMENT
1. Carefully examine the door’s gasket to assure that it is firmly in
contact with the cabinet.
2. If the door is properly aligned, no further adjustment is necessary.
If it is not, use the following procedure.
ADJUSTING DOOR ALIGNMENT
1. Loosen (do not remove) top and bottom hinge screws (Figure
42 and Figure 43).
Figure 42
Figure 43
2. Align door squarely with cabinet. Make sure gasket is firmly in
contact with cabinet all the way around the door (no gaps).
3. Tighten bottom hinge screws.
4. Tighten top hinge screws.
Drawer Alignment
Door
Closer
Inserts
Boss
ULIN_0298a_A
ULIN_0104_A
