U-Line U-CO1224FB-00B User Manual

U-CO1224FB-00B
Item Description U-Line P/N
1 Anti tip bracket w/screws 80-54239-00
2 Back panel 80-54204-00
3 Compression nut/sleeve 80-54355-00
4 Compressor electricals only 80-54300-00
5 Compressor w/electricals 80-54299-00
6 Condenser assembly 80-54301-00
7 Condenser fan w/screws 80-54014-00
8 Display module 80-54236-00
9 Door assembly w/hinges 80-54298-00
10 Drain pan heater 80-54313-00
11 Drain pan w/double sided tape 80-54323-00
12 Drain pan, evaporator 80-54361-00
13 Drier 80-54055-00
14 Evaporator fan 80-54310-00
15 Evaporator assembly 80-54306-00
16 Evaporator cover w/screws 80-54312-00
17 Evaporator fan cover w/screws 80-54311-00
18 Freezer door assembly 80-54308-00
19 Freezer hinge assembly 80-54307-00
20 Gasket, door 80-54213-00
21 Glass shelf(1) btm 80-54274-00
22 Glass shelf(1) top 80-54304-00
23 Grille w/screws 80-54267-00
24 Handle w/logo 80-54214-00
25 Hinges(2) w/screws 80-54208-00
26 Hot gas valve and coil 80-54169-00
27 Ice bucket 80-54370-00
28 Ice maker assembly 80-54360-00
29 LED light strip and cover assy 80-54000-00
30 Leg Levelers (4) 80-54201-00
31 Main board (no case or wires) 80-54008-00
32 Packaging 80-54209-00
33 Power cord 80-54358-00
34
Reed switch *
80-54284-00
35 Thermistor (1 pc) 80-54006-00
36 Thermistor cover and pin 80-54237-00
37 Water line assembly 80-54357-00
38 Water valve assembly 80-54356-00
39 Wire harness, board 80-54359-00
40 Faceplate 115V 80-54523-00

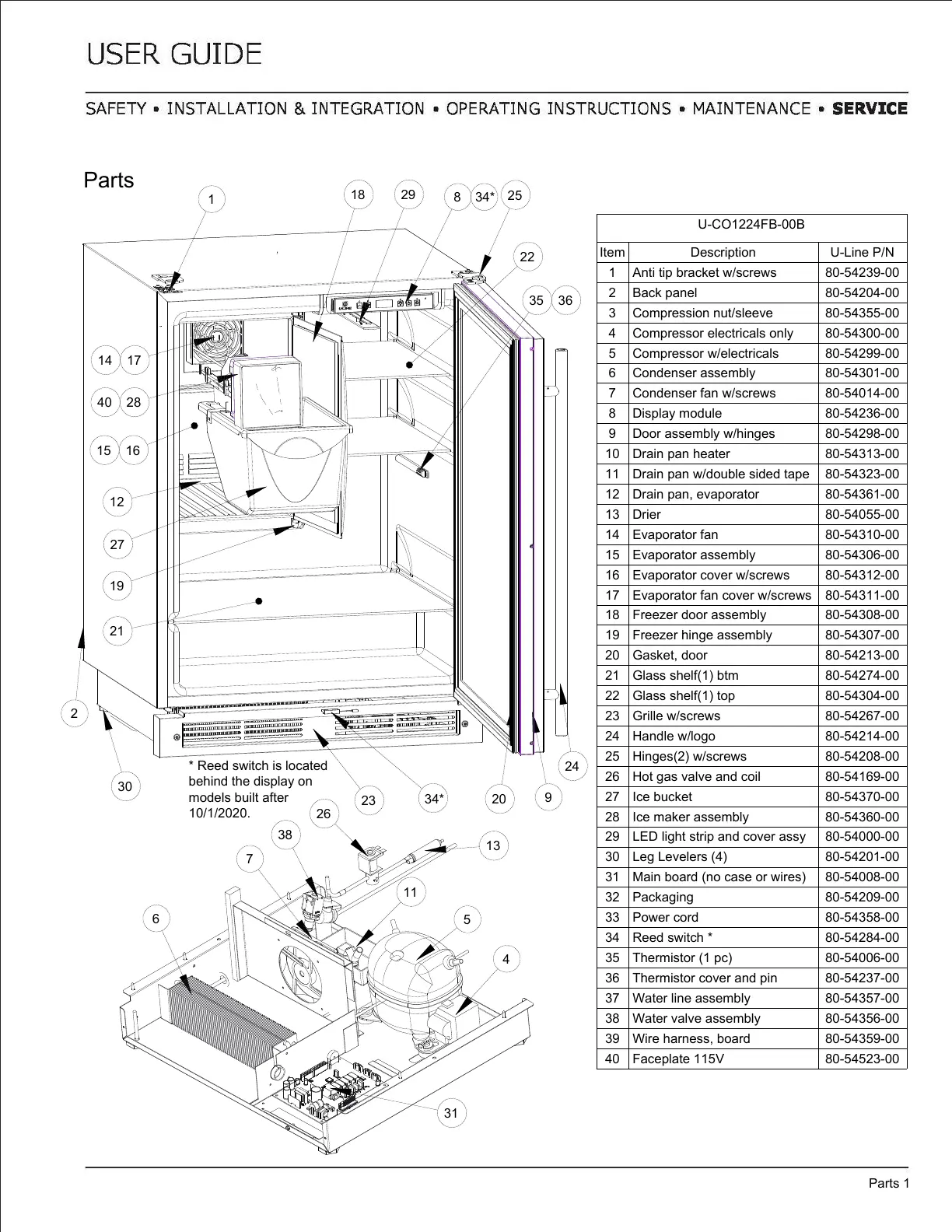

Parts
Parts 1
1
2
8
9
20
29
24
23
25
12
34*
21
22
14 17
15 16
18
19
35 36
27
40 28
30
4
5
6
7
11
13
38
26
31
* Reed switch is located
behind the display on
models built after
10/1/2020.
34*
36

U-Line U-CO1224FB-00B Specifications

General

Brand	U-Line
Model	U-CO1224FB-00B
Category	Refrigerator
Language	English
