USER GUIDE
Replace Ice Maker 1
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

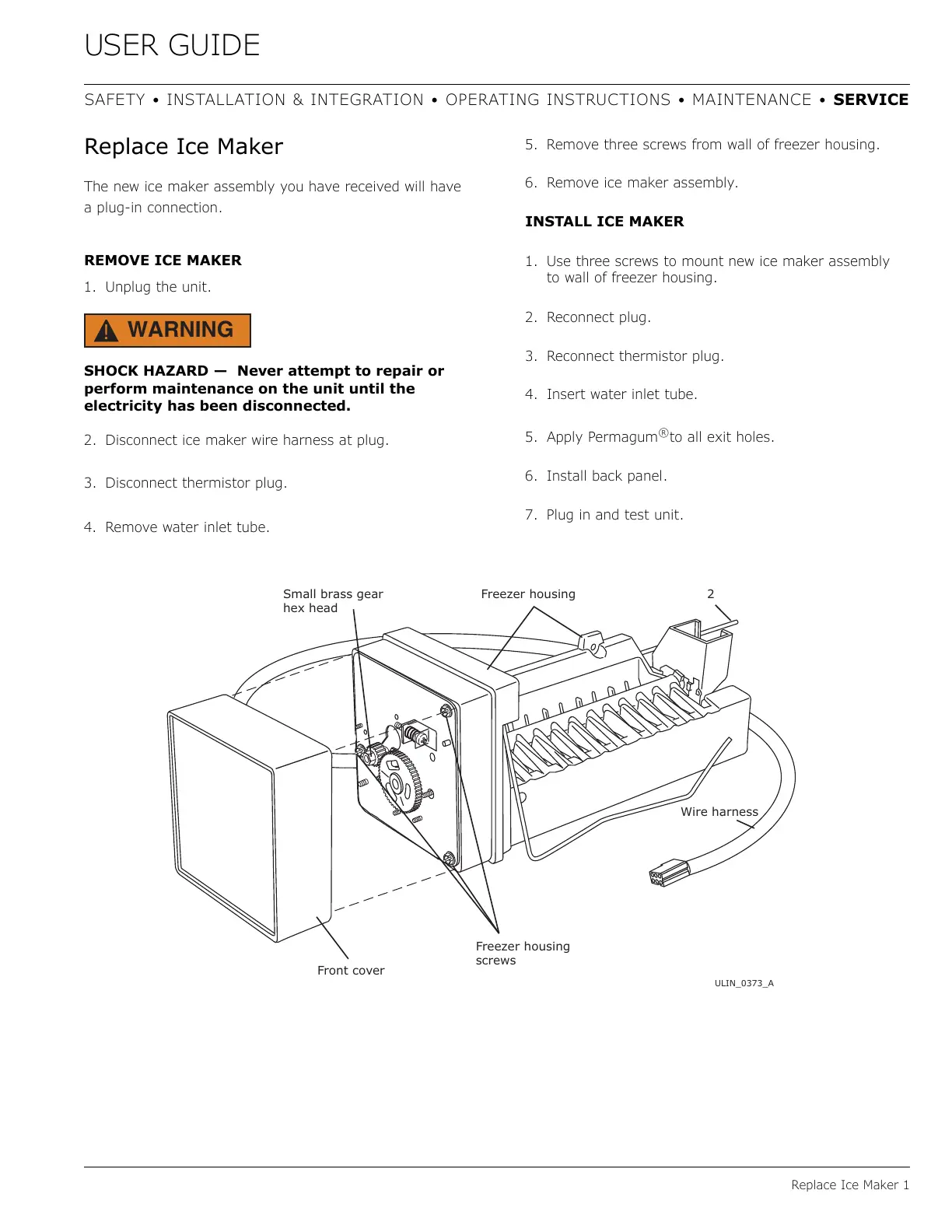

Replace Ice Maker
The new ice maker assembly you have received will have
a plug-in connection.
REMOVE ICE MAKER
1. Unplug the unit.
SHOCK HAZARD — Never attempt to repair or
perform maintenance on the unit until the
electricity has been disconnected.
2. Disconnect ice maker wire harness at plug.
3. Disconnect thermistor plug.
4. Remove water inlet tube.
5. Remove three screws from wall of freezer housing.
6. Remove ice maker assembly.
INSTALL ICE MAKER
1. Use three screws to mount new ice maker assembly
to wall of freezer housing.
2. Reconnect plug.
3. Reconnect thermistor plug.
4. Insert water inlet tube.
5. Apply Permagum
®
to all exit holes.
6. Install back panel.
7. Plug in and test unit.
Front cover
Freezer housingSmall brass gear
hex head
Wire harness
Freezer housing
screws
ULIN_0373_A
2
53
